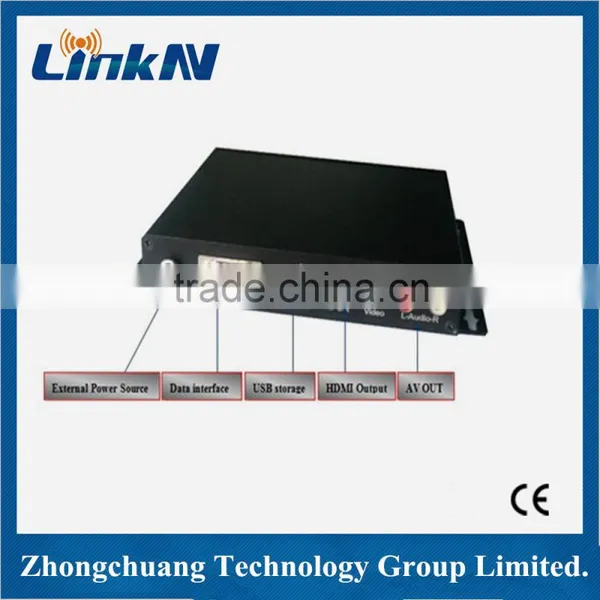

LinkAV-C200 can receive multiple different frequencies of transmitter audio signal, support HDMI and CVBS interface with external display and USB storage.
It can realize the av transmission between the transmitter and the mini receiver LinkAV-C200.
It has little weight and the size is only 179*128*29mm.Adopting the advanced foreign technology of diversity reception,to overcome the simulation technology and conventional modulation technology under multipath reflection image transmission, and keep real-time transmit high quality SD image under high speed mobile and NLOS conditions, particularly suitable for use in complex environment;
the video compression is H.264 standard,has features of high image quality,image clear, stable and smooth.Can be used for Public security, fire fighting,traffic warden,Civil air defense emergency, City administration, Monitoring of environment, Water conservation, flood prevention, Power and emergency, Railway emergency rescue, Maritime,Coastguard patrol,The customs border,Dock/Quay monitoring, Forest-fire prevention,Oil field, Military reconnaissance, TV transmit etc.
Technical Parameters:
Item |
Description |
Modulation type |
COFDM |
Output frequency |
46-860MHz; per 0.5MHz adjustable |
Working bandwidth |
1.25/2.5/6/7/8MHz adjustable |
Receive sensitivity |
-106dBm |
Video Output |
CVBS interface,SD Analog video output |
HDMI interface,HD Digital video output | |
Audio output |
BNC,Analog stereo output |
Video Compression |
MPEG-2 /H.264 |

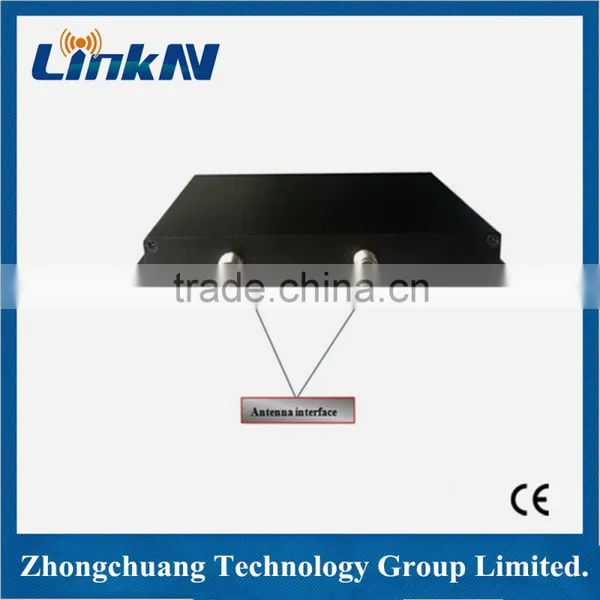

RF interface |
TNC,High performance dual channel diversity reception |
Encryption |
AES-128 bit |
Parameter Control |
Adjustable digital LED control panel,RS232 |
Power supply |
DC12V |
Working environment |
-10~70℃ |
Boundary Dimension |
179*128*29(mm) |
Our service:
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. we have 9 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
