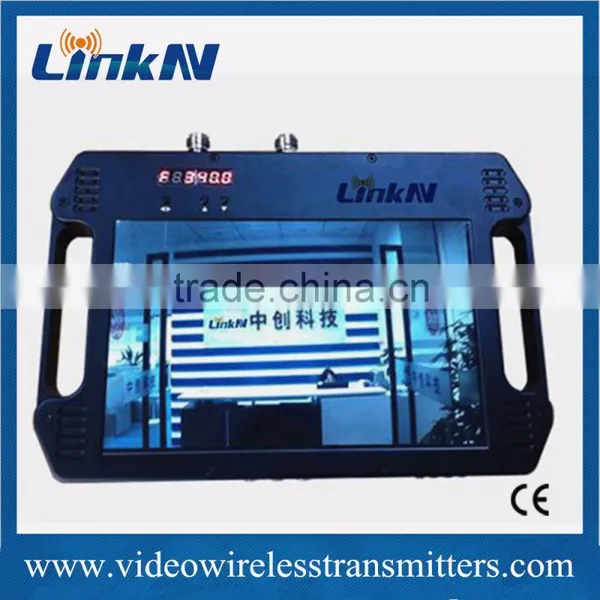

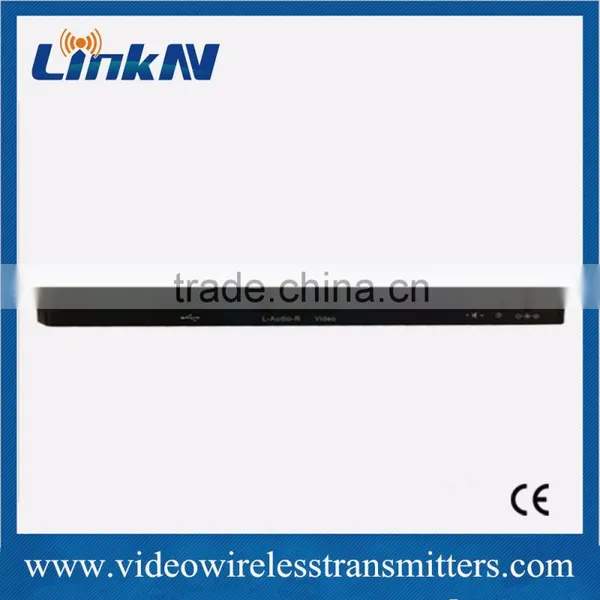

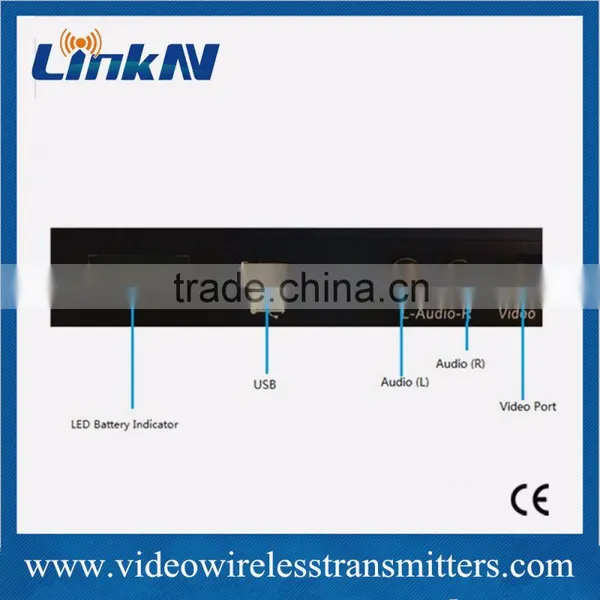

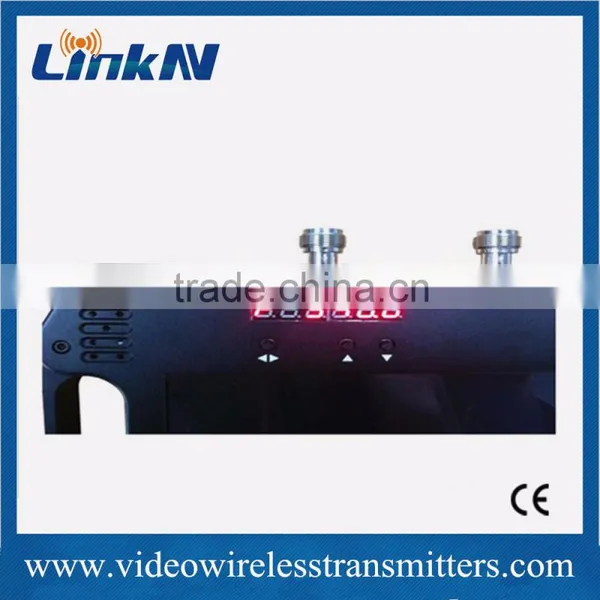

China Brand Mini Wireless Audio Video Transmitter Receiver with LCD Screen for realtime monitoring
1. High safety, being durable
2. With built-in 10.1" 1080P HD LCD Screen ;
3. Small, light and portable ;
4.COFDM modulation,H.264 decoding;
5.Center marker,screen marker(viewfinder)function;
6.Multicarrier double antenna diversity reception;
7.Support video audio transmitting synchronously;
LinkAV -C1000 Handheld Receiver is the small and light device newly developped this year. It has applied advanced carrier diversity , supports high-speed mobile transmission, non~line of sight (NLOS) transmission. With 10.1 inch HD display screen, the image quality can be up to 1080P. And it has a simple operating system with a perfect image display. External Display Screen (AV Port) can support video output. It is widely applied to security, civil air defense, civil defense, fire control, emergency rescue departments and forest fire prevention, transportation, customs, railways, oil fields, minings, water conservancy, electric power, finance, television stations broadcast relay, and other important departments.
Technical Parameters:
Item |
Description |
Modulation Type |
COFDM |
Working Frequency |
300-900MHz;(adjustable), per 0.5M |
RF Bandwidth |
2/2.5/4/8MHz(option) |
Sensitivity |
-106dBm |
Video Output |
HDMI display,External Display Screen: AV Output |
Video Compression |
MPEG-2,H.264 |
Audio Output |
3.5 mm headsets |
Forward Error Correction |
1/2,2/3,3/4,5/6,7/8 |
Parameter Control Method |
LED Control Panel |
USB |
External memory: U Flash Disk |
Encryption Method |
128 - bit AES (can set user’s password) |
Antenna Interface |
N female head*2 |
Display Screen Size |
10.1 inch |
Working Voltage |
DC12V |
Working Current |
1.5A |
Working Temperature |
-10~70℃ |
Boundary Dimensions |
300*200*30(mm) |
Weight |
2kg |
Battery,Charger,Antenna,Backbag,Fixed plate, Mounting bracker and RF cables etc. for optional.
In 2005 we founded our international Head Office in Shenzhen, China, and began offering our products worldwide in 2013. We produce Wireless Transmitters with high quality under very competitive price for 8 years in China.
LinkAV with cutting edge technology of Zhongchuang Technology Group Limited is a brand established recently to meet the demands of COFDM, TDD or 3G/4G wireless connection requirements.
In 2005 we founded our international Head Offce in Shenzhen, China, and began offering our products worldwide in 2013. Over NINE years of experience in the wireless communication sector has enabled LinkAV to develop world-class video transmission products.
LinkAV is developed based on protocols like Onvif and RTSP, which enables LinkAV to support over different brands like Dahua, Hikvision for a better integration with fiber and internet connections.
LinkAV now is working as a solid supplier for ZTE and dedicating our best to provide the world-class wireless video transmitters for UAV, mining, oil spill monitoring, etc, please contact us today for more information and a sample for testing first. Please follow up for how to become a distributor of LinkAV.
1. Do you accept OEM/ODM order?
Yes, we accept customized order according to your special requirements.
2. What is the MOQ for the customized order?
There is no MOQ, we can customized your product for 1sets.
3.How long for delivery?
As our products is customized, need 5-10 working days normally.
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. we have 9 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
