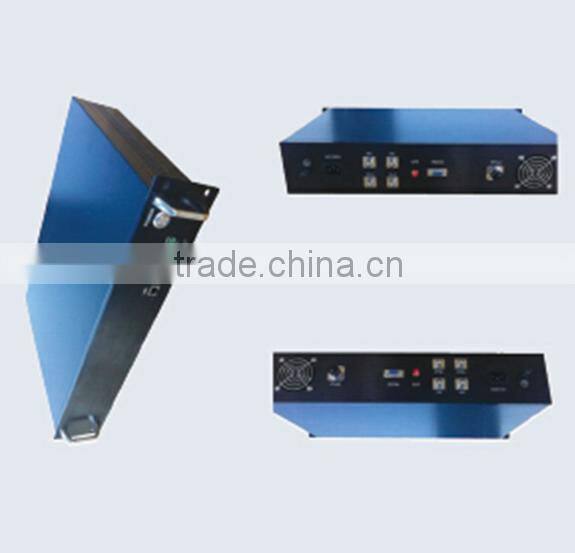

Help CenterLinkAV C331+R 2U COFDM AV Wireless 1080P High Definition Receiver
Related Products
-
C331+R Wireless Receiver for Video Transmission in High Speed Moving ConditionUS$ 1 - 4,000MOQ: 1 Piece -
C331+R COFDM 2U Robust Digital Vision Wireless ReceiverUS$ 1 - 4,000MOQ: 1 Piece
-
2U Vehicle Long Distance Transmission Wireless Audio Video ReceiverUS$ 1 - 4,000MOQ: 1 Piece
-
LinkAV C331+R 2U COFDM Rack Mountable Wireless AV Receiver With FilterUS$ 1 - 4,000MOQ: 1 Piece
-
1U Rack Mount Robust COFDM Video ReceiverUS$ 1 - 4,000MOQ: 1 Piece
LinkAV wireless transmission system advantages:
1. Long range transmission distance
2. Real-time transmission systems
3. Extremly short delay less than 500ms
4. Perfect image quality, bright colors and smooth image.
(Video demonstration could be provided on request)
Specifications:
1. Based on standard COFDM modulation technology
2. High-quality digital video processing and MPEG2/H.264 video coding and decoding
3. Very short delay of coding
4. High-speed mobile transmission
5. NLOS ( the non-line of sight ) transmission
Technical Parameters:
Modulation type |
COFDM QPSK (4QAM), 16QAM, 64QAM |
Receiving Sensitivity |
-106 dBm |
Working Frequency |
46~860 MHz (adjustable ) |
Video Output |
BNC, HDMI, SDI |
Audio Output |
BNC |
Video Decoding |
MPEG-2/ H.264 |
RE Interface |
N F head |
FEC (forward error correction ) |
1/2 2/3 3/4 7/8 |
Guard Interval |
1/32 1/16 1/8 1/4 |
Decryption Method |
AES 128 |
Parameter Contral |
Adjustable digital LED control panel |
Power Supply |
AC 220V |
Working Temperature |
-10~70°C |
Overall Dimension |
standard 2U |
Applications include:
- Government surveillance
- Law Enforcement
- Urban combat training with many multiple RF reflections
- Unmanned vehicles: UAV, UGV, USV
- Covert Surveillance
- Robots
- Portable microwave products
Our service:
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. We're professional manufacturer with 10 years of experience in wirelss video transmission, so we can provide you: high quality products,better product pre-sales and after-sales service,attractive price and shorter delivery time.
