Long Range COFDM Portable Wireless Video Receiver
Long range COFDM Portable Wireless Video Receiver
Product Features:

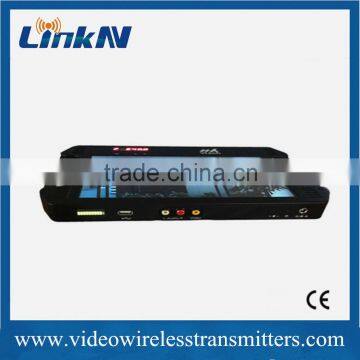

C1000 Handheld Receiver is the small and light device newly developed this year. It has
applied advanced carrier diversity, supports high-speed mobile transmission, NLOS
transmission,can work last 4 hours.
With 10.1 inch HD display screen, the video quality can be 1080P. And it has a simple
operating system with a perfect video display. External Display Screen (AV Port) can
support video output.
It is widely applied to security, civil air defense, civil defense, fire control, emergency
rescue departments and forest fire prevention, transportation, customs, railways, oil
fields, mining, water conservancy, electric power, finance, television stations broadcast
relay, and other important departments.
Technical Parameters:
| Transmission Characteristics | |
| Modulation Type | QPSK(4QAM), 16QAM, 64QAM |
| Working Frequency | 46-860 MHz ( adjustable 0.5M per step) |
| RF Bandwidth | 1.25/2.5/6/7/8MHz ( optional) |
| FEC(forward error correction) | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Receiving Sensitivity | -106 dBm |
| Data Characteristics | |

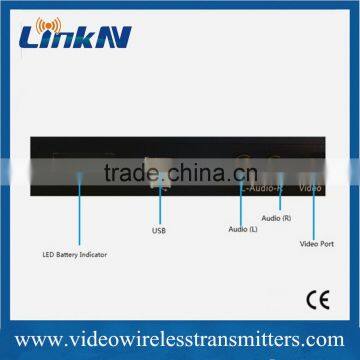

| Video Output | HDMI / AV |
| Video Decoding | MPEG-2/H.264 |
| Audio Output | BNC |
| RF Interface | N F head |
| Storage Interface | USB |

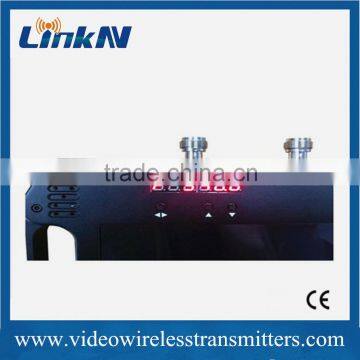

| Parameter Control Method | Using LED control panel |
| Encryption Method | 128 - bit AES (can set user’s password) |
| Electrical Characteristics | |
| Working Voltage | DC 12V |
| Working Current | 1.5 A |
| Power Consumption | ≤ 20W |
| Physical Characteristics | |
| Screen Size | 10.1 inches |
| Working Environment | -10~70℃ |
| Dimensions | 300 × 200 × 30 mm |
| Weight | 1.6 Kg |
Introduction
This product Small, light, use H.264 encoding scheme and COFDM digital modulation
mode, provide 720 * 576 high-definition video, great diffraction ability, support non-line
of sight transmission, can be put in brief case, can transmit the live image to the rear
people when secretly visit or obtain evidence.
It is mainly used in public security, procurator, law, security bureau, other departments,
etc.
