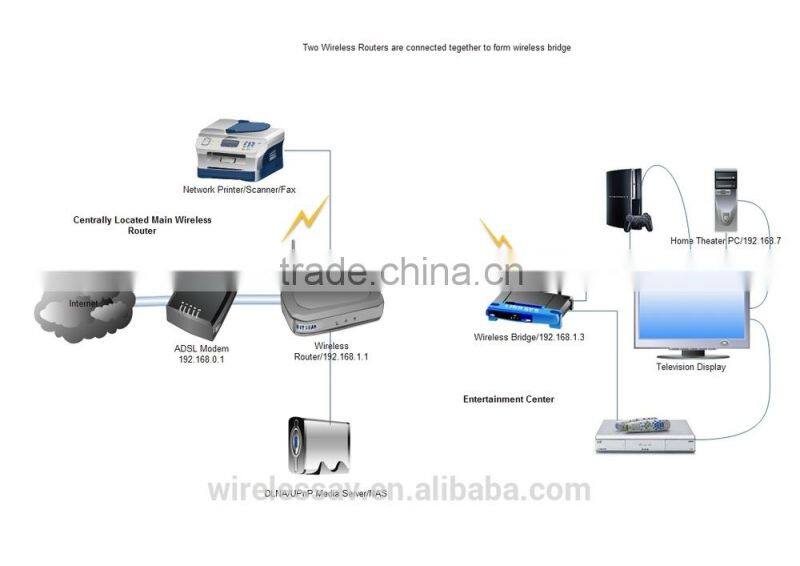

Help CenterWLAN 5.8ghz Wireless Router / Network Bridge for Video Transmission
Related Products
-
2.4Ghz Audio Video Transmitter With Windproof Waterproof DustproofNegotiableMOQ: 1 Piece -
5.8ghz Wirelesss AV Transmitter ReceiverNegotiableMOQ: 1 Piece
-
2.4Ghz Wireless Audio TransmitterNegotiableMOQ: 1 Piece
-
5.8ghz Wireless Video Transmitter Receiver Outdoors WaterpproofNegotiableMOQ: 1 Piece
-
5.8 GHz Long Way High Speed Wireless Data Transmitter and ReceiverNegotiableMOQ: 1 Piece
Product Feature:
l Excellent property: IEEE 802.11b/g/n industry standard,use MIMO,OFDM technology.
l Flexible network Combination: support AP WDS, station WDS, ap, station applications etc.
l Self-attributed TDMA Polling technique, superior Inter-Cell capacity, during the point-to-multipoint connection with high throughput and low-latency
l High speed of transmission: Up to 300Mbps transmission speed, up to 150Mbps practical data rates
l Bandwidth: User can manage each channel’s bandwidth to 50MHz,10MHz ,20MHz ,40MHz by software. Can also optimize the efficiency of frequency spots and its wireless links. Therefore, it is specially beneficial for huge scale of video data transmission.
l Spectrum scanning software: can scan 2.4GHz whole frequency spectrum and give signal strength, specific frequency spots, channels that can make testing adjustment easier.
l Multiplesecurity measures: support WEP, WPA, WAP2 and 802.1x and AES/TKIP International Standard.
l Bandwidth management: bandwidth control has units of 1K with formality QOS guarantee.
l Antenna alignment: the signal is automatic on Web interfaces which makes engineering construction and testing convenient.
l Bandwidth test: provide transmitting and receiving bandwidth test without third party’s testing software, easy for engineering installation and testing.
l IP software tool: when forget the wireless IP address, can use software tool (IP Config) to search for IP address.
l WEB management in English and Chinese, also support Telnet at the same time, user-friendly surveillance management. Support archive import/export and software upgrade.
l Network management: remote WEB management or SNMP center management.
l With adorable design for windproof, waterproof, heatproof, dustproof ,vandal-proof and cooling purposes.
Technical Parameters | |
VM5800N2-E | |
Radio Frequency | |
Frequency&Bandwidth |
5.1~5.8GHz ;5MHz,10MHz,20MHz,40MHz |
RF Powder Output |
23dBm |
Sensitivity |
270M:-70dBm@10% PER;130M: -71dBm@10% PER; 108M:-72dBm@10% PER;54M:-73dBm@10% PER; 11M:-85dBm@8% PER;6M:-88dBm@10% PER; 1M:-90dBm@8% PER |
Modulation Mode |
DBPSK,DQPSK,CCK,OFDM,16-QAM,64-QAM |
Date and working parameters | |
Auto rate selection |
802.11n:6.5-300Mbps,802.11b:11/5.5/2/1Mbps 802.11g:108/54/48/36/24/18/12/9/6Mbps |
Standard |
IEEE802.11n, IEEE802.11a,IEEE802.11g,IEEE802.11b,IEEE 802.3u,IEEE 802.3af |
Supported protocol |
CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5l |
Management | |
WEB Management |
Support |
SNMP MIB |
Support |
Telnet |
Support |
Security | |
MAC Address Control |
Support |
Encryption |
WEP 64/128 bits,WPA,WPA2,802.1x |
Hardware | |
LAN/WAN |
Single 10/100 BaseT RJ45 |
Power |
24V,@ 1.7A,(PoE) |
Environment and physical properties | |
Working Environment |
-30~65℃ |
Storage Temperature |
-50~80℃ |
≤95%(non-coagulated)) |
|
Antenna |
N,50Ω( External antenna) |
Weight |
2.0kg including antenna |
Dimensions |
260*248*104(MM) |
Installation |
U shape Bracket Pole, Pole Diameter:ψ40~ψ45mm |
