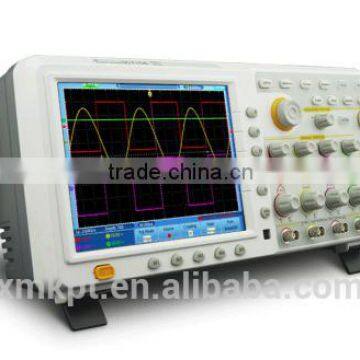

Kangput TDS Series Touch Screen Digital Storage Oscilloscope
>>Skype:kangput2;
Applications:
electronic circuit debugging circuit testing design and manufacture
education and training automobile maintenance and testing
Performance Specifications
Model |
TDS8104 |
|
Bandwidth |
100MHz |
|
Channel |
4 |
|
Sample Rate |
2GS/s |
|
Waveform Capture Rate |
50,000 wfms/s |
|
Display |
8" color LCD |
|
Input Coupling |
DC, AC, and GND |
|
Input Impedance |
1MΩ ± 2%, in parallel with 10pF ± 5pF ; 50Ω ± 1% |
|
Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
|
Max Input Voltage |
1MΩ input impedance : 400V (PK - PK) (DC + AC, PK - PK) ; 50Ω input impedance : 5V (PK - PK) (DC + AC, PK - PK) |
|
Channel Isolation |
50Hz:100:1 ; 10MHz:40:1 |
|
Interpolation |
sin(x)/x |
|
Record Length |
7.6M |
|
Horizontal Scale (s/div) |
2ns/div - 100s/div, step by 1 - 2 - 5 |
|
|
Interval (T) Accuracy (full bandwidth) |
Single : ±(1 interval time + 100ppm × reading + 0.6ns), Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns) |
|
Vertical Resolution (A/D) |
8 bits (4 channels simultaneously) |
|
Vertical Sensitivity |
2mV/div - 10V/div (at input) |
|
Analog Bandwidth |
100MHz |
|
LF Respond (AC, -3dB) |
≥5Hz (at input, AC coupling, -3dB) |
|
Rise Time |
≤3.5ns |
|
DC Accuracy |
±3% |
|
Trigger Type |
Edge, Pulse, Video, Slope |
|
Trigger Mode |
Auto, Normal, Single |
|
Trigger Level Range |
±6 division from the screen center |
|
Trigger level Accuracy (typical) |
±0.3 division |
|
Line / Field Frequency (video) |
NTSC, PAL, and SECAM standard |
|
Automatic Measurement |
Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty |
|
Waveform Math |
+, -, ×, ÷, invert, FFT |
|
Waveform Storage |
4 reference waveforms |
|
Lissajous Figure |
Bandwidth |
full Bandwidth |
Phase Difference |
±3 degrees |
|
Cursor Measurement |
V, and T between cursors |
|
Communication Port |

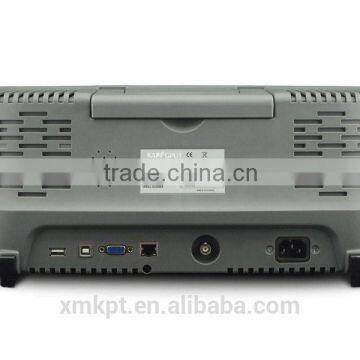

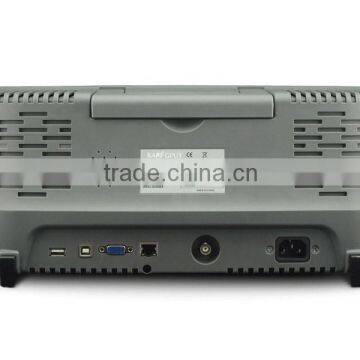

USB host, USB device, VGA, LAN |
|
Power Supply |
100 - 240 V AC, 50/60Hz, CAT II |
|
Dimension (W×H×D) |
380 × 180 × 115 (mm) |
|
Weight (without package) |
1.5 kg |
|

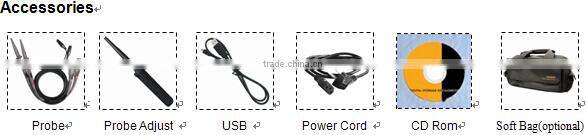

Features:
Max 200MHz bandwidth, up to 2GS/s realtime sample rate
7.6M record length
50,000 wfms/s waveform capture rate
waveform zooming (horizontal / vertical), and saving
FFT points (length, and resolution variable)
multi-window extension
user-friendly voice warning
8 inch 800 x 600 pixels high def LCD
multi- communication interface : USB, VGA, and LAN
Your Success is Our Business!!
