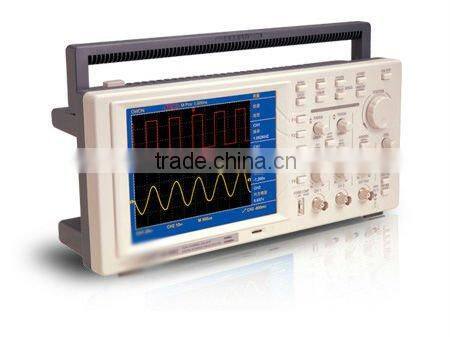

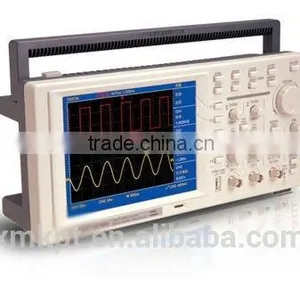

Portable 7.8 Inch STN Digital Storage Oscilloscope (with 25M)
7.8 "STN digital storage oscilloscope (with 25M)
model:
Model |
KangPut EDU5022S 7.8 "STN digital storage oscilloscope (with 25M) |
||
Function |
7.8 "STN popular type of digital storage oscilloscope; With 25M bandwidth, 100M S/s realtime sample rate on each and dual channels storage ;large screen color STN LCD display, applied to basic education needs more water to meet the production line of electronic detection. Automatically trigger a variety show that the stability of any information wave. On the screen shows a substantial value or more of each other coverage of the wave. |
||
Specification |
Bandwidth |
25MHz |
|
Real-time sampling rate |
100MS/s |
||
Rise time |
≤17.5ns |
||
Channels |
2+External |
||
Record length |
5K points per channel |
||
Time base scope |
5ns/div -5s/div |
||
Vertical sensitivity |
5mV/div -5V/div |
||
|
|
|
|
Trigger modes |
Auto,Normal,Single,Edge,Video,Alternate |
||
Scope measurements |
2 Cursor+5 Automatic |
||
Max Input Voltage |
300V (PK-PK)CAT II |
||
Input Coupling |
AC,DC |
||
Input Impedance |
1MΩ±2% in parallel with 20pF±5 pF |
||
Probe attenuation factors |
1X,10X,100X,1000X |
||
Vertical resolution |
8 bit |
||
Time Base Accuracy |
100ppm |
||
Memory for screen and set up |
4 waveforms, 4 settings |
||
Other |
Power supply |
100-240 V AC,50Hz-60 Hz,CAT II |
|
PC interface |
RS232 cable or USB cable |
||
Display type |
7.8inch color STN LCD |
||
Display Resolution |
640 ×480 |
||
Dimension |
350mm × 157mm × 120mm |
||
Weight |
1kg |
||
