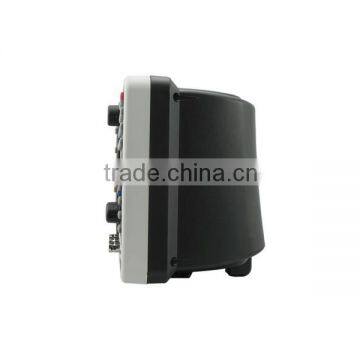

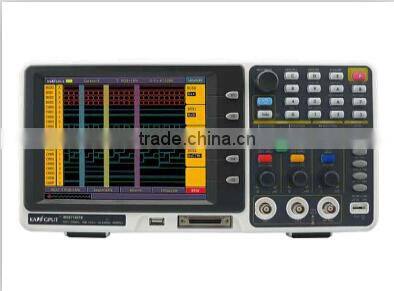

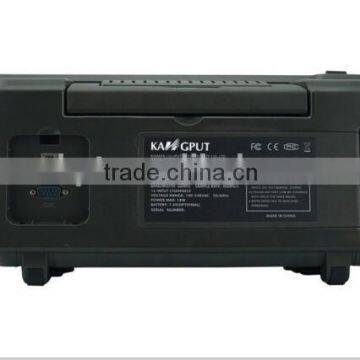

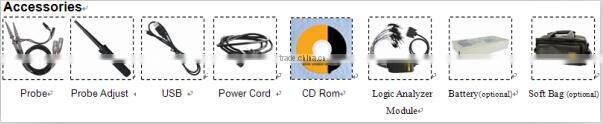

Kangput MSO Series Mixed LA - Oscilloscope
Applications:
design and debug circuit function test identified signals logic information
education & training mixed signal circuit test
Performance Specifications
Model |
MSO8202T |
|
Bandwidth |
200MHz |
|
Sample Rate (real time) |
2GS/s |
|
Rise Time |
≤1.7ns |
|
Display |
8.0'' color LCD , TFT screen, 640 × 480 pixels |
|
Channel |
dual + external trigger |
|
Horizontal Scale (s/div) |
1ns/div~100s/div, step by 1~2~5 |
|
DC Accuracy (average) |
average>16 : ±(3% reading + 0.05div) for V |
|
Vertical Sensitivity |
2mV/div - 10V/div |
|
DC Gain Accuracy |
±3% |
|
Vertical Resolution (A/D) |
8 bits (2 channels simultaneously) |
|
Interpolation |
sin (x) / x |
|
Max Input Voltage |
400V (DC + AC, PK - PK ) |
|
Probe Attenuation Factor |
1X,10X,100X,1000X |
|
Trigger Mode |
Edge, Video, Alternate, Pulse, Slope |
|
Acquisition Mode |
Normal, Peak Detect, and Average |
|
Record Length |
max 2M points |
|
Waveform Storage |
4 waveforms |
|
Automatic Measurement |
Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B, Delay A→B |
|
Waveform Math |
+, -, ×, ÷, invert, FFT |
|
Power Supply |
100 - 240V AC, 50Hz / 60Hz, CATⅡ |
|
|
Lissajous Figure |
Bandwidth |
200MHz |
Phase Difference |
±3 degrees |
|
Communication Interface |
USB host, and USB device |
|
Fuse |
1A, T class, 250V |
|
Dimensions (W × H × D) |
370 × 180 × 120 (mm) |
|
Weight (without package) |
2.20 kg |
|
<Logic Analyzer> Performance Specifications
Model |
MSO8202T |
Sample Rate (real time) |
20S/s - 2GS/s |
Bandwidth |
200MHz |
Channel |
16 |
Record Length |
max 4M each channel |
Input Impedance |
660KΩ ± 5%, in parallel with 15 ± 5pF |
Trigger Mode |
Edge, Bus, State, Data Alignment, Data Width, Distributed Queue |
Trigger Position Setting |
Pre-trigger, Mid-trigger, and Re-trigger |
Threshold Voltage |
±6V (4 settings) |
Input Signal Range |
±30V |
Data Search |
available |
Data System |
binary, decimal, hex |
Digital Filter |
0, 1, 2 optional |
Setting Storage |
10 settings |
USB Flash Disk Storage |
available |
Features:
2 in 1 (DSO + LA); 8 inch LCD color display; Support USB for data transmission to PC ;USB data transmission supported; 20 group automatic measurement options
Digital Storage Oscilloscope
Bandwidth : 60MHz ~ 200MHz
Sample rate : up to 2GS/s
Auto-scale function
FFT
Logic Analyzer
Bandwidth : 100MHz ~ 200MHz
Sample rate : max 1GS/s
16 input channels
