Handheld Digital Storage Oscilloscope HDS1022M-N

Name: Handheld Digital Storage Oscilloscope HDS1022M-N
Brand: KANGPUT
SKU: 100927093

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

KANGPUT

Model Number:

HDS1022M-N

Xiamen KANGPUT Electronics Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

HK/Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name KANGPUT

Model Number HDS1022M-N

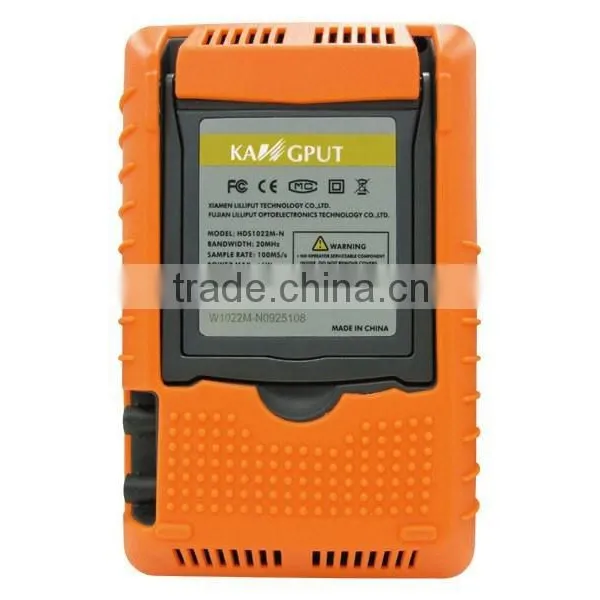

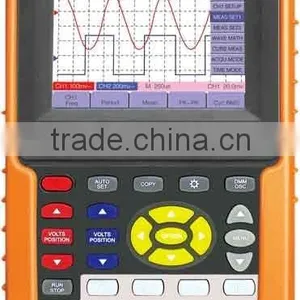

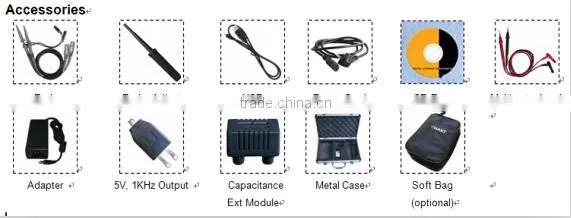

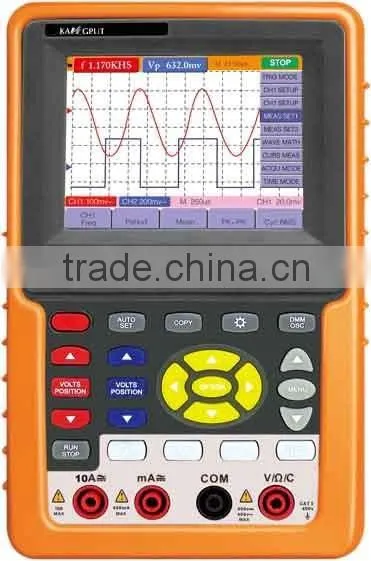

Kangput HDS-N Series Handheld Digital Storage Oscilloscope

Applications:

electronic circuit debugging circuit testing design and manufacture

education and training automobile maintenance and testing

Performance Specifications

Model		HDS1022M-N
Bandwidth		20MHz
Sample Rate (real time )		100MS/s
Horizontal Scale (s/div)		5ns/div~100s/div, step by 1~2.5~5
Rise Time (at input, typical)		≤ 17.5ns
Display		3.7 inch color display with TFT panel (640 × 480 pixels, 65535 colors)
Channel		dual
Input Impedance		1MΩ ± 2%, in parallel with 20pF ± 5pF
Record Length		max 6K points on each channel
Interpolation		sin (x) / x
Probe Attenuation Factor		1X,10X,100X,1000X
Input Coupling		DC, AC, and GND
DC Accuracy (average)		average >16 : ±(5% reading + 0.05div) for V
Vertical Sensitivity		5mV/div~5V/div (at input)
Vertical Resolution (A/D)		8 bits (2 channels simultaneously )
Max Input Voltage		400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II
Trigger Type		Edge, Video, Alternate
Trigger Mode		Auto, Normal, Single
Trigger Level		±6 divisions from screen center
Acquisition Mode		Sample, Peak Detect, and Average
DC Gain Accuracy		±3%
Waveform Math		+, -, ×, ÷, invert, FFT
Waveform Storage		4 waveforms
Lissajous Figure	Bandwidth	full bandwidth
	Phase Difference	±3 degrees
Communication Interface		USB
Power Supply		100V-240V AC, 50/60Hz
Li-ion Battery		7.4V, 6 hours operation
Dimensions (W × H × D)		180 × 115 × 40 (mm)
Weight (without package)		645 g

Multimeter Specifications

Full Scale Reading	3 .3/4digits(max4000 count)	Diode	0V-1.5V
Input Impedance	10MΩ	On/Off Test	<50(+-30)beeping
Voltage	VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz; max input : AC 400V (virtual value)
Current	DC : 40mA, 400mA : ±(1.5% ± 1 digit), 20A : ±(3% ± 3 digits) AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 20A : ±(5% ± 3 digits)
Impedance	400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)
Capacitance	51.2nF~100uF : ±(3% ± 3 digit)
