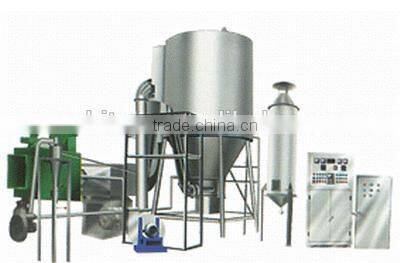

Niro Spray Dryer

niro spray dryer

Descriptions of niro spray dryer:

 The spray drying is the technology widest used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing the powder or particle solid products from the materials, such as: solution, emulsion, soliquoid and pumpable paste states. For this reason, when the particle size and distribution of the final products, their residual water contents, the stacking density and the particle shape must meet the precision standard, the spray drying is one of the most desired technologies

Features

Key Features of niro spray dryer:

 At a high speed of drying, after the spraying of the material liquid, the surface area of the material will be increased greatly. In the hot-air flow, 95%~98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.
 This is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, mobility, dissolving capacity. And the final products are high in their purity and good in their quality. The production procedures are simple and the operation and control are easy. The liquid with the moisture contents 40~60% (for special materials, the contents may reach 90%.) can be dried into the powder or particle products once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.

 Advantages of niro spray dryer:

1.Two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process . PLC controller, LCD touch panel control fascia with flow path of system. Using proface touchable interface display operation, operator can control temperature, airflow volume, air pressure,pump speed and de-blocker frequency.

2.Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alk li, high temperature. It can work in a no-pollution and stable environment, and the whole process can be inspected. All the spare parts are easy to install and wash.

3.Made of SUS-316 Stainless steel. Easy operating.

4.To assure accurate temperature control and easy parameter adjusting, YC-015 applies PID.

5.A filter has been equipped to the inlet unit to prevent the sample from contamination .

6.The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution.. To make sure the process conducted steady and smoothly, magnetic agitator is optional to make the solution well mixed.

7.Narrow size distribution of particles.

8.Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.

9.The air compressor is no oil and don’t pollute compress air. The power from receiving tank has a good flow. The sound is low than 60db, and following the GMP understands.

10.Supplied complete and ready for most spray drying applications.

11.Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.

12.Equipped with air filter to remove and collect fine particle s in exhausted air.

Applications of niro spray dryer:

   Spray drying can be used in a wide range of applications where the production of a free-flowing powder sample is required. This technique has successfully processed materials in the following areas:
Beverages • Flavours and Colourings • Milk and Egg Products • Plant and Vegetable Extracts • Pharmaceuticals • Heat Sensitive Materials • Plastics • Polymers and Resins • Perfumes • Ceramics and Advanced Materials •
Soaps and Detergents • Blood • Dyestuffs • Foodstuffs • Adhesives • Oxides • Textiles • Bones, Teeth and Tooth Amalgam and many others. Most solutions and suspensions can be spray dried providing that the resulting product has the characteristics of a solid material.
