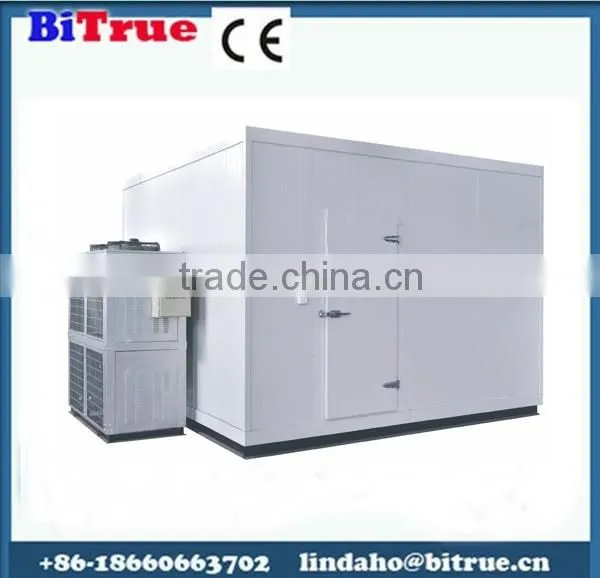

Latest and high quality cold room
Descriptions of cold room:
The main equipments and materials:
1.Refrigeration system:
a.Compressor: Bitzer, Copeland etc for choice,
b. Condenser units: water cooled, air cooler or water and air cooled for choice.
c.Evaporator: air cooler and grid evaporator for choice.
2.Electric system: Siemens and Schneider electric components or the other brand for choice.
3.Insulation panel, cold store panels:
a. Material: polyurethane (PU), metal sheet.
b.Density of PU: 38~40 kg/m3, 40~42kg/m3, 42~45kg/m3 for choice,
c. Metal sheet: painted steel sheet, stainless steel sheet, aluminium steel sheet or mixed together for choice.
d.Thickness of panel: 75mm, 100mm, 110mm, 150mm and 200mm for choice.
Cold store door:
a.Sliding door and swing door for choice,
b. Sliding door: manual opened, automatic opened for choice.
|
Item No.
|
Product Name | Specification |
| R095-1 | 10m³ Refrigerator Cold Room |
Outside Dimension:2*2*2.2m
Inside Dimension:1.8*1.8*2m
Temperature:0~10°C
Volume:10m³
Voltage: 220V
Insulation Panel:33.44sq.m/75mm
Cooling System: 2HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
|
| R095-2 | 20m³ Refrigerator Cold Room |
Outside Dimension:3.0*2.7*2.5m
Inside Dimension:2.8*2.5*2.2m
Temperature:0~10°C
Volume:20m³
Voltage: 220V
Insulation Panel:53.04sq.m/75mm
Cooling System: 2HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
|
| R095-3 | 30m³ Refrigerator Cold Room |
Outside Dimension:4*3*2.5m
Inside Dimension:2.8*2.8*2.2m
Temperature:0~10°C
Volume:30m³
Voltage: 220V
Insulation Panel:70sq.m/75mm
Cooling System: 2HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
|
| R095-4 | 40m³ Refrigerator Cold Room |
Outside Dimension:4*4*2.5m
Inside Dimension:3.8*2.5*2.2m
Temperature:0~10°C
Volume:40m³
Voltage:380V
Insulation Panel:85.04sq.m/75mm
Cooling System: 3HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
|
| R095-5 | 50m³ Refrigerator Cold Room |
Outside Dimension:5*4*2.5m
Inside Dimension:4.8*2.5*2.2m
Temperature:0~10°C
Volume:50m³
Voltage: 380V
Insulation Panel:85.04sq.m/75mm
Cooling System:4HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
|
| R095-6 | 60m³ Refrigerator Cold Room |
Outside Dimension:6*4*2.5m
Inside Dimension:5.8*2.5*2.2m
Temperature:0~10°C
Volume:60m³
Voltage: 380V
Insulation Panel:85.04sq.m/75mm
Cooling System:5HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
|
| R095-7 | 70m³ Refrigerator Cold Room | Outside Dimension:5.6*5*2.5m |
| R095-8 | 80m³ Refrigerator Cold Room | Outside Dimension:6.4*5*2.5m Inside Dimension:6.2*4.8*2.2m Temperature:0~10°C Volume:80m³ Voltage:380V Insulation Panel:85.04sq.m/75mm Cooling System:5HP EMERSON Copeland Door Size:0.8*1.8m Adaptable Condition:Normal Temperature |
| R095-9 | 90m³ Refrigerator Cold Room | Outside Dimension:6*6*2.5m Inside Dimension:5.8*5.8*2.2m Temperature:0~10°C Volume:90m³ Voltage:380V Insulation Panel:85.04sq.m/75mm Cooling System:6HP EMERSON Copeland Door Size:0.8*1.8m Adaptable Condition:Normal Temperature |
| R095-10 | 10m³ Freezer Cold Room | Outside Dimension:2*2*2.2m Inside Dimension:1.8*1.8*2m Temperature:-18°C Volume:10m³ Voltage: 220V Insulation Panel:33.44sq.m/100mm Cooling System: 2HP EMERSON Copeland Door Size:0.8*1.8m Adaptable Condition:Normal Temperature |
| R095-11 | 20m³ Freezer Cold Room | Outside Dimension:3.0*2.7*2.5m Inside Dimension:2.8*2.5*2.2m Temperature:-18°C Volume:20m³ Voltage:380V Insulation Panel:53.04sq.m/100mm Cooling System: 3HP EMERSON Copeland Door Size:0.8*1.8m Adaptable Condition:Normal Temperature |
| R095-12 | 40m³ Freezer Cold Room | Outside Dimension:4*3*2.5m Inside Dimension:2.8*2.8*2.2m Temperature:-18°C Volume:30m³ Voltage:380V Insulation Panel:70sq.m/100mm Cooling System:4HP EMERSON Copeland Door Size:0.8*1.8m Adaptable Condition:Normal Temperature |
| R095-13 | 50m³ Freezer Cold Room | Outside Dimension:4*4*2.5m Inside Dimension:3.8*2.5*2.2m Temperature:-18°C Volume:40m³ Voltage:380V Insulation Panel:85.04sq.m/100mm Cooling System: 5HP EMERSON Copeland Door Size:0.8*1.8m Adaptable Condition:Normal Temperature |
| R095-14 | 50m³ Freezer Cold Room | Outside Dimension:5*4*2.5m Inside Dimension:4.8*2.5*2.2m Temperature:-18°C Volume:50m³ Voltage:380V Insulation Panel:85.04sq.m/100mm Cooling System:6HP EMERSON Copeland Door Size:0.8*1.8m Adaptable Condition:Normal Temperature |
| R095-15 | 60m³ Freezer Cold Room | Outside Dimension:6*4*2.5m Inside Dimension:5.8*2.5*2.2m Temperature:-18°C Volume:60m³ Voltage:380V Insulation Panel:85.04sq.m/100mm Cooling System:8HP EMERSON Copeland Door Size:0.8*1.8m Adaptable Condition:Normal Temperature |
| R095-16 | 70m³ Freezer Cold Room | Outside Dimension:5.6*5*2.5m Inside Dimension:5.4*4.8*2.2m Temperature:-18°C Volume:70m³ Voltage:380V Insulation Panel:85.04sq.m/100mm Cooling System:8HP EMERSON Copeland Door Size:0.8*1.8m Adaptable Condition:Normal Temperature |
| R095-17 | 80m³ Freezer Cold Room | Outside Dimension:6.4*5*2.5m Inside Dimension:6.2*4.8*2.2m Temperature:-18°C Volume:80m³ Voltage:380V Insulation Panel:85.04sq.m/100mm Cooling System:10HP EMERSON Copeland Door Size:0.8*1.8m Adaptable Condition:Normal Temperature |
| R095-18 | 90m³ Freezer Cold Room | Outside Dimension:6*6*2.5m Inside Dimension:5.8*5.8*2.2m Temperature:-18°C Volume:90m³ Voltage:380V Insulation Panel:85.04sq.m/100mm Cooling System:12HP EMERSON Copeland Door Size:0.8*1.8m Adaptable Condition:Normal Temperature |

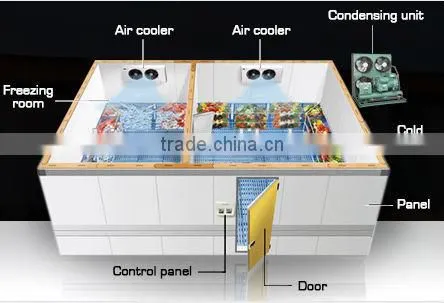

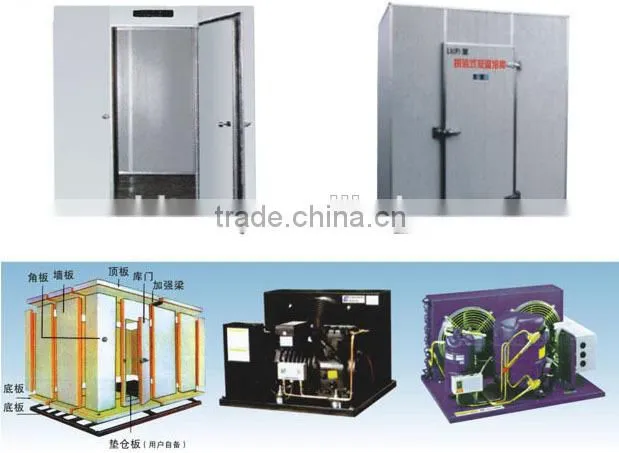

The cooling room structure and its main components:
Details:

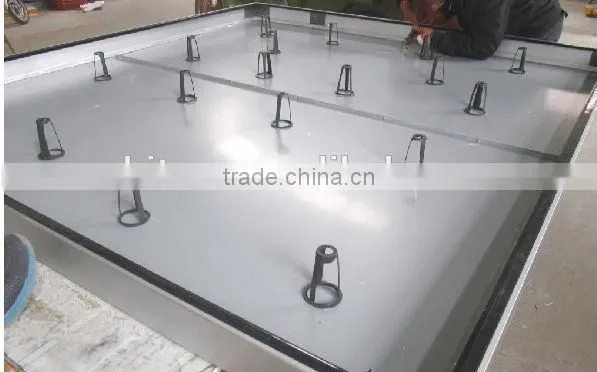

1. Thermal PU insulation panels
1). Floorboard:
It has the fixed length, width and thickness and can be customized. The high and medium cold rooms require 10cm thick board. The low and freeze cold rooms need 12cm or 15cm board.
2).Foam materials sprayed with PU:
The materials are directly sprayed on the warehouse to form PU plate that does not absorb water and has good thermal insulation property. But the cost is higher.
3).Foam materials sprayed with PPOB:
The materials are directly sprayed on the warehouse to form PPOB plate that absorbs water and has poor thermal insulation property. But the cost is lower.
4).When the heat insulation materials get damp, their heat insulation property lowers. Hence damp-proof course should be added to both sides of the heat insulation plate. The damp-proof course is made of asphalt, linoleum, plastic coating, plastic film or metal plate.
2. The refrigeration system
1).Compressor (the most critical part):
Generally, the small cold room uses the closed compressor. The medium and large cold rooms adopt semi-closed compressor.
2).Evaporator:
In general, the high temperature cold room uses fan as evaporator. The fan features rapid cooling but it causes moisture loss easily. The medium and low cold rooms used seamless steel tube evaporator, which is characterized by good constant temperature effect and timely cooling.
3).Condenser:
The condenser has cooling modes of air cooling, water cooling and air and water cooling. The air cooling is used for the small cold room and the water cooling for all kinds of refrigeration systems.

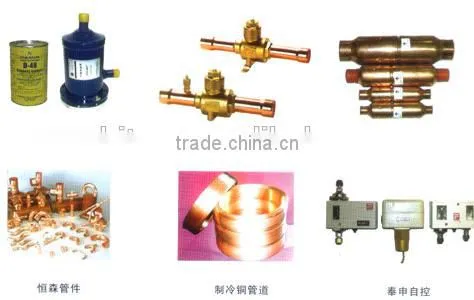

3. The other spare parts components:
The temperature control machine, door lock, hinges, handles, etc.

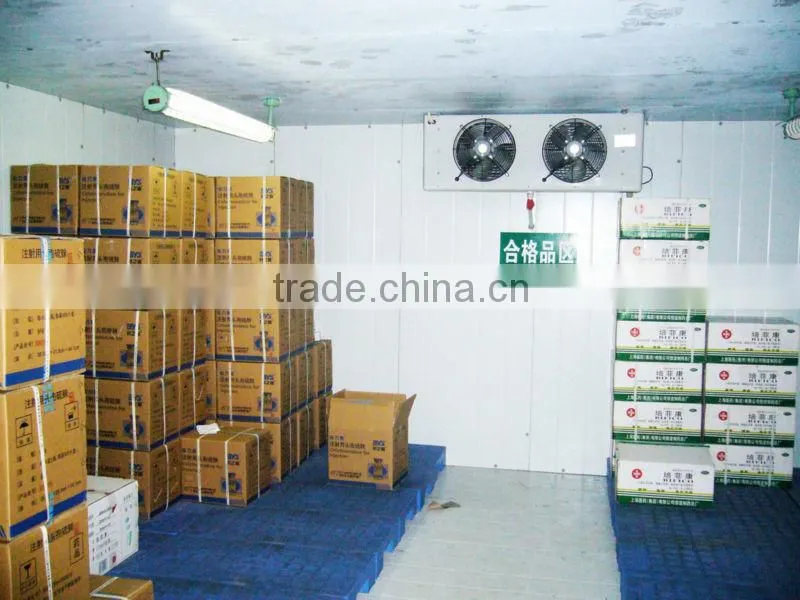

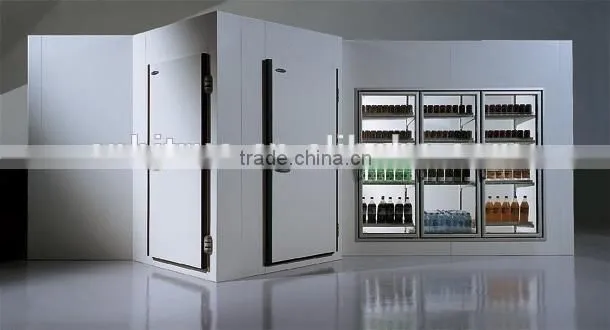

The cooling room we did:
