Hot Selling high efficiency ice block machine
- 100 Set / Sets per Month
- qingdao
- T/T
- New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
- New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 1-20Ton/day | Place of Origin: | Shandong, China |
Brand Name: | Bitrue | Model Number: | BT2/5/10/20T | Ice Shape: | Ice Block |
Voltage: | 380v | Power(W): | 15kw | Dimension(L*W*H): | Demands |
Weight: | 1500kg | Certification: | CE | Warranty: | 1year |
After-sales Service Provided: | Overseas service center available |
Product Description

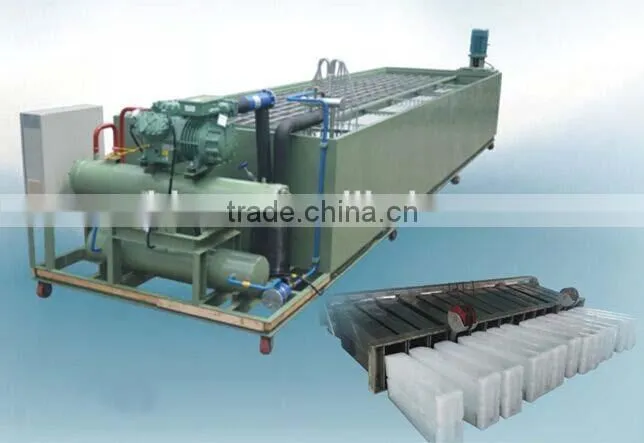

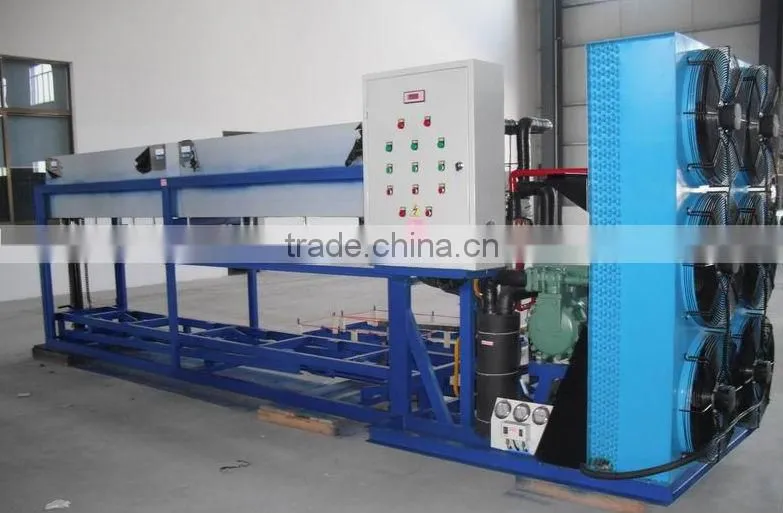

Hot Selling high efficiency ice block machine

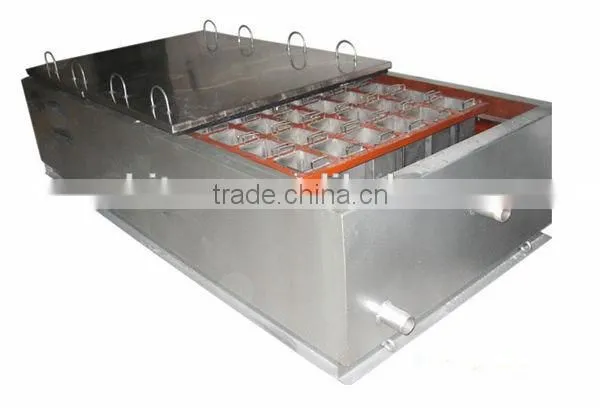

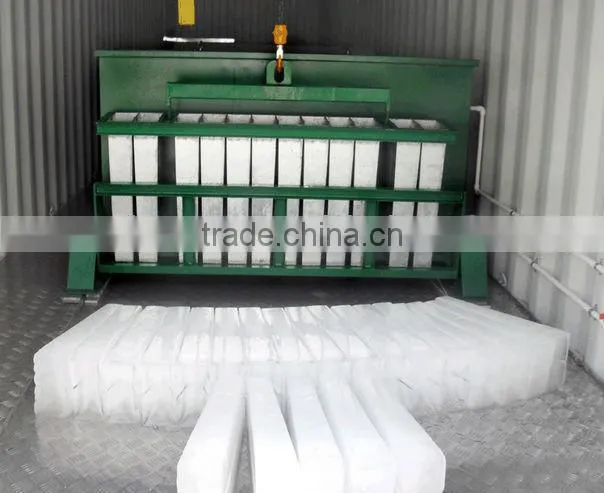

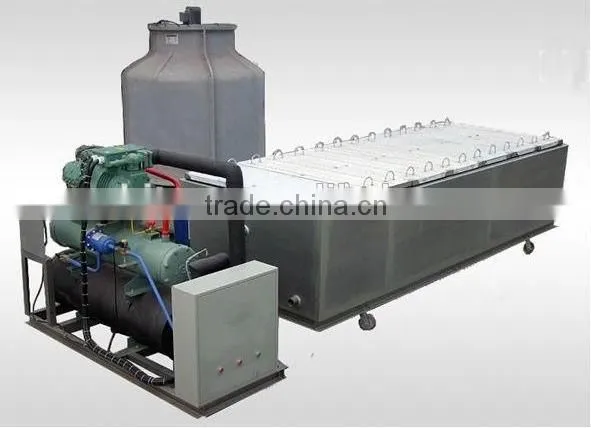

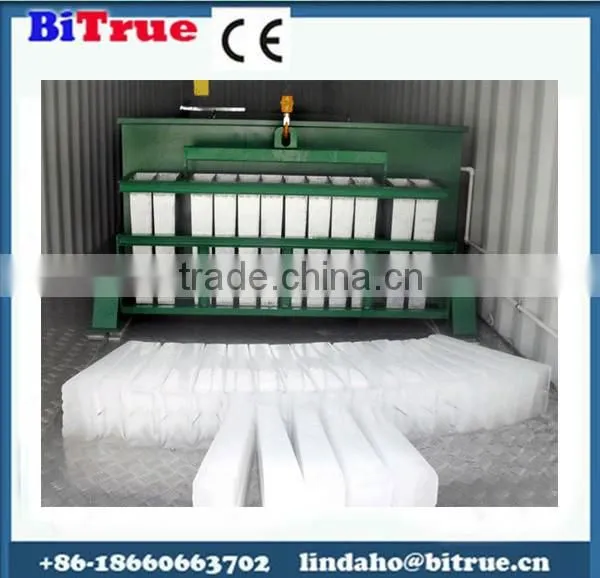

Descriptions of ice block machine:All parts in contact with brine or water are of stainless steel, galvanized or effectively anti-corrosion treated. The brine-tank is fully insulated and covered by removable panels. The ice-cans are of stainless steel , whose thick sides (1.5mm) withstand evenrough handling. The ice is harvested with the aid of an electric overhead crane with push button control. Strong heating elements in the trawing bath ensure that the blocks detach quickly from the cans.The blocks then slide smoothly through an aperture into the ice storage room.
Quick details:
1, Block ice machine for commercial or industrial used.
2, Air cooling or Water cooling for your choice.
3, Different capacity models, ice size and weight can be customized.
4, Use high quality compressor, very durable.
ice block machine technical specification:
Project | BT-2T | BT-5T | BT-8T | BT-10T | BT-20T | |||
Power Supply | Voltage380v/50Hz | |||||||
environmental temperature | 25 ℃ to45 ℃ maximum | |||||||
The water temperature | 18 ℃ maximum 40 ℃ | |||||||
refrigerant | R22/R404A//R134A/R717 | |||||||
Operating power | 9.58kw | 21.56kw | 36.7kw | 43.2kw | 81.8kw | |||
Daily output | 2000kg | 5000kg | 8000kg | 10000kg | 20000kg | |||
Compressor brand | Valley wheel/than zell/han zhong | |||||||
The compressor power | 11kw | 27kw | 47kw | 35.5kW | 66.6kW | |||
Condensation way | Water/evaporative cooling | |||||||
The container size | 20' | 40' | 40' | 40' | 40'×2 | |||
The ice time | 6h | 8h | 8h | 8h | 12h | |||
note | 1. The goods time for 30 days, one year warranty; |
Feature of ice block machine:
1, Weight and size of each ice block we can design as your requirement.
2, Air cooling or Water cooling for your choice
3, The shell made by very high quality stainless steel or colored steel.
4, Digital temperature display, you can set cooling temperature easily from the control panel.
5, High quality compressors from EU
6, Speed cooling, High production
7, Easy to operate and maintain
Advantages of ice block machine:
1. Coil pipe evaporator: No need to worry that the salinity become low and evaporator will be broken down due to No adding salt in time.
2.Agitator instead of water pump: High quantity of brine flow and better heat exchange effect.
3.Energy-saving: Ice-making power consumption had declined from 110kw.h to 74kw.h/ton block ice.
4.Hydraulic pipe bending technology: Thicker pipe wall and tiny possibility of evaporator leakage.
5.Hosepipe installation:It makes the installation easier and more simple
6.automatic continuous ice-making, easy to use
7.internal parts contacted with brine, salt pond with PE material, plastic welding, good low temperature resistance, no rust
8.special ice shelf, the melting pool design, operation more convenient
lt pool using compressor exhaust waste heat heating, more energy saving, suitable for environmental water temperature lower area
10.the overall modular design structure, transport, mobile, installation is very simple
11.automatic ice off, cover an area of an area small, flexible and mobile
12.voltage, overload protection device, water and ice, full automatic stop function
Application Area of ice block machine:
1, port, wharf ice-making factory
2, aquatic, cooling
3, long-distance transportation, aquatic product, food preservation
4, special temperature and cooling in the field of consumption
5, ice sculpture ornamental use
6, edible ice field, etc
Other Types:

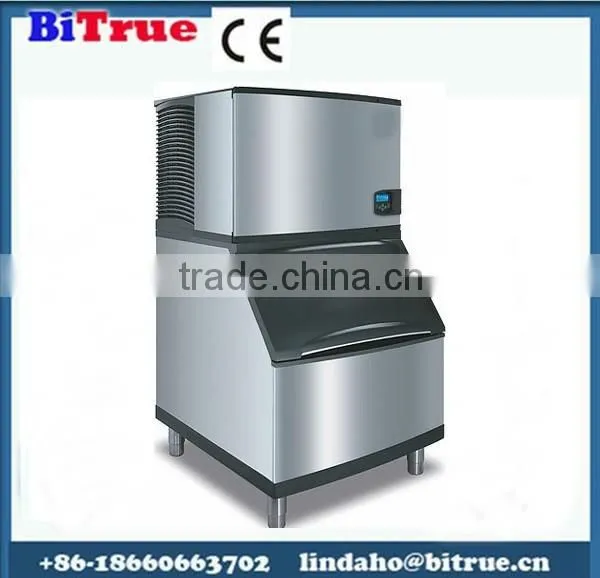

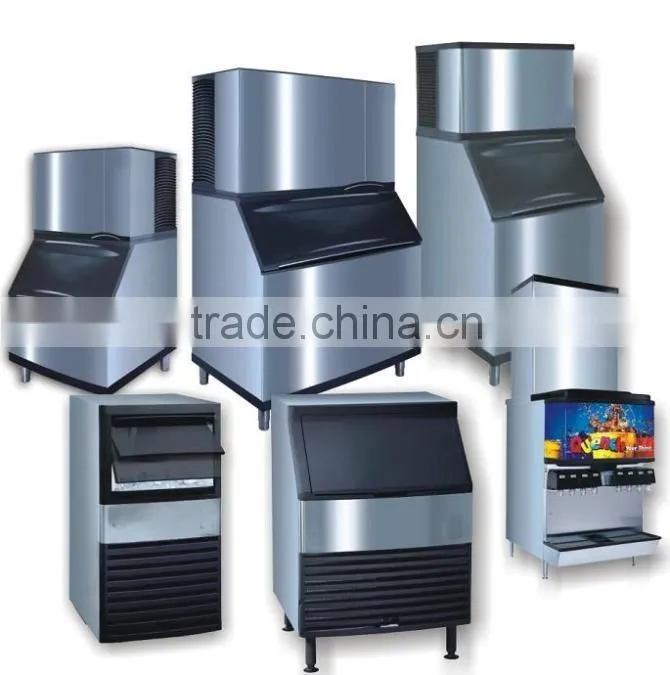

Descriptions of ice making machine:
1. Luxurious appearance and compact design.
2. Fully automatic control, convenient for use.
3. Ice cube maker; highly transparent ice.
4. Detection and protection in case of overload, water shortage and full ice level.
5. Highly efficient freon-free compressor, economical and energy-saving.
6. Widely applied to pubs, ice bars, hamburger shops, cold drinks shops, fast food restaurants, bars, bakeries and cafes.

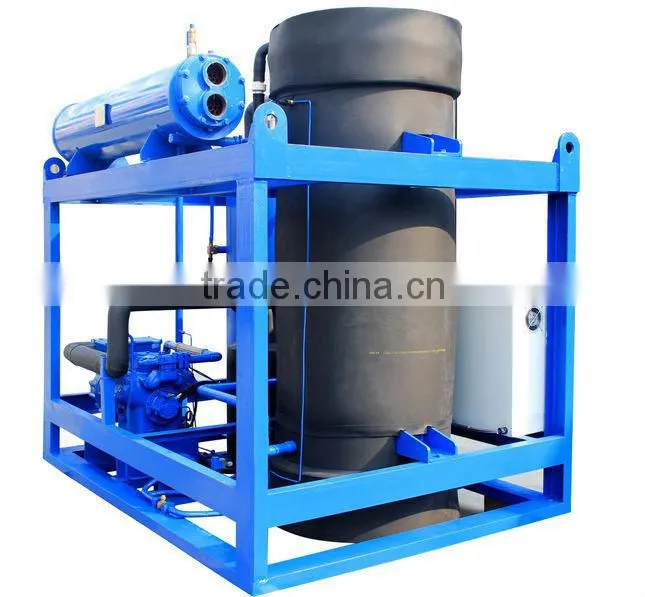

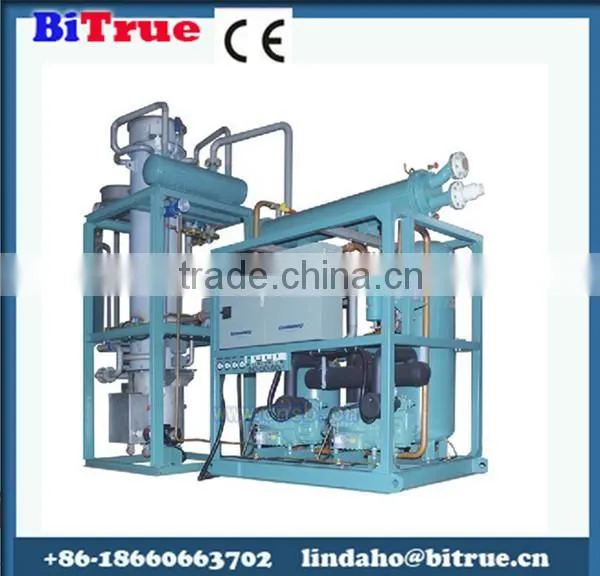

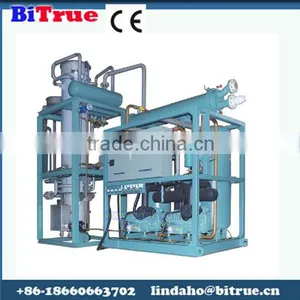

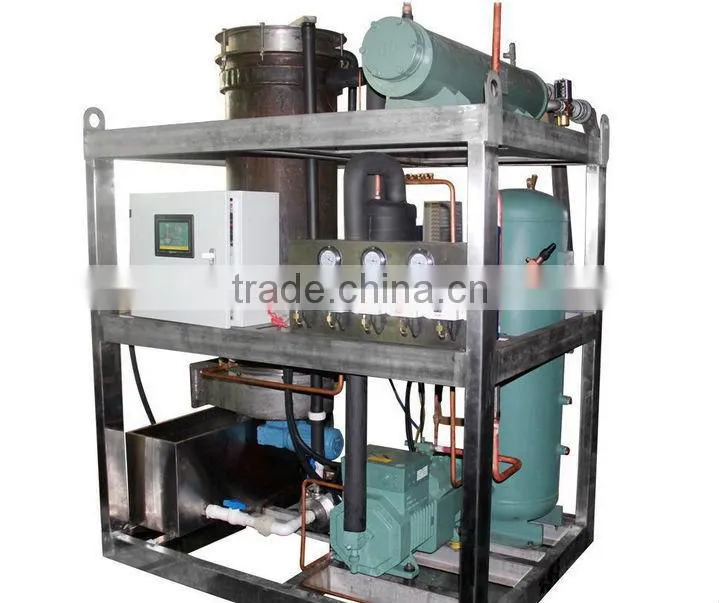

Descriptions of tube ice machine:
1) Harvest ice way: Hot gas defrost

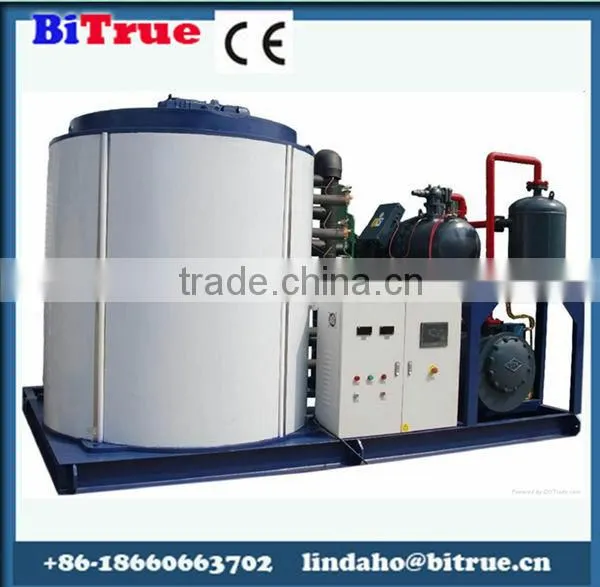

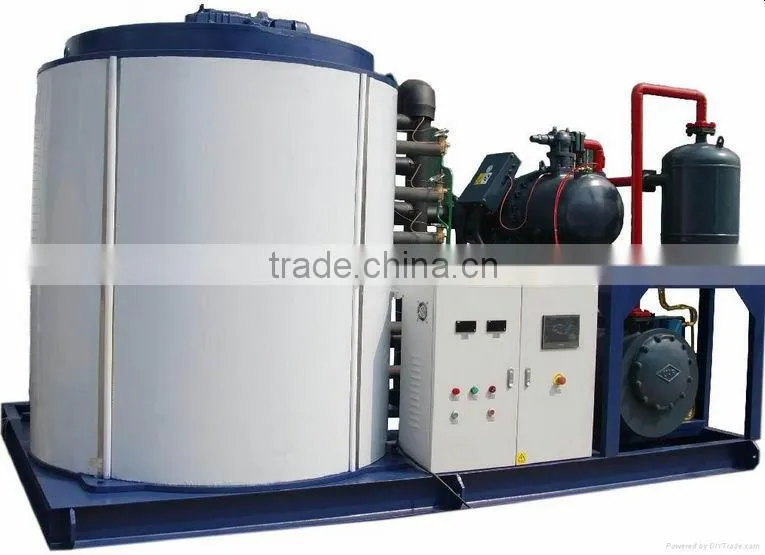

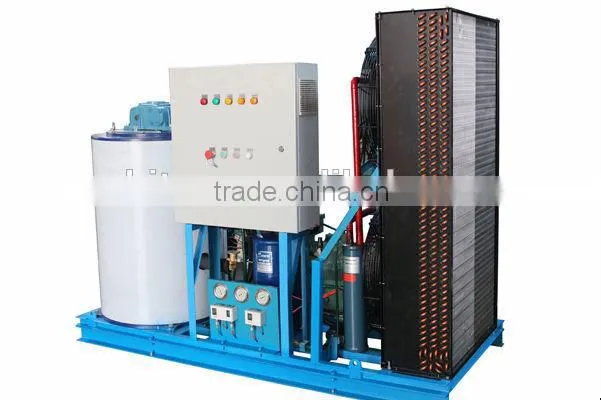

Descriptions of flake machine:
1.the products are applicable for Fresh water
2.Ice maker capacity: 40T/D; Ice storage: 20T/D
3.Water cooled, Refrigerants is R22
4.Power supply: 380v/50hz/3p
5.Thickness of flake ice 1.8~2.6mm
6.Applicable working condition: environment temperature.5~40℃, inlet water
Temperature:0~40℃
7.Intelligent PLC control system.
8.Evaporators are made up of SUS304 stainless steel
9.Feature: Safety and sanitation, High reliability and low breakdown rate, High Efficiency and energy saving, outstanding electric control system
