New Arrival Power Tillers & Cultivators

New Arrival Power Tillers & Cultivators thumbnail-1
New Arrival Power Tillers & Cultivators photo-1
US$ 500 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Weifang Bitrue I/E Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 12-22
Certificate CE
Brand Name BT
Model Number 12KL
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

                                                      New arrival power tillers & cultivators

power tillers & cultivators specifications

walking tractor is dual-function product that can be operated as the towing machine as well as driving machine. They have small and compact structure, light weight, long service life,  reliable performance,  easy operation and good running ability, also they are be assemble a seating equipment for driver.

The products are suitable for operating in paddy field, dry field, orchard, greenhouse, hilly field. With matched accessories and farm implement, they can finish many operations such as ploughing, cultivating, harrowing harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying, threshing, seeding, milling, fooder cutting and so on.



Model



12KL

Structureweight

without rotavator

Kg

368

with rotavator

473

Working Weight (with rotavator)

kg

508

Turning speed of rototilling shaft

rpm

188

Overall dimensions (L×W×H)

mm

2680×1030×1250

Number of blades

PCS

24

Rototilling width

mm

800

Type of tractor



Single axle,dual-purpose for both tractor &drive

Travelingspeed

Forward

km/h

1.4, 2.5, 4.1, 5.3, 9.4, 15.3

Reverse

1.1, 3.8

Tire Size

mm

6.00-12

Wheel track

mm

800,740,640,580(normally use 800)

Min.ground clearance

mm

185

Min.turning radius

m

0.9(with no rotavator)

Model ofengine



S195N

Type of engine



Horizontal 4-stroke

Bore×stroke

mm

95×115

Total displacement

L

0.815

Compression ratio



20:01

Turing speed of crankshaft

rpm

2000

1-hour rated output

kW/hp

9.30/12.65

12-hour rated output

kW/hp

8.30/11.29

Specific fuel consumption

g/kW.h

250

Specific lube oil consumption

g/kW.h

≤2.00

Cooling mode



Condenser(Radiator)



power tillers & cultivators main features                                                                     1)small garden tractor is small and light with low oil consumption, high efficiency and good stability.

2)Easy to operate and suitable for working in the narrow acrid land, paddy field, orchard and vegetable greenhouse.

3)According to different demands of the users, also can used for rotary planting, shallow & deep plowing, transplanting in the  paddy field, loosening the soil, atomization, watering & dewatering, sowing and exploring more lands when corresponding equipments or tool are assembled

4)DF  model tractor is small and light with low oil consumption, high efficiency and good stability.

5)Easy to operate and suitable for working in the narrow acrid land, paddy field, orchard and vegetable greenhouse.

6)According to different demands of the users, also can used for rotary planting, shallow & deep plowing, transplanting in the paddy field, loosening the soil, atomization, watering & dewatering, sowing and exploring more lands when corresponding equipments or tool are assembled..



 New arrival power tillers & cultivators



power tillers & cultivators characteristics

1.This walking tractor uses traction power as well as driven power.

2.It has compact structure, reliable and durable performance, flexible operation, large power, light weight, good trafficability characteristic, and passenger accommodation.

3.It can be applied to the cultivation in paddy field, dry farm, orchard, vegetable garden, and hills.

4.It can also be equipped with some agricultural implements and accessories to be used for ploughing, rotary tillage, harrowing, ditching, sowing, reaping, transportation, and other works.

5.It can be used as the power of drainage-irrigation, sprinkling irrigation, threshing, milling, feed processing, and other stationary work.

6. Models: A with gear box, B with dual variable speed rotary cultivator, C with 7-hole transmission case, E with two-in-one seat, H with main drive speed increase, H2 with drive chain case speed increase, and T with 6.50-16 big tire.

power tillers & cultivators standard configuration (packing list):

a). Diesel engine and V-belt

b). DF type chassis

c). 1GS9L-60 Rotary Cultivator/Tiller with seat assembly (60cm tilling width)

power tillers & cultivators optional configuration:

a). Radiator cooling;

b). Motor start;

c). As per your requirement.

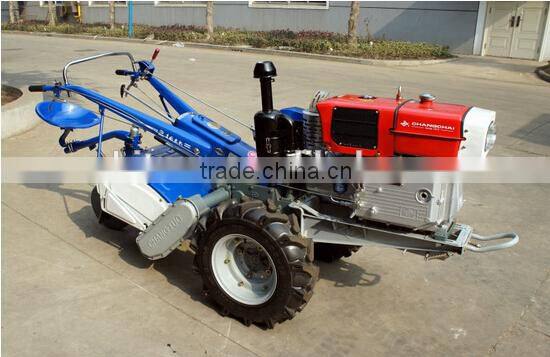

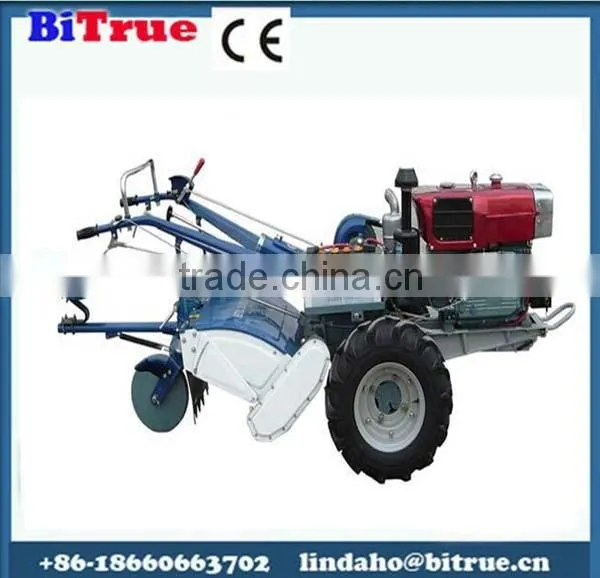

power tillers & cultivators picture

New arrival power tillers & cultivators

New arrival power tillers & cultivators

power tillers & cultivators working show

 New arrival power tillers & cultivators

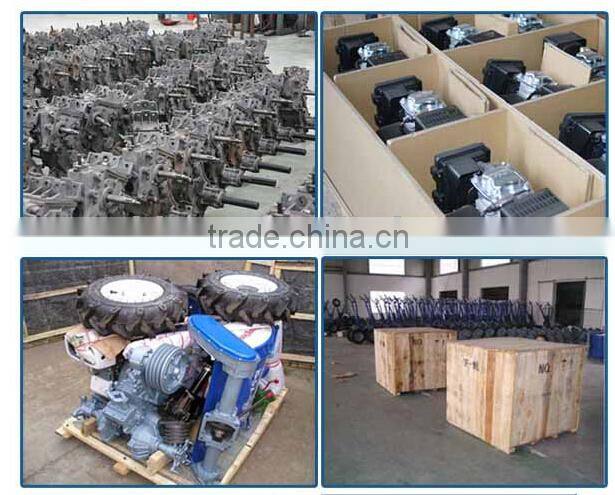

packaging and shipping

New arrival power tillers & cultivators

New arrival power tillers & cultivatorsNew arrival power tillers & cultivators
