tractors accessories
tractors accessories specifications
a. Suitable for use in paddy fields,dry fields,orchards,vegetable gardens and hilly lands with a little inclination
b. Used for ploughing, rototilling,harrowing in paddy fields, Harvesting, frilling, ditching,and transportation, if suitable farm implements or accessories are attached
c. It can also be extensively used as a stationary power source for small scale drainage and irrigation,sprinkling,grain threshing, cotton ginning,flour milling, and fodder cutting
Model |
61/81 |
|
Structure weight |
Without rotavator |
245 kg |
With rotavator |
310 kg |
|
Working weight (with rotavator) |
350 kg |
|
Overall dimensions (L×W×H) |
2250x 900 x 1050 mm |
|
Number of blades |
14 PCS |
|
Rototilling width |
700 mm |
|
Type of tractor |
Single axle, dual-purpose for both traction & drive |
|
Travelling speed |
Forward |
2.01, 3.32, 5.31, 6.76, 11.18, 17.86 Km/h |
Reverse |
3.28, 11.03 Km/h |
|
Tire size |
6.00-12 |
|
Wheel track |
650~730 mm (normally 730 mm) |
|
Min. ground clearance |
214 mm |
|
Min. turning radius |
0.9m with no rotavator |
|
Model of engine |
R185N |
|
Type of engine |
Horizontal 4-stroke |
|
Bore ×stroke |
8590 mm |
|
Total displacement |
0.51 L |
|
Compression ratio |
21:1 |
|
Turing speed of crankshaft |
2200 rpm |
|
1-hour rated output |
6.62/9 KW/hp |
|
12-hour rated output |
5.88/8 KW/hp |
|
Cooling mode |
Condenser (Radiator) |
|
Main farm implements (optional) |
Anti-skid steel wheel Model 100-640; Single-furrow plough; Model 1LS-125; Sprinkler Model 50BPZ-45; Swather /reaper Model 4GL-100; Trailer 7C-0.8 (Standard) |
|
tractors accessories advantage
1. Beautiful outer appearance, large capacity fuel tank, the engine works longer
2.Single balance, engines work more stable
3. The specific fuel is low, the engines work more economics
4.Excellent start ability, easy to start
5. Oil bath air-filter makes the engine more suitable to the bad circumstance
tractors accessories main features
*Farm Hand Tractors is the kind of traction and driving,it has compact structure,
flexible operation,high horsepower,light weight and good passing ability.
*Farm Hand Tractors has a wide range of uses,with different farm tools for different
farm operations.
*Farm Hand Tractors enjoys the reputation of stable performance,good reliability
strong applicability.
*According to the actual needs,customers can match ther models of diesel engine
which matching power is less than the specified value.
tractors accessories characteristics
1. This series of walking tractor uses traction power as well as driven power.
2. It has compact structure, reliable and durable performance, flexible operation, good trafficability characteristic, and passenger accommodation.
3. 81 has larger power and higher efficiency than YB-61 type. The gearbox has horizontal structure and thus it has better weight balance ratio. It can be applied to the cultivation in paddy field, dry farm, orchard, vegetable garden, and hills.
4.It can also be equipped with some agricultural implements and accessories to be used for ploughing, rotary tillage, harrowing, ditching, sowing, reaping, transportation, and other works.
5.It can be used as the power of drainage-irrigation, sprinkling irrigation, threshing, milling, feed processing, and other stationary work.
tractors accessories application:
*Farm Hand Tractors is used in paddy field,dry land,orchard,vegetable garden,
hilly land farming.
*With agricultural machinery and accessories for the corresponding,it can plough,
rotary tillage,harrow land,ditching,sowing,harvesting,transportation and other
operations, but also can be used as irrigation and drainage,irrigation,threshing,
grinding, feed processing.

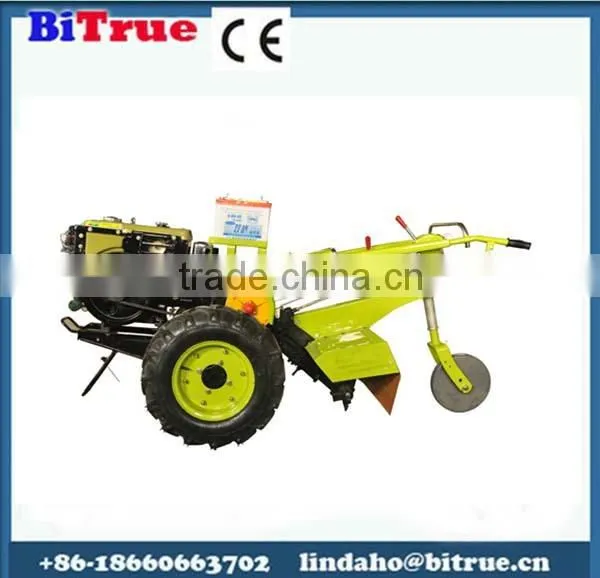

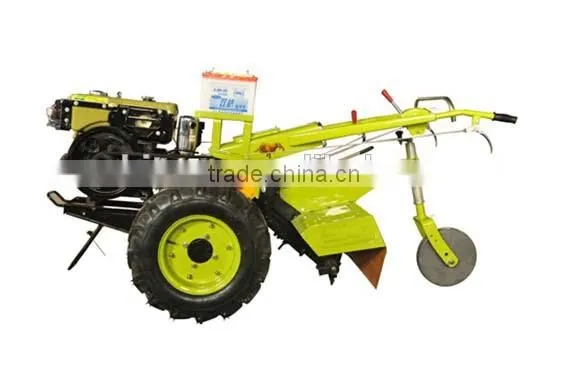

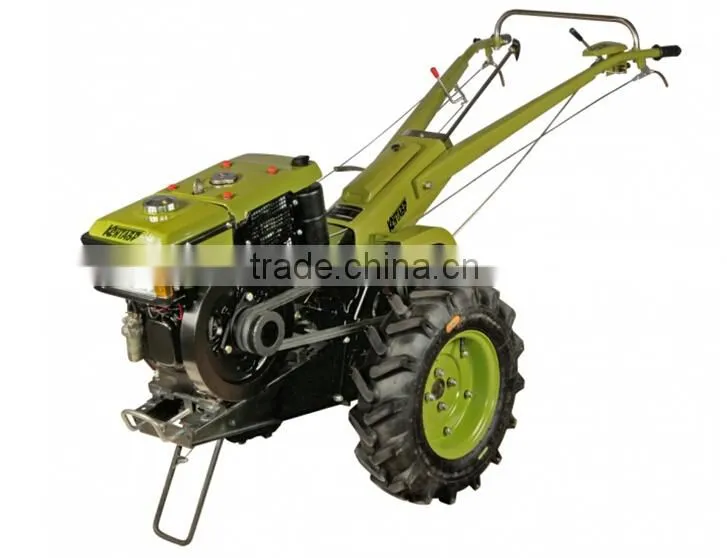

tractors accessories picture
tractors accessories working show
packaging and shipping
