hand tractors in china

                                                                hand tractors in china

hand tractors in china specifications

a. Suitable for use in paddy fields,dry fields,orchards,vegetable gardens and hilly lands with a little inclination

b. Used for ploughing, rototilling,harrowing in paddy fields, Harvesting, frilling, ditching,and transportation, if suitable farm implements or accessories are attached

c. It can also be extensively used as a stationary power source for small scale drainage and           irrigation,sprinkling,grain threshing, cotton ginning,flour milling, and fodder cutting

Model		101
Structure weight	Without rotavator	258kg
	With rotavator	350 kg
Working weight (with rotavator)		395 kg
Overall dimensions (L×W×H)		2700×960×1220 mm
Number of blades		16 PCS
Rototilling width		700 mm
Type of tractor		Single axle, dual-purpose for both traction & drive
Travelling speed	Forward	2.19, 3.62, 5.79, 7.37, 12.20, 19.48 Km/h
	Reverse	3.58, 12.03 Km/h
Type size		6.00-12
Wheel track		650~790 mm (normally 790 mm)
Min. ground clearance		214 mm
Min. turning radius		0.9m with no rotavator
Model of engine		R192N
Type of engine		Horizontal 4-stroke
Bore× stroke		92×90 mm
Total displacement		0.598 L
Compression ratio		18:1
Turing speed of crankshaft		2400 rpm
1-hour rated output		8/10.88 KW/hp
12-hour rated output		7.35/10 KW/hp
Specific fuel consumption		≤281.4 g/kw.h
Specific lube oil consumption		≤2.04 g/kw.h
Cooling mode		Condenser (Radiator)
Main farm implements (optional)		Anti-skid steel wheel Model 100-640; Single-furrow plough Model 1LS-125; Sprinkler Model 50BPZ-45; Swather/reaper Model 4GL-100; Trailer 7C-0.8 (Standard)





hand tractors in china advantage

1. Beautiful outer appearance, large capacity fuel tank, the engine works longer

2.Single balance, engines work more stable

3. The specific fuel is low, the engines work more economics

4.Excellent start ability, easy to start

5. Oil bath air-filter makes the engine more suitable to the bad circumstance

hand tractors in china  main features

*Farm Hand Tractors is the kind of traction and driving,it has compact structure,

flexible operation,high horsepower,light weight and good passing ability.

*Farm Hand Tractors has a wide range of uses,with different farm tools for different

farm operations.

*Farm Hand Tractors enjoys the reputation of stable performance,good reliability

strong applicability.

*According to the actual needs,customers can match ther models of diesel engine

which matching power is less than the specified value.

hand tractors in china characteristics

1. This walking tractor uses traction power as well as driven power.

2.It has compact structure, reliable and durable performance, flexible operation, good trafficability characteristic, and passenger accommodation.

3.101 has larger power and higher efficiency than YB-81 type. The gearbox has horizontal structure and thus it has better weight balance ratio. It can be applied to the cultivation in paddy field, dry farm, orchard, vegetable garden, and hills.

4.It can also be equipped with some agricultural implements and accessories to be used for ploughing, rotary tillage, harrowing, ditching, sowing, reaping, transportation, and other works.

5.It can be used as the power of drainage-irrigation, sprinkling irrigation, threshing, milling, feed processing, and other stationary work.

hand tractors in china application:

*Farm Hand Tractors is used in paddy field,dry land,orchard,vegetable garden,

hilly land farming.

*With agricultural machinery and accessories for the corresponding,it can plough,

rotary tillage,harrow land,ditching,sowing,harvesting,transportation and other

operations, but also can be used as irrigation and drainage,irrigation,threshing,

grinding, feed processing.

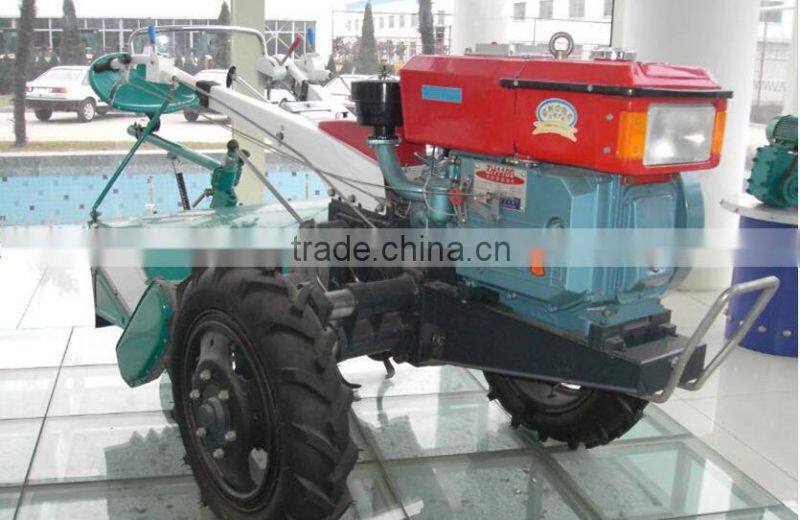

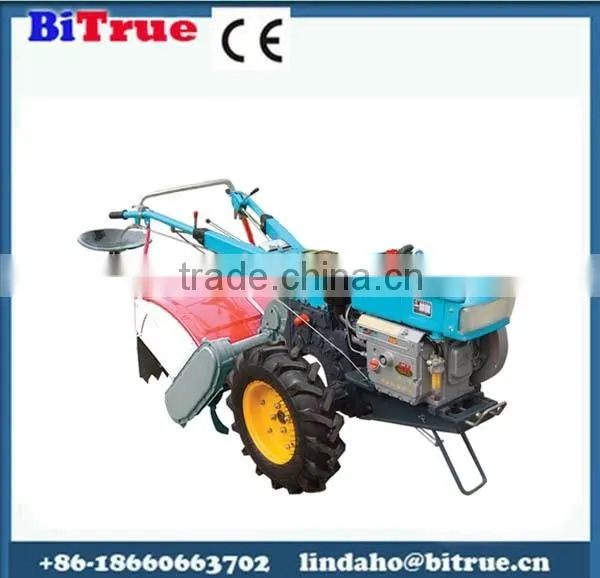

hand tractors in china  picture

hand tractors in china show

packaging and shipping
