tractor encyclopedia
tractor encyclopedia specifications
walking tractor is dual-function product that can be operated as the towing machine as well as driving machine. They have small and compact structure, light weight, long service life, reliable performance, easy operation and good running ability, also they are be assemble a seating equipment for driver.
a. Suitable for use in paddy fields,dry fields,orchards,vegetable gardens and hilly lands with a little inclination
b. Used for ploughing, rototilling,harrowing in paddy fields, Harvesting, frilling, ditching,and transportation, if suitable farm implements or accessories are attached
c. It can also be extensively used as a stationary power source for small scale drainage and irrigation,sprinkling,grain threshing, cotton ginning,flour milling, and fodder cutting
tractor encyclopedia parameter
Model |
12L |
15L |
|
Structure weight |
Without rotavator |
353 kg |
363 kg |
With rotavator |
458 kg |
468 kg |
|
Working weight |
With rotavator |
493 kg |
508 kg |
Turning speed of rototilling shaft |
188/300 rpm |
||
Overall dimensions (L×W×H) |
2680×960×1250 mm |
||
Number of blades |
18 PCS |
||
Rototilling width |
600 mm |
||
Type of tractor |
Single axle, dual-purpose for both traction & drive |
||
Travelling speed |
Forward |
1.4, 2.5, 4.1, 5.3, 9.4, 15.3 Km/h |
|
Reverse |
1.1, 3.8 Km/h |
||
Tire size |
6.00-12 |
||
Wheel track |
800, 740, 640, 580 mm (normally 800mm) |
||
Min. ground clearance |
185 mm |
||
Min. turning radius |
0.9 m (with no rotavator) |
||
Model of engine |
S195N |
S1100N |
|
Type of engine |
Horizontal 4-stroke |
||
Bore× stroke |
95×115 mm |
100×115 mm |
|
Total displacement |
0.815 L |
0.903 L |
|
Compression ratio |
20:1 |
19.5:1 |
|
Turing speed of crankshaft |
2000 rpm |
||
1-hour rated output |
9.3/12.65 KW/hp |
10.5/14.3 KW/hp |
|
12-hour rated output |
8.3/11.29 KW/hp |
9.8/13.33 KW/hp |
|
Specific fuel consumption |
≤258 g/kw.h |
≤250 g/kw.h |
|
Specific lube oil consumption |
≤2.04 g/kw.h |
≤2.00 g/kw.h |
|
Cooling mode |
Condenser (Radiator) |
||
Main farm implements (optional) |
Anti-skid steel wheel Model 100-640; Double-furrow plough Model 1LS-220; Disk plough Model 1LS-220Y; Power driven disk plough Model Sprinkler Model 8Y-80; Swather/reaper Model 4GL-120; Trailer 7C-1.5 (Standard); Trailer 7C-1.5BH (Hydraulic dumping) |
||
tractor encyclopedia advantage
1. Beautiful outer appearance, large capacity fuel tank, the engine works longer
2.Single balance, engines work more stable
3. The specific fuel is low, the engines work more economics
4.Excellent start ability, easy to start
5. Oil bath air-filter makes the engine more suitable to the bad circumstance
tractor encyclopedia main features
*Farm Hand Tractors is the kind of traction and driving,it has compact structure,
flexible operation,high horsepower,light weight and good passing ability.
*Farm Hand Tractors has a wide range of uses,with different farm tools for different
farm operations.
*Farm Hand Tractors enjoys the reputation of stable performance,good reliability
strong applicability.
*According to the actual needs,customers can match ther models of diesel engine
which matching power is less than the specified value.
tractor encyclopedia 12L/15L characteristics
1.This walking tractor uses traction power as well as driven power.
2.It has compact structure, reliable and durable performance, flexible operation, large power, light weight, good trafficability characteristic, and passenger accommodation.
3. It can be applied to the cultivation in paddy field, dry farm, orchard, vegetable garden, and hills.
4. It can also be equipped with some agricultural implements and accessories to be used for ploughing, rotary tillage, harrowing, ditching, sowing, reaping, transportation, and other works.
5. It can be used as the power of drainage-irrigation, sprinkling irrigation, threshing, milling, feed processing, and other stationary work.
tractor encyclopedia product detail
a. Tractorsurface is treated by three layers as priming paint, surface paint and shining paint for better erosion resistance use reinforced transmission case for firmer structure
b. Hang frame and wheel rim adopt nodular cast iron materials for casting, which is abrasion-resist and impact-resist with longer life span equip with special and durable brand tyres
c. All gears adopt national brand gears with abrasion-resistance, lower noise and more reliable quality
d. Manipulating shaft such as gearlever etc should be plating treated twice for anti-abrasion and anti-erosion and durable usage
tractor encyclopedia application:
*Farm Hand Tractors is used in paddy field,dry land,orchard,vegetable garden,
hilly land farming.
*With agricultural machinery and accessories for the corresponding,it can plough,
rotary tillage,harrow land,ditching,sowing,harvesting,transportation and other
operations, but also can be used as irrigation and drainage,irrigation,threshing,
grinding, feed processing.

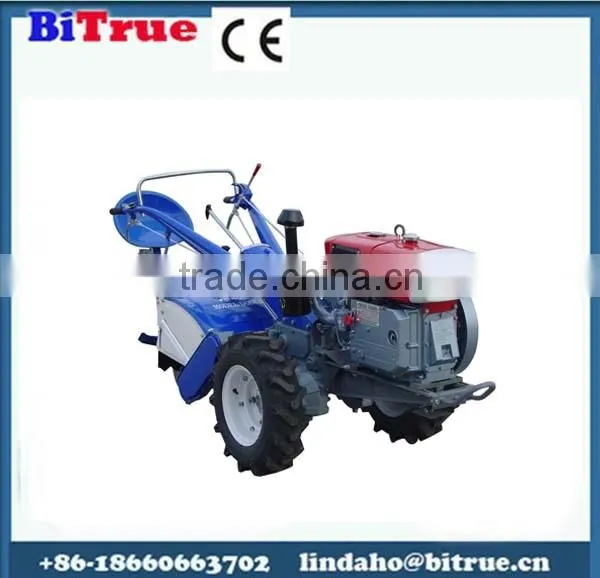

tractor encyclopedia picture
tractor encyclopedia working show
packaging and shipping
