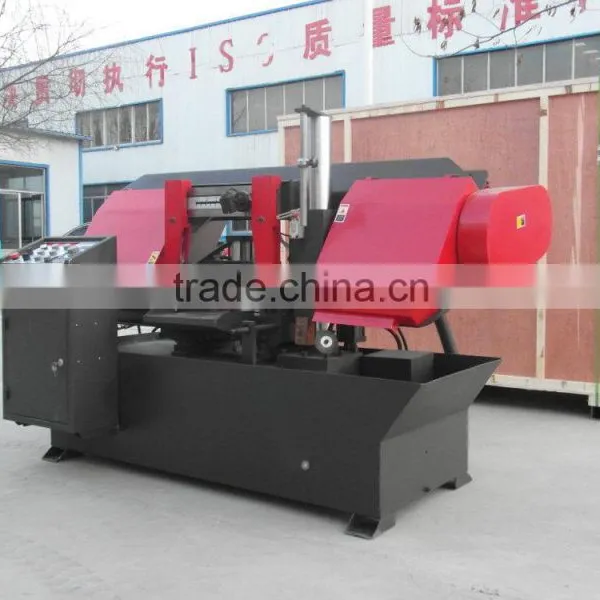

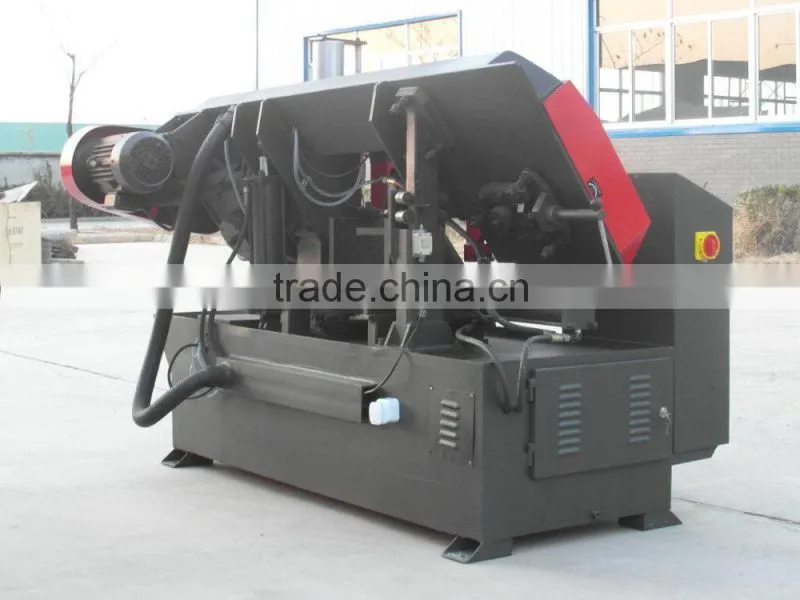

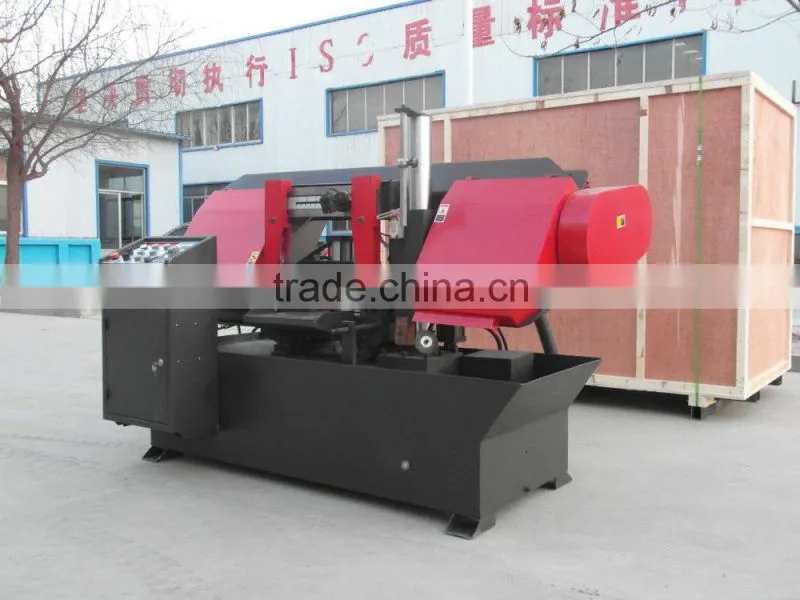

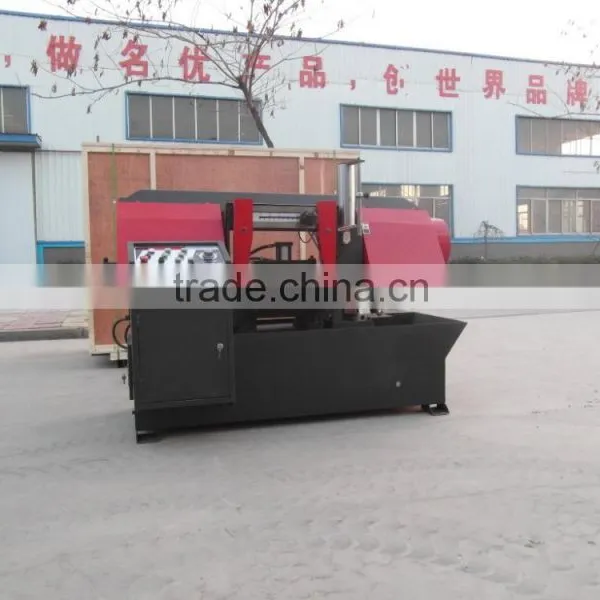

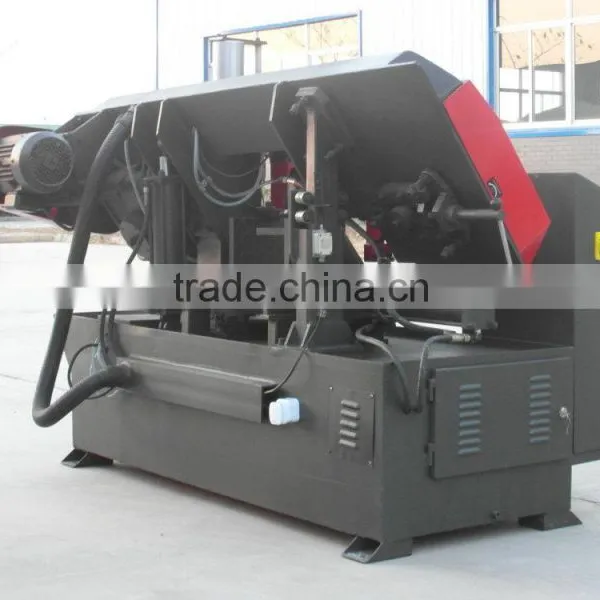

Metal bandsaw cutting machine GZ-4230 Portable Band Sawmill
1.CE approved ISO verified
2.Metal straight cutting
3.Double column for higher stability
4.Semi auto hydraulic control
Product advantage
1. Semi-automatic cut cycle, no miter cutting,straight cutting only
2. Blade Cutting feed rate set & controlled by speed-adjusting valve on the control pannel.
3.Low Voltage/Overload Protection
4. Hydraulically controlled Vise
Product detail
Capacity Round |
300mm |
Capacity Rectangular |
300*300 mm |
Blade Size (Length/Width/Thickness) |
3505*27*0.9 mm |
Cutting Length Control |
Controlled by the length guage |
Power Requirement |
380V,50Hz or customized |
Main Motor Rate |
2.2KW |
Hydraulic motor rate |
0.42KW |
Coolant Pump rate |
0.04KW |
Blade speed(m/min) |
40/60/80,Inverter |
Vise action Method |
Clamping vise, hydraulic |
Shipping dimensions |
1700*900*1400MM |

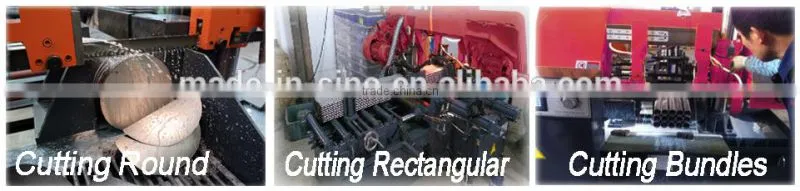

Mainly used to cutting various metal, like steel, iron,copper, aluminum,etc. Also can cut wood, meat,stone and other materials by changing to special saw blade .
- Two years(24 months) guarantee from the delivery date of band saw machine under the normal and proper operation of one shift per day.
- We'll be responsible for the maintence and repair of the damaged parts during warranty period. The transpotation costs of the damaged replacement parts will be borne by the buyer.
- All the damage caused by man-made mistake or the improper operation is not included.
- Wearing parts( band saw blades) not included.
JINAN SINO MACHINE TOOLS CO.,LTD is one professional metal band sawing machine manufacturer from china. We began our business in the year of 1998, and started to export as JINAN SINO TRADE CO.,LTD since 2009.
Now we have 2 brands-NR&JF, and all our products have been CE&ISO certificated. We have the strong capacity in R&D,design and manufacturing.
Our main products include double-column band saw machine, angle band sawing machine, NC band saw machine, vertical band sawing machine , etc. With advanced technology and competitive prices, our products sell well in China as well in the world .
