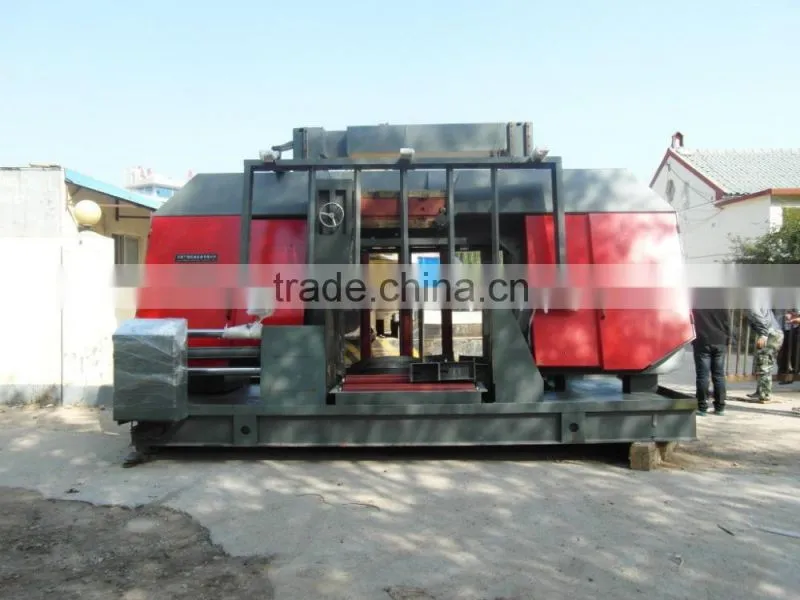

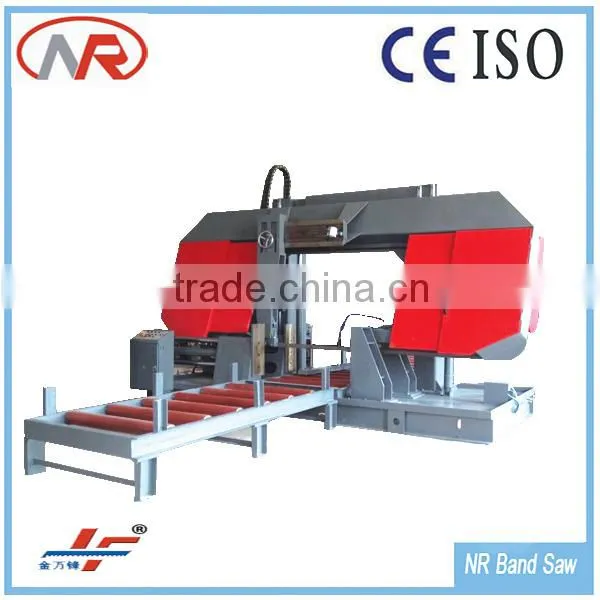

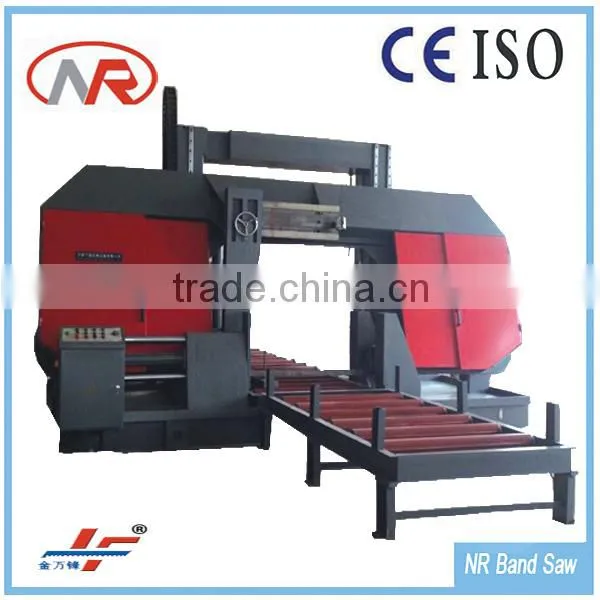

Sheet Metal Cutting Machine Horizontal Band Saws GZ42100
Sheet Metal Cutting Machine Metal Cutting Machinery saw china new products band saw Orange/blue or optional
1.CE approved ISO verified
2.Metal straight cutting
3.Double column for higher stability
4.Semi auto hydraulic control
1.Semi-automatic cut cycle, no miter cutting,straight cutting only
2.Blade Cutting feed rate set & controlled by speed-adjusting valve on the control pannel.
3.Low Voltage/Overload Protection
4. Hydraulically controlled Vise
Product detail
Capacity Round |
1000mm |
Capacity Rectangular |
1000*1000mm |
Blade Size (Length/Width/Thickness) |
10000*67*1.6 mm |
Cutting Length Control |
Controlled by the length guage |
Power Requirement |
380V,50Hz or customized |
Main Motor Rate |
11KW |
Hydraulic motor rate |
2.2KW |
Coolant Pump rate |
0.2KW |
Blade speed(m/min) |
15-17transducer,Inverter |
Vise action Method |
Clamping vise, hydraulic |
Shipping dimensions |
4570*2180*3250MM |
Horizontal Band Saws Metal Cutting Machinery Working Theory Hydraulic and semi-automatically
Mainly used to cutting various metal, like steel, iron,copper, aluminum,etc. Also can cut wood, meat,stone and other materials by changing to special saw blade .
wood cutting saws portable Metal Cutting Machinery Vise action Method Hydraulic & semi automatic clamping vise
Sheet Metal Cutting Machine Metal Cutting Machinery Cutting Blade Tensioning Manually
Horizontal Band Saws Metal Cutting Machinery Cutting Blade Feeding Belt,pulley and gear transmission reducer
- Two years(24 months) guarantee from the delivery date of band saw machine under the normal and proper operation of one shift per day.
- We'll be responsible for the maintence and repair of the damaged parts during warranty period. The transpotation costs of the damaged replacement parts will be borne by the buyer.
- All the damage caused by man-made mistake or the improper operation is not included.
- Wearing parts( band saw blades) not included.

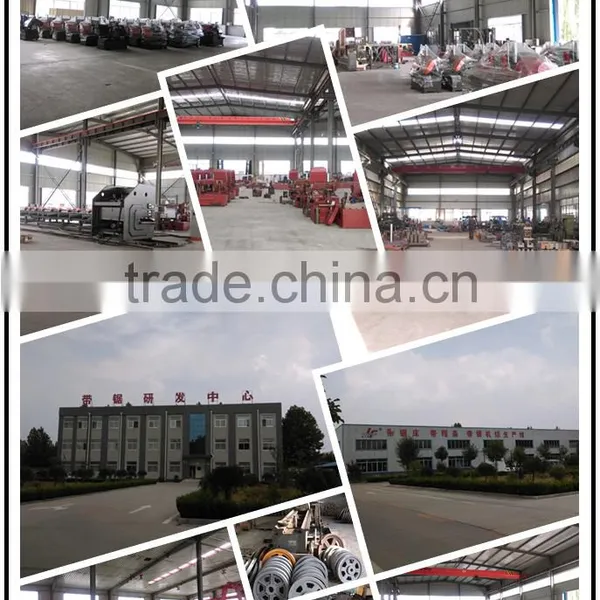

JINAN SINO MACHINE TOOLS CO.,LTD is one professional metal band sawing machine manufacturer from china. We began our business in the year of 1998, and started to export as JINAN SINO TRADE CO.,LTD since 2009.
Now we have 2 brands-NR&JF, and all our products have been CE&ISO certificated. We have the strong capacity in R&D,design and manufacturing.
Our main products include double-column band saw machine, angle band sawing machine, NC band saw machine, vertical band sawing machine , etc. With advanced technology and competitive prices, our products sell well in China as well in the world .
wood cutting saws portable Metal Cutting Machinery Capacity Round 1000mm
Sheet Metal Cutting Machine Metal Cutting Machinery Cutting Length Control Controlled by the length guage
| Q1: What is your MOQ? |
| A1: Our MOQ is one set. |
| Q2: Can I change the motor voltage and frequency? |
| A2: Yes, voltage and frequency are made as request. |
| Q3: What is your Delivery time? |
| A3: Usually, it's 15 working days after receiving your payment. |
| Q4: Can I use my own logo? |
| A4: Yes, OEM is always be welcome. |
| Q5:What payment method can you accept? |
| A5: T/T, L/C, Escrow |
| Q6: What is your quality guarantee? |
|
A6: Every machine will be strictly inspected and tested before shipping to clients. Besides, we offer 5 years warranty for the band saw machine since the delivery date. |

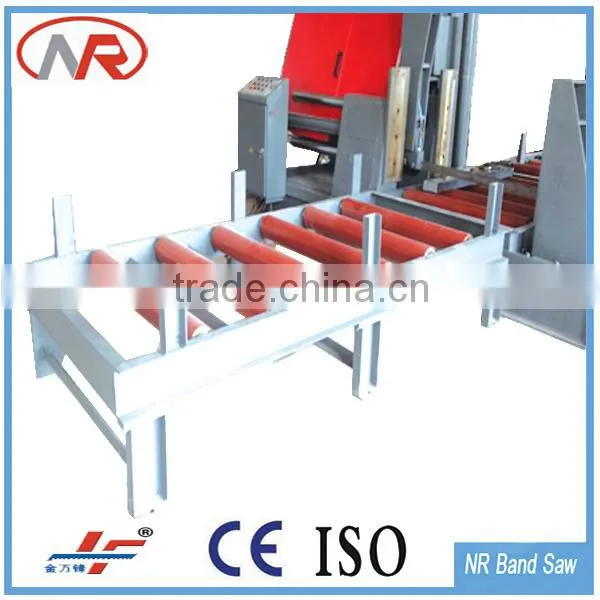

Horizontal Band Saws Metal Cutting Machinery Material Trolley Portable material trolley with steel strcuture
