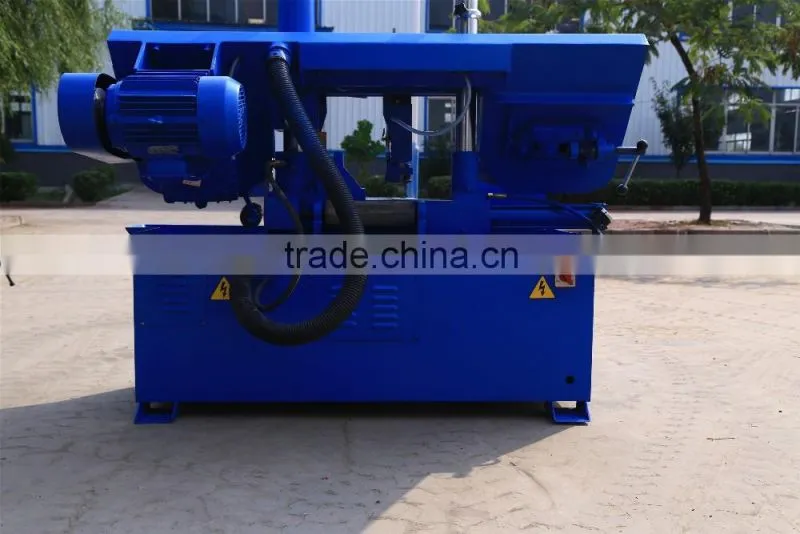

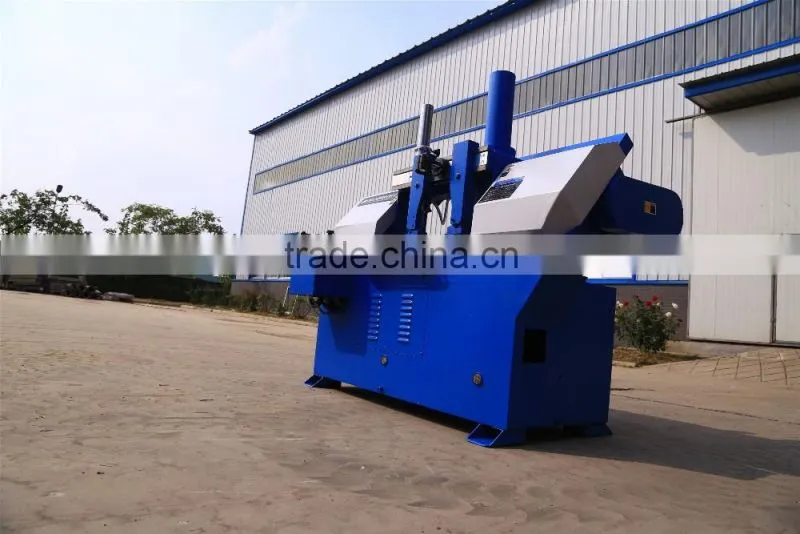

GZ-4226 double-column hydraulic semi-automatic used horizontal band saw
- 100 Set / Sets per Month
- Qingdao port; Tianjin port
- T/T L/C D/P D/A
- 1600 Ton Heavy Duty Hydraulic Used Car Shell Gantry Type Shear Machine OEM Available
- 4axis 5axis Large size and thickness(0-40mm) cnc plasma cutting machine
- Automatic cnc plasma cutting machine gate cnc router 120a/200a
- Fully automatic 20mm plasma cutting machine custom size high quality
- 200mm pipe table axe for plasma metal cutting machine spare parts in weifang
- China gantry cnc plasma and oxy cutting machine dust removal equipment
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | nr used horizontal band saw |
Model Number: | GZ4226 | Voltage: | 380V 50HZ | Rated Power: | 2.2kw |
Dimension(L*W*H): | 1650*850*1350mm | Weight: | 590Kg | Certification: | CE ISO |
Warranty: | 2 Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1.CE approved ISO verified
2.Metal straight cutting
3.Double column for higher stability
4.Semi auto hydraulic control
Product advantage
1.Semi-automatic cut cycle, no miter cutting,straight cutting only
2.Blade Cutting feed rate set & controlled by speed-adjusting valve on the control pannel.
3.Low Voltage/Overload Protection
4. Hydraulically controlled Vise
Product detail
Capacity Round | 260mm |
Capacity Rectangular | 260 X 260 mm |
Blade Size (Length/Width/Thickness) | 3152×27×0.9 mm |
Cutting Length Control | Controlled by the length guage |
Power Requirement | 380V,50Hz or customized |
Main Motor Rate | 2.2KW |
Hydraulic motor rate | 0.37KW |
Coolant Pump rate | 0.04KW |
Maximum Vise Opening | 280 mm |
Blade speed(m/min) | 40/60/80,Inverter |
Vise action Method | Clamping vise, hydraulic |
Shipping dimensions | 1650X850X1350MM |
Mainly used to cutting various metal, like steel, iron,copper, aluminum,etc. Also can cut wood, meat,stone and other materials by changing to special saw blade . Band saws are a cost effective way to cut different material in many different shapes.
High quality plywood package can give the best protection to bandsaw machine during the long tranpotation.
JINAN SINO MACHINE TOOLS CO.,LTD is one professional metal band sawing machine manufacturer from china. We began our business in the year of 1998, and started to export as JINAN SINO TRADE CO.,LTD since 2009.
Now we have 2 brands-NR&JF, and all our products have been CE&ISO certificated. We have the strong capacity in R&D,design and manufacturing.
Our main products include double-column band saw machine, angle band sawing machine, NC band saw machine, vertical band sawing machine , etc. With advanced technology and competitive prices, our products sell well in China as well in the world .
- Two years(24 months) guarantee from the delivery date of band saw machine under the normal and proper operation of one shift per day.
- We'll be responsible for the maintence and repair of the damaged parts during warranty period. The transpotation costs of the damaged replacement parts will be borne by the buyer.
- All the damage caused by man-made mistake or the improper operation is not included.
- Wearing parts( band saw blades) not included.
