P16 Full Color Outdoor Led Display/outdoor Led Display/led Display

Name: P16 Full Color Outdoor Led Display/outdoor Led Display/led Display
Brand: SkyMax
SKU: 100873181
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SkyMax

Model Number:

P16

Zhongshan SkyMax Display Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan/Shenzhen/HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SkyMax

Model Number P16

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other

Specifications

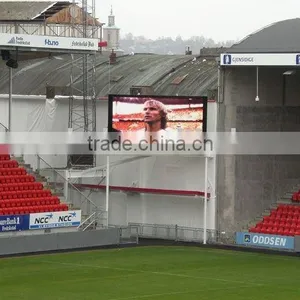

outdoor led screen, sport led screen, led billborad screen: can play action sport very good effection: football, horse race...

outdoor led display .led display ,led screens ,led displays

outdoor led screen, sport led screen, led billborad screen

P16 Full-color outdoor led display


P16 virtual outdoor led screen technical specification
pixel pitch(mm)	16mm
virtual pixel pitch (mm)	8 mm
cabinet dimension(mm)	1024x768x 200
pixel per meter	3906 dots
virtual pixel per meter	15624 dots
pixel configuration	dip-led 2R1G1B
cabinet resolution	64 x48
cabinet virtual resolution	128 x 96
weight (aluminium, kg/cabinet)	49 kg
max. Power (watt per meter)	1100
aver. Power (watt per meter)	275
brightness (cd per meter)	>10000
grey color	281.5 trillion
refresh frequency	2000 Hz
the best viewing distance	12-100 meter
viewing angle	horizontal 120, vertical 60 degree
operation temperature	:-25----- +45 degree centigrade
operating humidity	<90% R.H.
drive method	constant current static
brightness adjustment	100 levels manual, 16 levels auto
exchange frame speed	60-100Hz
computer operation system	Win98, Win 2000, Win XP
Video signal	RF, S-Video, RGB, RGBHV, YUV, YC, DVI, VGA ect.
software	LED play SKYMAX A software
Control Method	synchronization with PC

High clear photo, uniform color, strong three-dimensional layered, clear color vividly.
Freely broadcast pictures, text, VCD/DVD, 3D cartoon, television, video and other kinds of live programming.
Strong brightness, static driving mode, in the visual distance of the screen surface direct sunlight with clear visible.
65536 (16bit) super Grey scale control with unlined correct funtion, colors more than 281.5 trillion to nature color.
Completely adopting all kinds of inclement weather of outdoor environment, antisepsis, waterproof, moisture-proof.
