outdoor led screen
Negotiable
/ Meter
1 Meter(Min.Order)
- 600 Meter / Meters per Month
- zhongshan/shenzhen
- T/T
You May Like
-
60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
-
80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
-
60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
-
2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
-
Led flood light, led Gas Station Lamp, LED canopy light 100w
-
120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | / | Model Number: | P16 |
| Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
| Pixels: | Other |
Product Description
Specifications

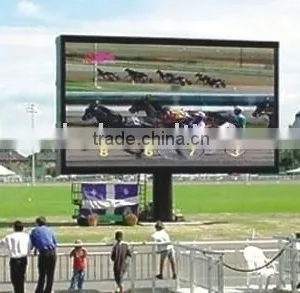

outdoor led screen, sport led screen, led billborad screen: can play action sport very good effection: football, horse race...outdoor led screen, sport led screen, led billborad screen
| P16 virtual outdoor led screen technical specification | |
| pixel pitch(mm) | 16mm |
| virtual pixel pitch (mm) | 8 mm |
| cabinet dimension(mm) | 1024x768x 200 |
| pixel per meter | 3906 dots |
| virtual pixel per meter | 15624 dots |
| pixel configuration | dip-led 2R1G1B |
| cabinet resolution | 64 x48 |
| cabinet virtual resolution | 128 x 96 |
| weight (aluminium, kg/cabinet) | 49 kg |
| max. Power (watt per meter) | 1100 |
| aver. Power (watt per meter) | 275 |
| brightness (cd per meter) | >10000 |
| grey color | 281.5 trillion |
| refresh frequency | 2000 Hz |
| the best viewing distance | 12-100 meter |
| viewing angle | horizontal 120, vertical 60 degree |
| operation temperature | :-25----- +45 degree centigrade |
| operating humidity | <90% R.H. |
| drive method | constant current static |
| brightness adjustment | 100 levels manual, 16 levels auto |
| exchange frame speed | 60-100Hz |
| computer operation system | Win98, Win 2000, Win XP |
| Video signal | RF, S-Video, RGB, RGBHV, YUV, YC, DVI, VGA ect. |
| software | LED play SKYMAX A software |
| Control Method | synchronization with PC |
| High clear photo, uniform color, strong three-dimensional layered, clear color vividly. | |
| Freely broadcast pictures, text, VCD/DVD, 3D cartoon, television, video and other kinds of live programming. | |
| Strong brightness, static driving mode, in the visual distance of the screen surface direct sunlight with clear visible. | |
| 65536 (16bit) super Grey scale control with unlined correct funtion, colors more than 281.5 trillion to nature color. | |
| Completely adopting all kinds of inclement weather of outdoor environment, antisepsis, waterproof, moisture-proof. | |
