P4 Full Color Die Cast Hang Led Screen

P4 Full Color Die Cast Hang Led Screen thumbnail-1
P4 Full Color Die Cast Hang Led Screen photo-1
Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SkyMax Display
Model Number:
SM- P4 die-cast LED series
Contact Supplier Request Quote Chat Now
Zhongshan SkyMax Display Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan; Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SkyMax Display
Model Number SM- P4 die-cast LED series
Usage Indoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 6mm;5mm;4mm
Screen Dimension 480mm*480mm

Specifications

>Light weight;Thin cabinet
>Flat screen
>Quick dismounting
>Low release heat
>Full compatible

Parameters of P4 die-casting cabinet LED TV Screen


NO

Item

parameter

module

1

LED encapsulation mode

SMD3528 surface mounted

2

Horizontal axis

120°

3

Vertical axis

120°

4

Pixel composition

1R1G1B

5

Pixel pitch

4mm

6

Scan method

1/10

7

Drive method

Constant current

8

Module resolution

40×40dots

9

Module size

240mm×240mm

10

Module type

Integration of lamp and drive board

11

Module working voltage

+5V

12

Module average consumption

40W

13

module maximum consumption

10W

14

module shell material

PC

15

module mask material

PC

cabinet

1

Module layout

2×2 pieces

2

Resolution

80×80 dots

3

Cabinet maximum consumption

200W

4

Cabinet average consumption

50W

5

Cabinet dimension

480mm×480mm

6

Cabinet material

Die-cast aluminum

7

Cabinet color

black/grey

8





screen

1

Application environment

indoor

2

brightness

>2000cd /m2

3

White balance

X=0.29,Y=0.31

4

contrast

64000:1

5

Color Temperature

8000K

6

density

27777 (dot/m2)

7

Average power consumption

217 (W/M2)

8

Maximum power consumption

868 (W/M2)

9

Power supply mode

AC220V/50HZ~AC110V/60HZ

10

Operating temperature

-20°C to +50°C

11

Operating humidity

10%~90%

12

Storage temperature

-30°C to +70°C

13

Refresh frame rate

60Hz

14

Refresh rate

480Hz

15

Viewing distance

6-100m

16

Grey level/color

16.7M

17

Brightness adjustment mode

Software 100level/ automatic 100level

18

Control manner

Synchronous with the computer display

19

Distance of signal transmission

Net cable 100m

20

Computer operating system

WINDOWS(98,2000,XP,Vista,7)

21

Video signal

VGA,DVI,RF,S-Video,RGB,RGBHV,

YUV,YC,COMPOSITION etc

22

MTBF

≥10000hours

23

longevity

≥100000hours

24

certificate

UL/CE/CCC













High purity aluminum die casting one full HD LED display serials:  SMD P4,  SMD P5, SMD  P6



 Advantages:



1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.



2.Thin cabinet:the thickness isonly10 CM, the space of the screen is small , and the entire screen will be more beautiful.



3. Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively.

   The effect of the display will be more clear and exquisite.



4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.



5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.



6. Full compatible: new structure design which can demand the indoor displays’ require.









 PHOTO SHOW:

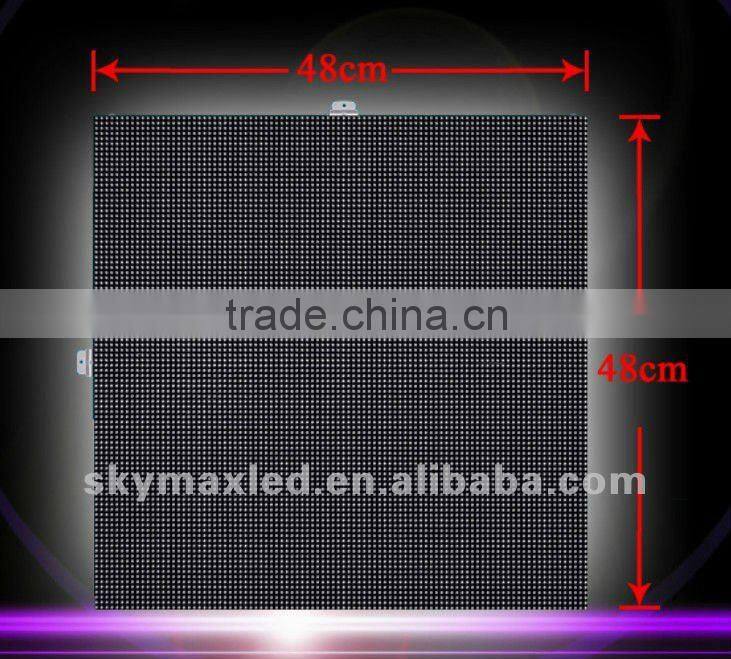

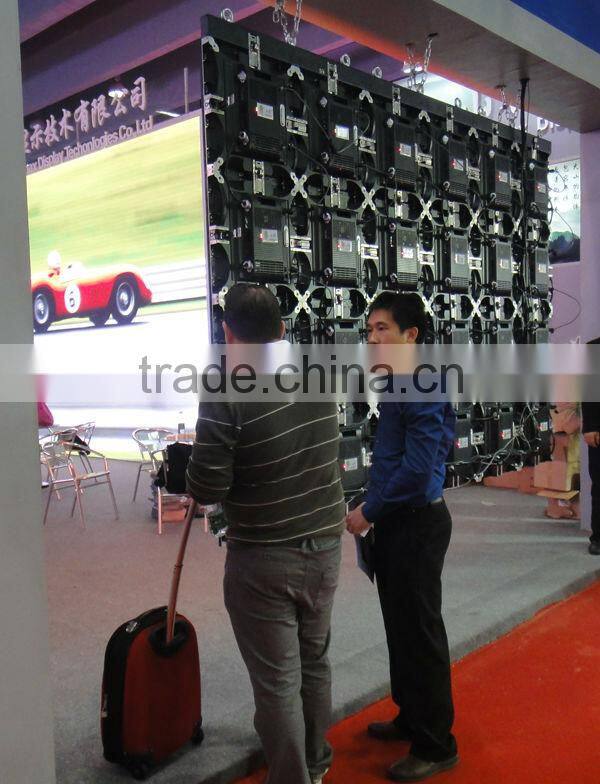

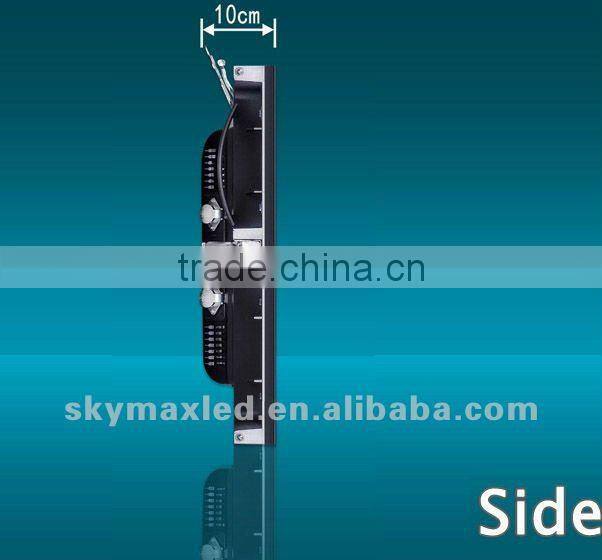

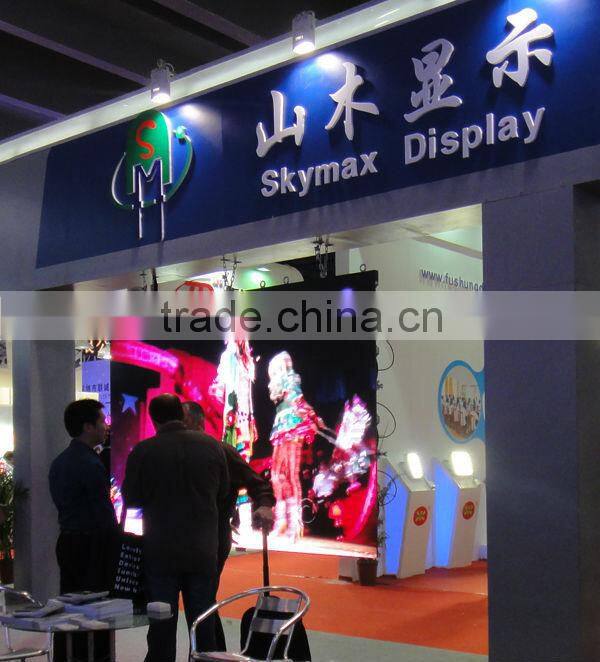

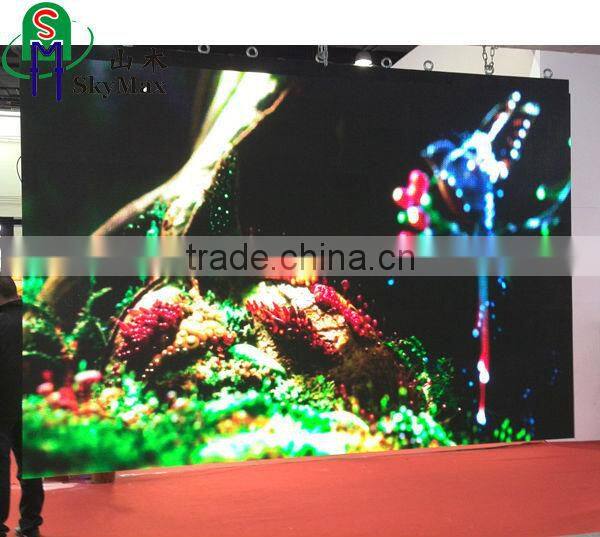

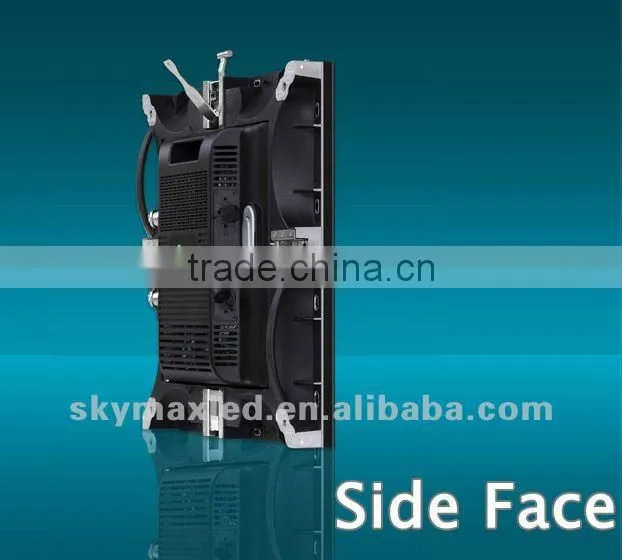

P4 Full color die cast hang led screen

P4 Full color die cast hang led screenP4 Full color die cast hang led screen


P4 Full color die cast hang led screen



P4 Full color die cast hang led screen





P4 Full color die cast hang led screen





 P4 Full color die cast hang led screen

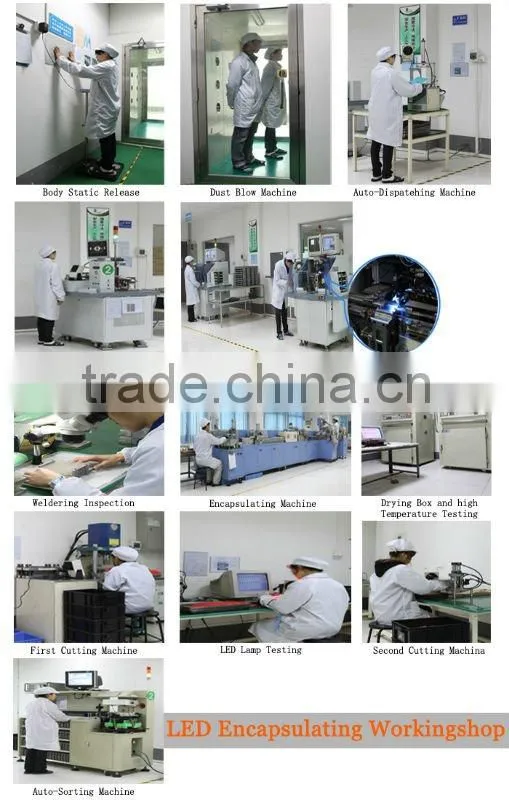

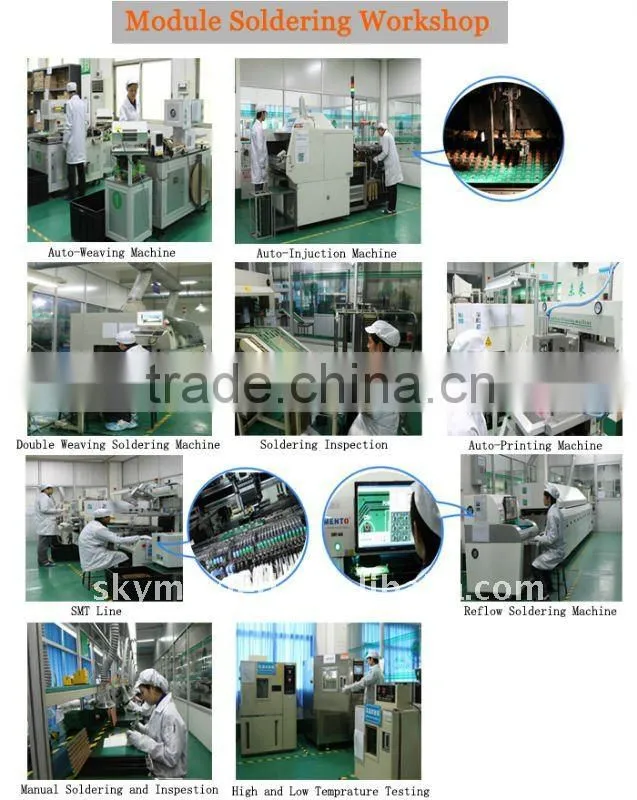

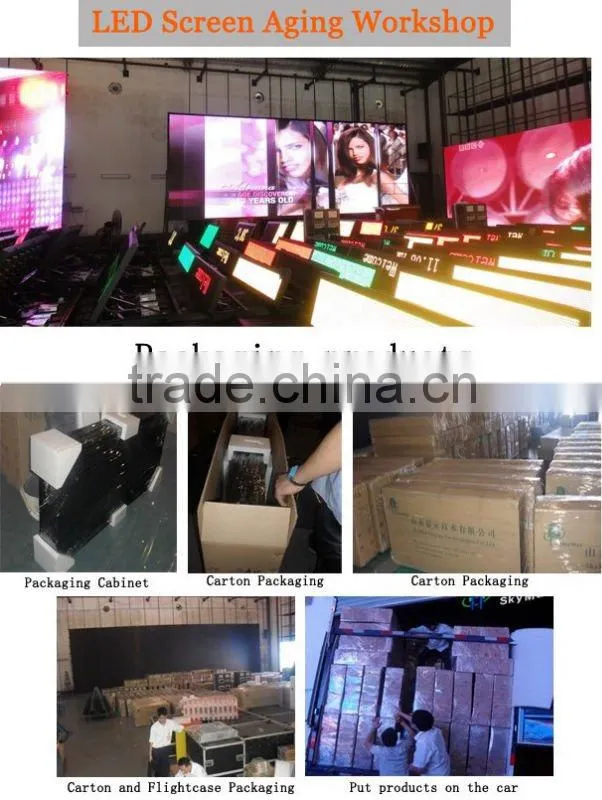

 Factory show ( dust-free workshop)

 P4 Full color die cast hang led screenP4 Full color die cast hang led screenP4 Full color die cast hang led screen







 P4 Full color die cast hang led screen
