Help CenterHigh Definition IP65 Waterproof Rating P10 Outdoor Led Advertising Screen
Related Products
-
P7.62 Indoor Elecrtonics Led Display PanelNegotiableMOQ: 1 Square Meter -
P7.62 Indoor Elecrtonics Led DisplayNegotiableMOQ: 1 Square Meter
-
P8 Indoor Digital Led DisplayNegotiableMOQ: 1 Square Meter
-
Indoor P8 Electronics Led Display With CE CertificateNegotiableMOQ: 1 Square Meter
-
P6 Indoor Installation Fast Rental Stage Car Show Full Color Led Indoor LED ScreenNegotiableMOQ: 10 Square Meters
number |
Item name |
Parameter and index |
unit module | ||
1 |
LED encapsulation mode |
φ4 oval lamp |
2 |
Horizontal axis |
120° |
3 |
Vertical axis |
60° |
4 |
Pixel composition |
1R1G1B |
5 |
Pixel pitch |
10mm |
6 |
Scan method |
1/2 |
7 |
Drive method |
Constant current |
8 |
Module resolution |
16×16 pixels |
9 |
Module dimensions |
160mm×160mm |
10 |
Module type |
incorporated lamp and drive |
11 |
Module working voltage |
+5V |
12 |
Module average power |
5W |
13 |
Module maximum power |
20W |
14 |
Module shell material |
PC |
15 |
Module mask material |
PC |
unit cabinet | ||
1 |
Module layout |
6×6 pieces |
2 |
Cabinet resolution |
96×96 pixels |
3 |
Cabinet maximum power |
600W |
4 |
Cabinet average power |
150W |
8 |
Cabinet dimension |
960mm×960mm |
6 |
Cabinet material |
steel/aluminum alloy |
7 |
Cabinet color |
black/gray |
8 |
Protection grade (front/back) |
IP65/IP54 |
Entire screen | ||
1 |
Application environment |
outdoor |
2 |
Brightness |
>8000 cd/sqm |
3 |
White balance coordinates |
X=0.29,Y=0.31 |
4 |
contrast |
64000:1 |
5 |
Color temperature |
8000K |
6 |
Pixel density(pixels/sqm) |
1000 |
7 |
Average consumption(W/sqm) |
244 |
8 |
Maximum consumption(W/sqm) |
977 |
9 |
Power source |
AC220V/50HZ or AC110V/60HZ |
10 |
Operating temperature |
-20°C~ +50°C |
11 |
Operating humidity |
10%~90% |
12 |
Storage humidity |
-30°C ~ +50°C |
13 |
Refresh frame rate |
60Hz |
14 |
Refresh rate |
480Hz |
15 |
Viewing distance |
10-100m |
16 |
grayscale/color |
16.7M |
17 |
Brightness adjustment |
100 manual levels /100 auto levels/100 timing |
18 |
Control method |
synchronous with the computer display |
19 |
Data transfer range |
Network; cable:100m |
20 |
Computer operating system |
WINDOWS(98,2000,XP,Vista,7) |
21 |
Video signal |
VGA,DVI,RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION and so on. |
22 |
MTBF |
≥10000 hours |
23 |
Longevity |
≥100000 hours |
24 |
Certification |
UL/CE/CCC |

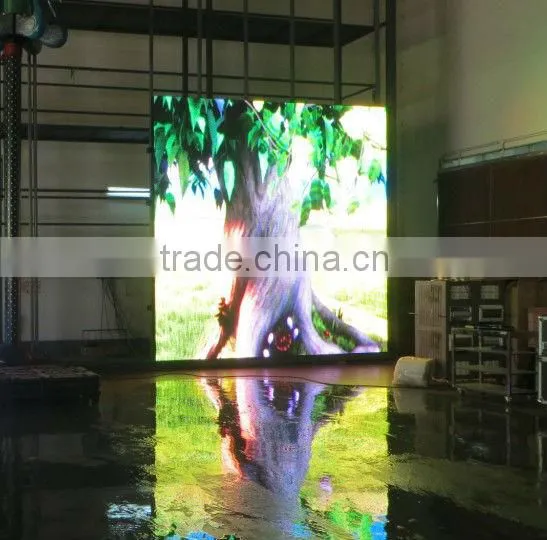

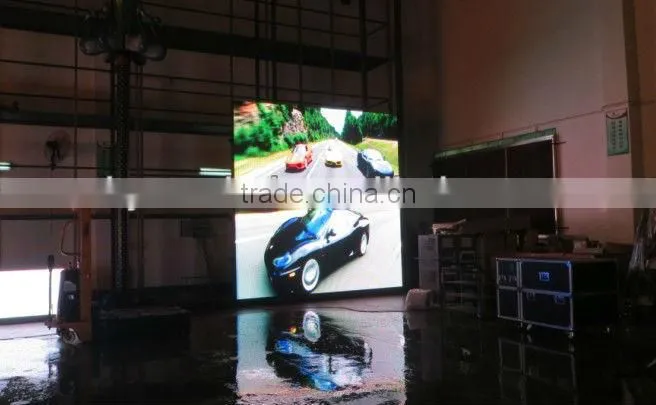

The projects show:
Our workshop:
