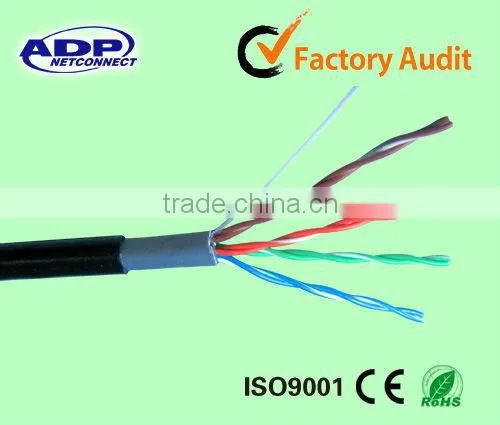

4 Pairs Double Screen FTP Cat5 Network Cable/LAN Cable/Belden Cat5 Cable

Specifications

UTP/FTP Cat5 lan cable
FLUKE/CE/ROHS
Markets: North America/Eastern Europe/Eastern Asia
Shield UTP/STP/FTP

Specifications

1) 27 Years Professional Manufacturer
2) Public Company in 2010
3) Production is 1,000,000 Boxes
4) UL Certificated

4 Pairs Double Screen FTP Cat5 Network Cable/LAN Cable/Belden Cat5 Cable

(1,000,000 Boxes,Annual Production)



Conductor:

Material: solid bare copper

Number of pairs: 4 pairs

AWG: 23AWG

Conductor diameter: 0.57 ±0.003mm

Insulation:

Material: HDPE and FRPE

Diameter: 1.02 ±0.005mm

Average thickness: 0.225mm

Minimum point thickness: 0.2245mm

First screen: Aluminum Foil (superposition rate: 25%)

Overall screen: 48/0.1mm TC braid shield (braid density: 40%)

Jacket rid cord: optional

Sheath:

Material: PVC or LSZH

Nominal diameter: 6.0 ±0.2mm

Average thickness: 0.55mm

Minimum point thickness: 0.545mm

Includes:

Polyester Wrapping

Drain Wire

Aluminum-plastic Laminated Screen

Braid Screen

Jacket:PVC / LSZH

Standard:

YD/T1019-2001, TIA/EIA-568B, ISO/IEC61156





Characteristic of LAN Cable/Data Communication Cable

Frequency Mhz	Impedance Ohm	RL dB	Attenuation dB/100M	Next dB/100M	ELFEXT dB/100M	PS NEXT dB/100M	PS Elfext dB/100M
1	100±15	20	2.0	65.3	63.8	62.3	60.8
4	100±15	23	4.1	56.3	51.7	53.3	48.7
8	100±15	25	5.8	51.8	45.7	53.3	42.7
10	100±15	25	6.5	50.3	43.8	47.3	40.8
16	100±15	25	8.2	47.3	39.7	44.2	36.7
20	100±15	25	9.3	48.5	37.7	42.8	34.7
25	100±15	24	10.4	44.3	35.8	41.3	32.8
31.25	100±15	24	11.6	42.9	33.9	39.9	30.9
62.5	100±15	22	17.0	38.4	27.8	35.4	24.8
100	100±15	20	22.0	35.3	23.8	32.3	20.8
155	100±18	19	28.1	33.0	20.0	29.0	17.0
