Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > Satellite Antenna Rg59 Cable 0.8mm Cu 90% Coverage

Satellite Antenna Rg59 Cable 0.8mm Cu 90% Coverage

US$ 0.1 - 2.9 MOQ: 30000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

RG59+power

Contact Supplier Request Quote Chat Now

Shenzhen ADP Cables Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number RG59+power

Type Coaxial

Number of Conductors 1

Specifications

satellite antenna rg59 cable 0.8mm Cu 90% coverage
>CCTV,CATV systems
>Carry power and data signal up to 1000feet
>durable

satellite antenna rg59 cable 0.8mm Cu 90% coverage

Product Description

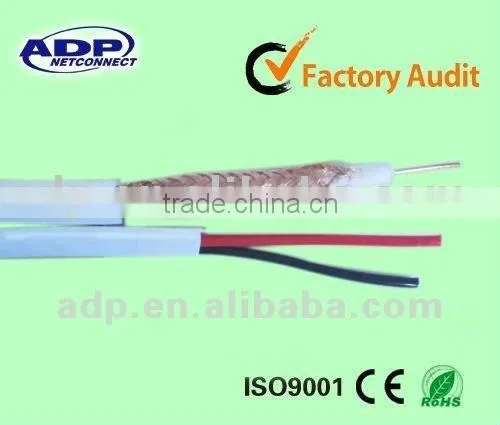

RG59+2C(RG59 Coaxial Cable + Power Cable)
0.83mmCCS+3.66mmFPE+Bondal AL FOIL+50%-95%CCA Braiding+6.1mmPVC+2*18AWG CCA Power cable(7*0.37mmCCA)

Application
Used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Why use Siamese?
It is a great solution because only one cable is needed for powering security cameras while relaying the video information. This cable has the ability to reliably carry power and data signals up to 1000 feet. This cable has 18 AWG conductors for the power, and comes on an easy-pull, wooden spool.

Advantage :

1) durable and can be run in long distances without interference. You can also cut each security camera run the exact length that you need.

2)You will need to attach BNC connectors to each end of the RG59 coax part of the cable for the CCTV video transmission.

3) BNC connectors are available in twist on, crimp on, and compression types.

4) 500 foot spools of RG59 are also available.

5)allows installers to run both the video and power to security cameras using a single cable run

RG59 95% POWER 2-18AWG

1) Specifications

Center Conductor:

0.81+0.005mm Solid Copper

Dielectric:

3.66+0.05mmFoam PE

Braid Coverage:

95% Copper

Jacket:

6.1+0.10mm PVC

Jacket Thickness:

0.0381mm

2-18

Center Conductor:
2-18 AWG Stranded Copper (7X0.38mm)
Dielectric: Solid PE 1.85mm
Jacket: (2-18): 3.81mm

2) Characteristics

Spark Test: 2000 VAC

Dielectric Strength: Conductor to Shield: 2000VDC

Impedance:	75+3 Ohm
Capacitance:	16.0pF./Ft. Nom.
Velocity of Propagation:	84%
DCR: Conductor:	10.5 Ohms/1000Ft.(Nom.) Coax
	6.6 Ohms/1000Ft(Nom.) 18 AWG
Return Loss:	20dB min (5-860MHz)
	15dB min(860-2500Mhz)
SRL:	20dB (10-350MHz) 100% Swept Tested
