Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > Flat Patch Cord/cat5e Flat Cable/cat6 Flat Cable

Flat Patch Cord/cat5e Flat Cable/cat6 Flat Cable

Name: Flat Patch Cord/cat5e Flat Cable/cat6 Flat Cable
Brand: ADP/OEM
SKU: 100838797

Flat Patch Cord/cat5e Flat Cable/cat6 Flat Cable thumbnail-1

Flat Patch Cord/cat5e Flat Cable/cat6 Flat Cable photo-1

US$ 0.03 - 0.12 MOQ: 10000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ADP/OEM

Model Number:

CAT5e flat patch cable

Contact Supplier Request Quote Chat Now

Shenzhen ADP Cables Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ADP/OEM

Model Number CAT5e flat patch cable

Type Cat 5e

Number of Conductors 8

Specifications

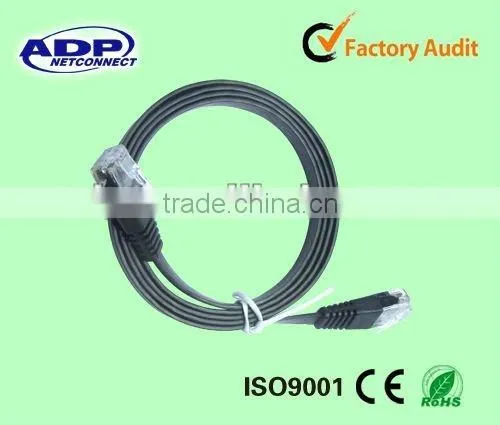

flat patch cord/cat5e flat cable/cat6 flat cable
Conductor:TC/BC/CCA/CCS
Dia:24AWG/26AWG/28AWG
CE/ISL/ROSH/SGS Certificate

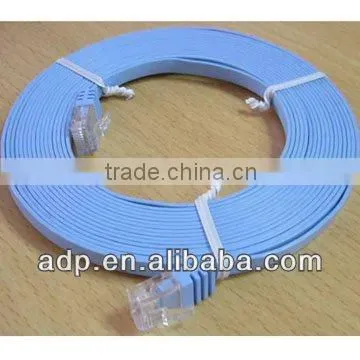

flat patch cord/cat5e flat cable/cat6 flat cable

Application

·Ethernet 10Base-T,100Base-T4,100Base-TX,

100Base-VG-ANYLAN, 155 Mbps ATM,

622Mbps ATM, 1000Base-T

Telephone

Multimedia

Trunk wiring

Technical Parameters

Characteristic Impedance:100±15Ω(1-100MHz)

Nominal Velocity of Propagation (NVP): CMX, CM, CMR, LSZH 69%, CMP 72%

Maximum Mutual Capacitance: 5.6nF/100m

Maximum Capacitance Unbalance: 330pF/100m

Maximum DC Resistance:9.38Ω/100m

Maximum Resistance Unbalance: 5%

Maximum Propagation Delay Skew: 30ns/100m

Maximum Propagation Delay:536ns/100m@100MHz

Minimum Bending radius: 10×Overall Diameter

Voltage Rating: 80V rms

Maximum Pulling Load:80N

Working Temperature:-5°C~+50°C

Storage Temperature:-20°C~+60°C

Flame Retardant: UL 1581(CM Jacket); UL 1666(CMR Jacket); UL 910(CMR Jacket); IEC 60332-1(FRPVC&LSZH Jacket); IEC 60332-1 and IEC 60332-3C(LSFROH Jacket)

Technical data

Inner Conductor	Number of Pairs	4
	Total Number of Conductors	8
	Conductor Material	BC-Solid Bare Copper
	Wire Gage	24AWG
	Conductor Diam(ø)mm	Φ0.50±0.03mm
	Elongation	≥15%
Insulation	Insulation Material	HDPE - Polyethylene
	Nom. Thickness	0.215mm
	Insulation Dia.	Φ0.95±0.05mm
	Elongation	≥300%
	Color Cord	Pair 1:White-Blue & Blue; Pair 2:White-Orange & Orange Pair 3:White-Green & Green; Pair 4:White-Brown & Brown
Paired	Length of Lay	<30mm
Filled	Jelly filled	No
Cabling	Order of the Pair	See the Cross Section
Out Sheath	Sheath Material	PVC (Flame Retardant / RoHS ...)
	Color	Yellow
	Rip Cord	200D×3
	Nom. Thickness	0.60±0.05mm
	Min. Thickness	0.55mm
	Max. overall Dia.	Φ5.30±0.3mm
