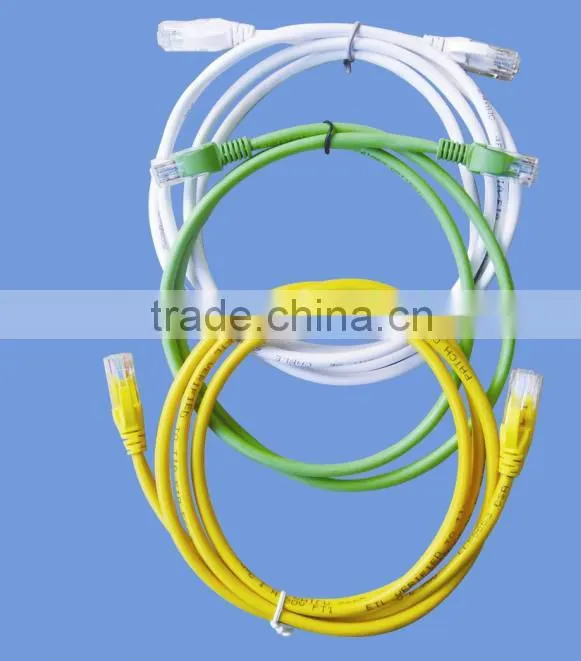

Factory price cat6 right angle patch cable 2m 3m 5m

Specifications

Factory price cat6 patch cord 2m 3m 5m
1.Type: Cat5, Cat5e, Cat6
2.UTP, FTP, SFTP
3.Verified to EIA/TIA.

Factory price cat6 patch cord 2m 3m 5m





specification:

with rj45 8P8C Connector

Rated Temperature:75Degree

Standard:UL,TIA/EIA 568B.2  YD/T1019-2001

Conductor:Stranded bare copper

AWG:24

Insulation:HDPE

Shield:Pe-Tape+Al foil +Pe-Tape

Twisted pair:Four

Drain wire:Solid Tinned copper

Jacket:PVC

Rip cord:Per request



Electrical Characteristic:

1.0-100.0MHz Impedance(ohms):100+/-15

1.0-350.0MHz Delay Skew(ns/100m)<=45

Pair-to-Ground Capacitance Unbalance (pf/100m)<=330

Max.Conductor DC Resistance 20degree(ohms/km):93.8

Resistance Unbalance(%)<=5



Application:

100 Base-T4

100Bsdr-TX

100VG-AnyLAN

155Mbps ATM

622Mbps ATM



Pictures for show:
