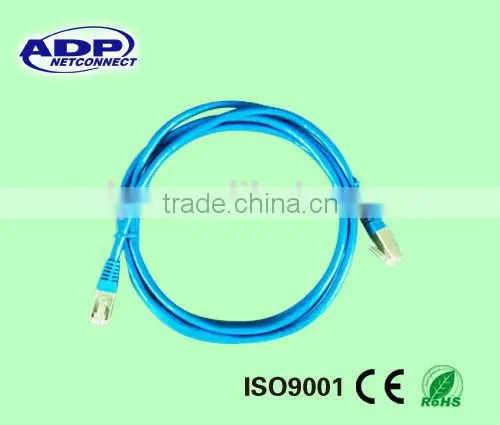

China Factory High Speed Cat6+ Patch Cable Bare Copper CCS Patch Cord

US$ 0.12 - 0.87 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ADP

Model Number:

Cat6

Shenzhen ADP Cables Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ADP

Model Number Cat6

Type Cat 6

Number of Conductors 8

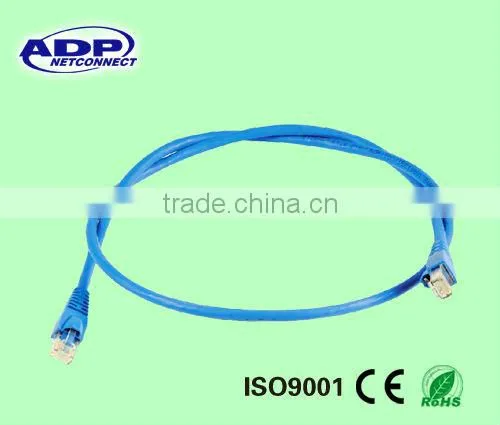

China factory high speed Cat6+ patch cable bare copper CCS patch cord

Product Description

Professional Network Cable Parametric Test

Item	China factory cat6 utp patch cord
Applications:	I IEEE 802.3: 1000 base-T, 100 base-TX, 10 base-T, PoE, PoE+
	CCDDI, Token Ring, ATM, CCTV, Digital video
	Ethernet Router, Broadband, baseband analog video
Features:	Performance: UTP, FTP, and SFTP
	The cable standard provides performance of up to 100 MHz For 10BASE-T, 100BASE-TX (Fast Ethernet) and 1000BASE-T (Gigabit Ethernet)
	Foil shield reduces electromagnetic interference (EMI) for optima
Constructions	Diameter:CMR (non-plenum): 0.260 mm CMP (plenum): 0.255mm
	Shield: Aluminum Foil/Mylar,Braid with bare copper Drain wire:26 AWG stranded solid tinned copper
	Conductors: 23 AWG solid bare annealed copper
Insulation:	Non-plenum: polyolefin Plenum: fluoro polymer
Color code	Pair 1: Blue-white/blue, Pair 2: Orange-white/orange Pair 3: Green-white/green, Pair 4: Brown-white/brown
Inside Constructions	Separator: cross-web Core wrap: barrier tape Shield: aluminum foil mylar Drain wire: 24 AWG stranded tinned copper
Jacket:	Non-plenum: flame-retardant PVC Plenum: low-smoke, flame-retardant PVC
Electrical characteristics:	100% FLUKE tested and certified
	DC resistance: max 9.38/100m (328ft) @ 20C
	Delay skew: 45ns/100m
	Velocity of propagation: CMP 72% speed of light ,CMR 70% speed of light Characteristic Impedance: 100+-15 ohms (frequency 1-100MHz)
