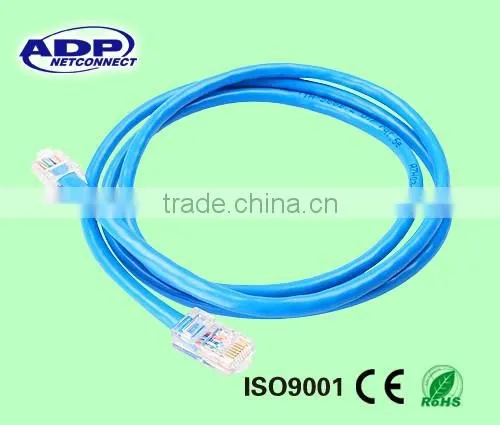

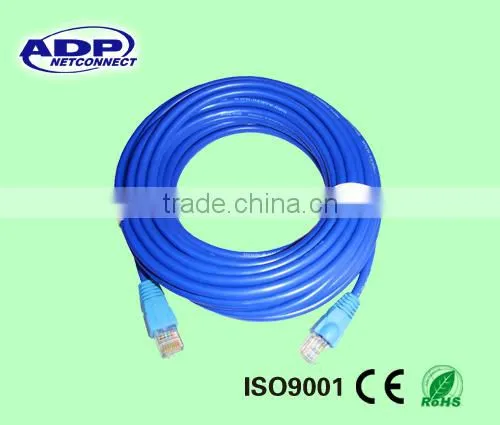

Patch Cord Cat5e Network Cable

US$ 0.11 - 0.62 MOQ: 1000 Meters

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

D08-FKB03

Shenzhen ADP Cables Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number D08-FKB03

Type Electrical Plug

Grounding Standard Grounding

Rated Voltage 100-250V

Rated Current 10A

Application Other, Residential / General-Purpose, CCTV

Patch cord Cat5e network cable

Product Description

Category 5e cable (Cat 5e) is a twisted pair of cables for carrying signals

The cable standard provides performance of up to 100MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet) and 1000BASE-T (Gigabit Ethernet)

Item	OEM UL approved lan cable cat5e patch cord UTP/FTP/SFTP network cable
Applications:	I IEEE 802.3: 1000 base-T, 100 base-TX, 10 base-T, PoE, PoE+
	CCDDI, Token Ring, ATM,CCTV, Digital video
	Ethernet Router, Broadband, baseband analog video
Features:	Performance: UTP, FTP, and SFTP
	The cable standard provides performance of up to 100 MHz For 10BASE-T, 100BASE-TX (Fast Ethernet) and 1000BASE-T (Gigabit Ethernet)
	Foil shield reduces electromagnetic interference (EMI) for optima
Constructions	Diameter:CMR (non-plenum): 6.5 ± 0.2mm CMP (plenum): 5.5 ± 0.2mm
	Shield: Aluminum Foil/Mylar,Braid with bare copper Drain wire:26 AWG stranded solid tinned copper
	Conductors: 26AWG/24AWG solid bare annealed copper
Insulation:	HD-PE
Color code	Pair 1: Blue-white/blue Pair 2: Orange-white/orange Pair 3: Green-white/green Pair 4: Brown-white/brown
Jacket:	Flame-retardant PVC
Electrical characteristics:	100% FLUKE tested and certified
	DC resistance: max 9.38/100m (328ft) @ 20C
	Delay skew: 45ns/100m
	Velocity of propagation: CMP 72% speed of light ,CMR 70% speed of light Characteristic Impedance: 100+-15 (frequency 1-100MHz)
