Cheap and Hot Sale 5v/12v24v Brushless dc Fan

Name: Cheap and Hot Sale 5v/12v24v Brushless dc Fan
Brand: SON TIMES
SKU: 100834395

US$ 0.28 - 1.3 MOQ: 1000 Pieces

Key Specifications

Electric Current Type:

Mounting:

Free Standing

Blade Material:

Plastic

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type DC

Mounting Free Standing

Blade Material Plastic

Place of Origin Guangdong, China

Brand Name SON TIMES

Model Number ST5010HS

Voltage 5V/ 12V/24v

Power 0.4-1.3W

Air Volume 8.96-11.2CFM

Speed 3500-4500RPM

Certification CE

Specifications

1. cheap and hot sale brushless dc fan
2.size:50*50*10mm
3.sleeve,ball bearing
4.rated voltage:5v/12v/24v
5.low noise

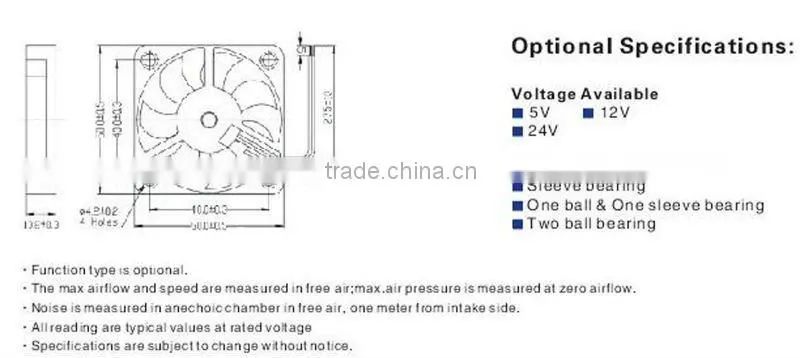

Frame size(mm)	505010mm
Bearing type	ball bearing/sleeve
Rated voltage	12/24v
Rated speed	3500-4500RPM
Max air flow	25-30CFM
Max pressure	0.07-0.11inch-H2O
Max noise	29-33dBA
Functions	by impedance,FG
Safety approvals	CE ROHS
Dielectric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
Insulation resistance	100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature	-10~80 degree C(+14~176 degree F)
Storge temperature	-40~75 degree C(-40~167 degree F)
Protection	Motor protection and polarity protection
Lead wire	UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30
fan blade material	Black PBT (UL94V-0) glass filled
frame material	Aluminium alloy
Weight	20g
