Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > Competitive Price dc Cooling Fan 3v 5v 12v 40*10mm

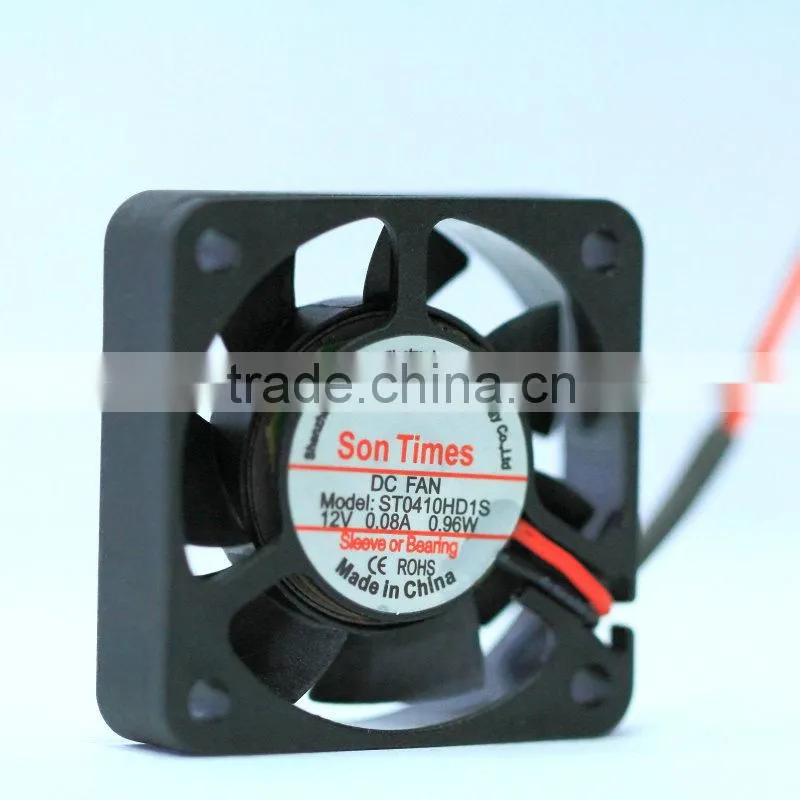

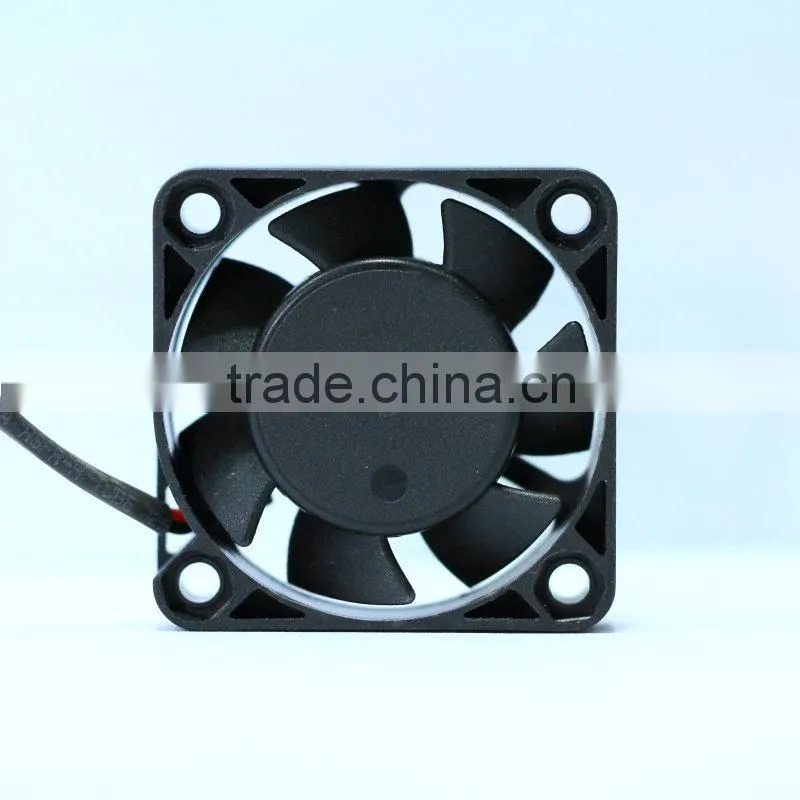

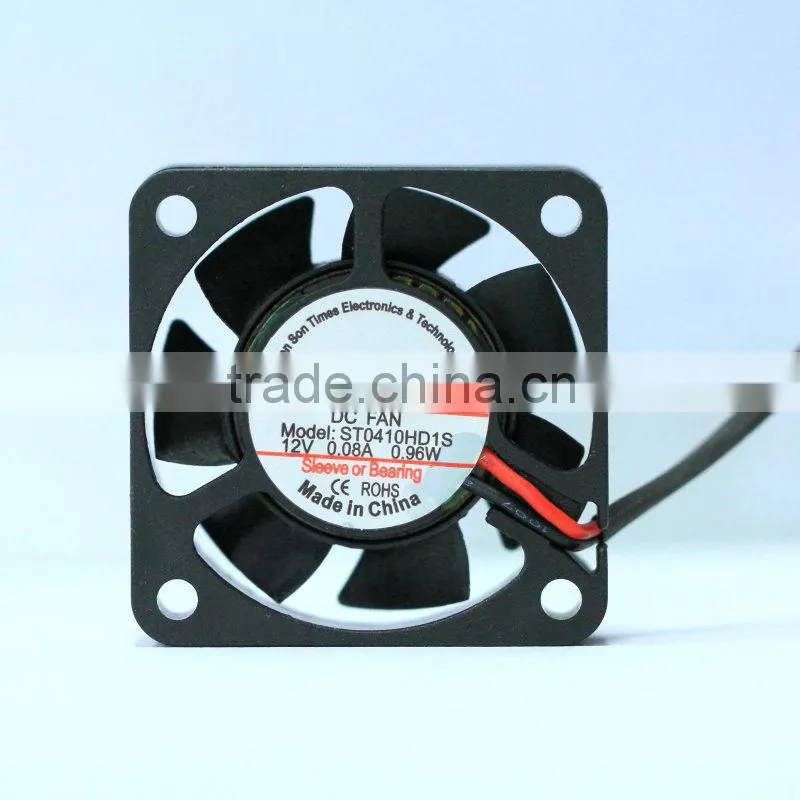

Competitive Price dc Cooling Fan 3v 5v 12v 40*10mm
US$ 0.3 - 1.2
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Free Standing
Blade Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Energy-saving,,humidifier Mist Fan 12v 24v 40*20mmUS$ 0.55 - 1MOQ: 1000 Pieces -
Low Noise Cooling Fan 12v 24v 80*25mmUS$ 0.4 - 1.5MOQ: 1000 Pieces
-
Large Airflow, Low Noise dc Brushless Fan 120*120*38mmUS$ 2.5 - 3MOQ: 1000 Pieces
-
Cheap 12v dc Axial FanUS$ 0.25 - 0.5MOQ: 1000 Pieces
-
Induction Cooker FanUS$ 0.4 - 0.6MOQ: 1000 Pieces
Electric Current Type
DC
Mounting
Free Standing
Blade Material
Plastic
Place of Origin
Guangdong, China
Brand Name
SON TIMES
Model Number
ST4010HS
Voltage
3v 5v 12v
Power
0.45-1.2W
Air Volume
15-25CFM
Speed
8000RPM
Certification
CE, ROHS, CE

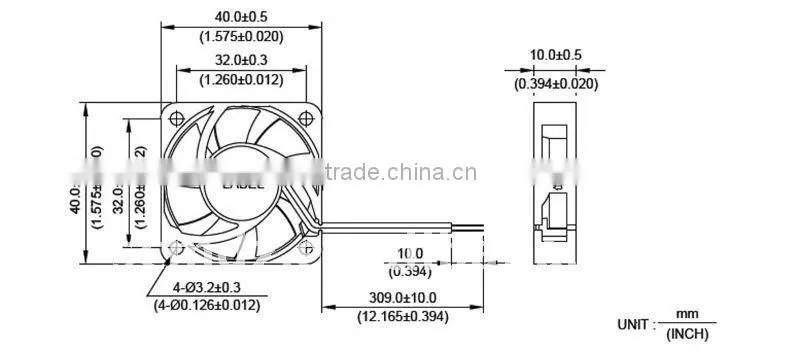

Frame size(mm) |
40*40*10mm |
| Bearing type | hypro bearing |
| Rated voltage | 5v/12v/24v |
| Rated speed | 4500-9500RPM |
| Max air flow | 15-25CFM |
| Max pressure | 0.10-0.12inchH2O |
| Max noise | 25-35dBA |
| Functions | by impedance,by IC, FG,RD,PWM |
| Safety approvals | CE ROHS |
| Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
| Insulation resistance | 10M ohm between lead wire and frame(DC 500V) |
| Life expectancy(ball bearing) | 7000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Operation temperature | -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
| Storge temperature | -40~75 degree C(-40~167 degree F) |
| Protection | Motor protection and polarity protection |
| Lead wire | UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
| Plastic material | PBT |
competitive price dc cooling fan 3v 5v 12v
