Large Airflow, Low Noise dc Brushless Fan 12012038mm

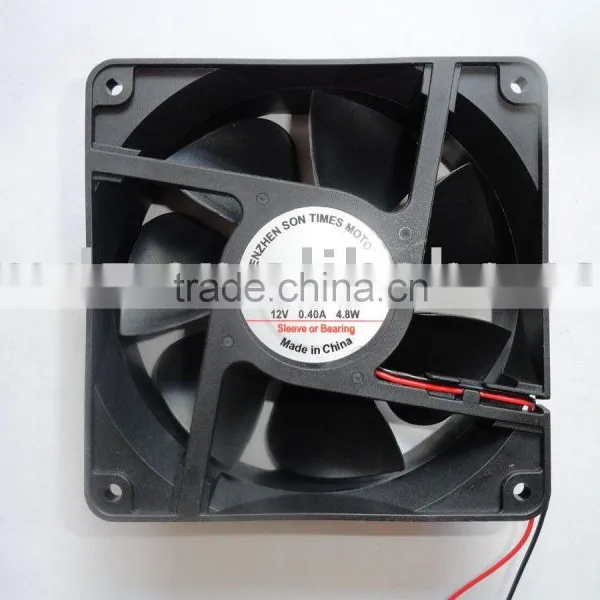

Name: Large Airflow, Low Noise dc Brushless Fan 120*120*38mm
Brand: son times
SKU: 100833449
Availability: InStock

US$ 2.5 - 3 MOQ: 1000 Pieces

Key Specifications

Application:

Other, case

Type:

Fan

Heatsink Material:

Aluminum

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Application Other, case

Type Fan

Heatsink Material Aluminum

Brand Name son times

Model Number ST12038HB

Place of Origin Guangdong, China

Specifications

1.large airflow low noise dc brushless fan

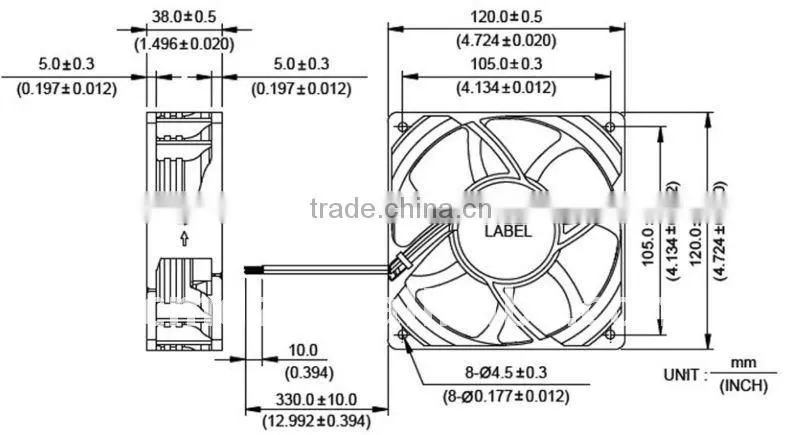

2.szie:120*120*38mm
3.Sleeve,ball bearing
4.good quality
5.Rated voltage:12/24v

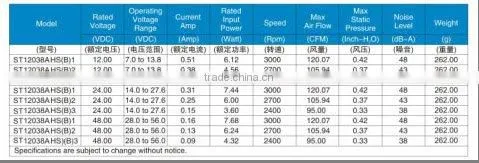

1	Frame size(mm)	12012038mm
2	Bearing type	sleeve,hypro bearing,ball bearing
3	Rated voltage	12V/24V/48V
4	Rated speed	1500-3200RPM
5	Max air flow	122CFM
6	Max pressure	10.mmAq
7	Max noise	48dBA
8	Functions	by impedance,FG
9	Safety approvals	CE ROHS UL
10	Dielectric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
11	Insulation resistance	100M ohm between lead wire and frame(DC 500V)
12	Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
13	Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
14	Operation temperature	-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F)
15	Storge temperature	-40~75 degree C(-40~167 degree F)
16	Protection	Motor protection and polarity protection
17	Lead wire	UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26
18	Plastic material	PBT
