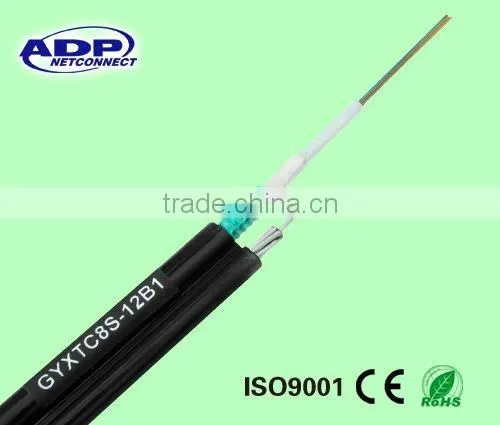

Self-Supporting Gyxtc8s Fig 8 Fiber Optic Cable

Name: Self-Supporting Gyxtc8s Fig 8 Fiber Optic Cable
Brand: ADP&OEM
SKU: 100832445
Availability: InStock

US$ 0.01 - 1 MOQ: 3 Kilometers

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ADP&OEM

Model Number:

ADP0001112

Shenzhen ADP Cables Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ADP&OEM

Model Number ADP0001112

Recommended Laying methods

Self-support aerial

Applicable fields

Long distance communication and LAN

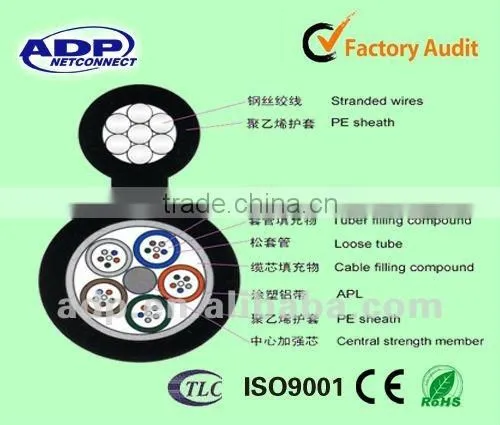

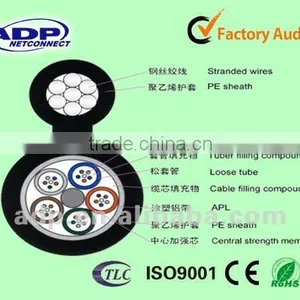

Structure Characters

Water proof layer between steel tape and cable core 8 .Figure cross section

Steel messenger wire

Double coated PE corrugated steel tape under PE sheath

Properties

Excellent water proof layer

Steel tape armored ,Excellent Anti-crush properties

Good anti-bullet properties

Messenger wire as the support member made excellent

Anti-pull performance and easy installation

Fiber range: 2-288 core

Technical data:

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(°C)
2	3.8×5.5	52.00	1000	200	1000	200	20D	10D	-40+60
4	3.8×5.5	52.00	1000	200	1000	200	20D	10D	-40+60
6	3.8×5.5	52.00	1000	200	1000	200	20D	10D	-40+60
8	3.8×5.5	52.00	1000	200	1000	200	20D	10D	-40+60
12	3.8×5.5	52.00	1000	200	1000	200	20D	10D	-40+60

Optical Characteristics
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive dispersion shifted single-mode fiber
