Specifications
G.652D Breakout Fiber Optical Cable1.RoHS compliant
2.Anti-corrosion&water
3.ICE 60332-1 safety
Let ADP be your Top 1 choice for the whole cable business.
Fiber Optic Cable,LAN Cable, Power Cable,Coaxial Cable, Security Cable.

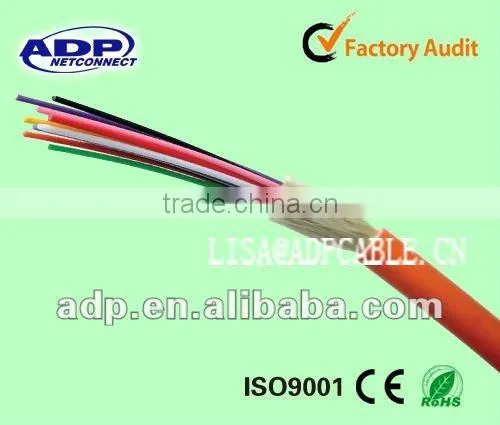

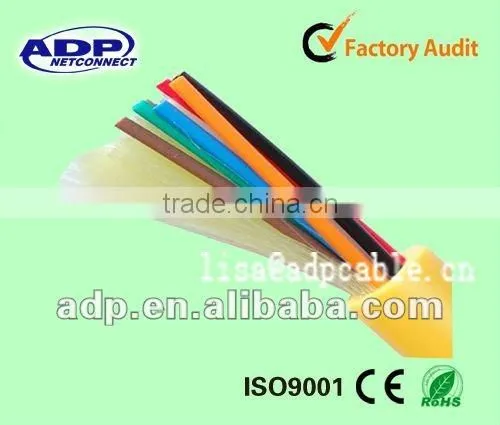

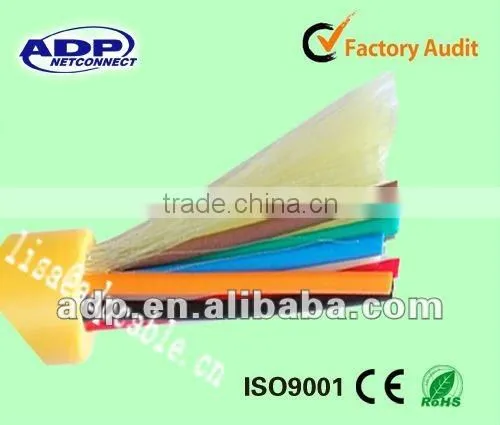

24 core G.652D Breakout Fiber Optical Cable:
Descriptions:

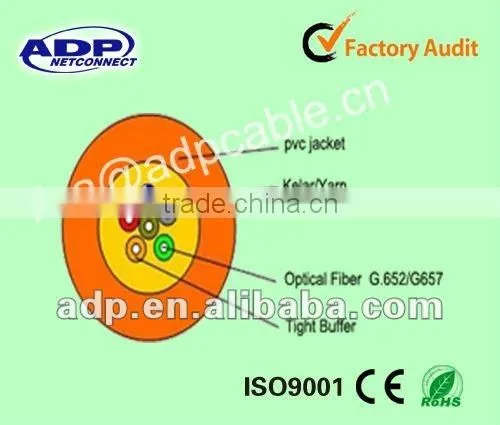

Multi Fiber Break-out Cable use simplex cable as subunit, A fiber reinforced plastic (FRP) locates in the center of core as a con metallic strength member. The subunits are stranded around the cable core. The cable is completed with a flat PVC or LSZH jacket.
Technical Advantages:
- Stranded non-metallic strength member structure ensure the cable endure larger tensile strength.
- The jacket anti-corrosion, anti-water, anti-ultraviolet retardation, flame retardant and harmless to environment etc;
- All dielectric structure protect it from electromagnetic influence
- Scientific design with serious processing art.
Application:
- Indoor any purpose cabling;
- Backbone distribution cable in building.
- Installation: wall, interlayer, pipe, trough, duct
Technical Parameters:
Cable count |
Cable size |
Cable weight |
Tensile N |
Crush Resistance (N/100mm) |
Min. Bend Radius (mm) |
|||
Long Term |
Short Term |
Long Term |
Short Term |
dynamic |
static |
|||
4 |
7.0 |
38 |
130 |
440 |
200 |
1000 |
20D |
10D |
6 |
8.2 |
57 |
130 |
440 |
200 |
1000 |
||
8 |
9.8 |
91 |
150 |
500 |
200 |
1000 |
||
10 |
11.0 |
120 |
180 |
550 |
200 |
1000 |
||
12 |
12.5 |
145 |
200 |
600 |
200 |
1000 |
||
Note:
Transport/ Storage/ Operating Temperaturee:-40°c ~+ 70 °c
Order Information:
- Jacket material: PVC (Environmental lame-retardant polyvinylchloride), LSZH (Environmental low smoke zero halogen flame retardant polyolefin), or other customized material.
- Jacket color: blue, orange, green, brown, gray, red, black, yellow, and violet, pink, aqua.
- Fiber type: B1-G.652, B1.3-G.652.D, B4-G655, A1-50/125μm, A1b-62.5/125μm, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1- EasyBad G.657, E1.1- EasyBad Plus G.657, etc.
- Cable Dimension: the nominal cable dimension, or other customized dimension;
- MOQ: 1km~2km, or other customized
