All-dielectric Self-support ADSS Cable fiber optical cable
Product's Specification

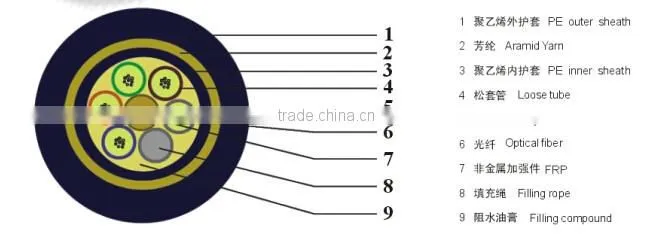

ADss Cable is loose tube stranded Fibers,250um, are positioned into a loose tube made of high modulus plastics.The tubes are filled with a water-resistant filling compound.The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound,it is covered with thin PE(Polyethylene) inner sheath.After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE and AT(anti-tracking) outer sheath.Application:Aerial
1.Loose tube design
Stable performance and compatibility with all common fiber types
2. Self-supporting
Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.
3.Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.
4.Sutable for Aerial self-support installation
5.Large span lengths and the largest span is over 1000m
6.Good performance of tensile strength and temperature,the desigh life span is over 30 years.

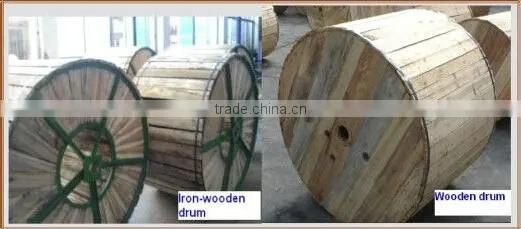

Packing:
Wooden drum, 2000m to 6000m/drum or as you required

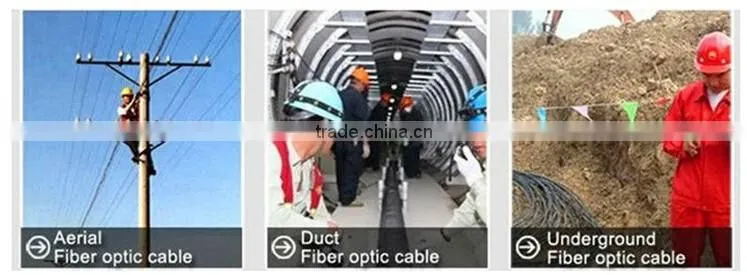

Application:
In most instances,ADSS cables are installed at existing power lines. The only way for ADSS installation is to suit existing poles/tower condition to find limited space for installation.
Besides optical transmission performance design, two aspects of ADSS application design are:

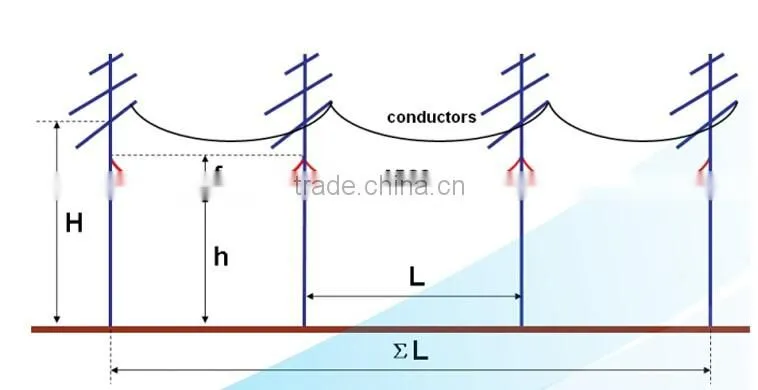

–Span-tension-Sag design of ADSS
–Installation position consideration of ADSS
