Specifications
Flat razor wire1.BTO-10 12 18 22 28 30 CBT-60 65
2.Material: galvanized
3.Wire diameter: 2.5mm
4.Straight line, cross
Hot Dipped Galvanized Flat Razor Wire Factory Price
Hot dipped galvanized razor wire is the most popular high security fencing for military and high grade residences safety.
Blade type: Long blades, short blades and medium sized blades.
Razor wire supplied in material: electro galvanized, hot-dipped galvanized or stainless steel.
Razor wire in the form of straight line, crossed coil razor wire, single coil concertina razor wire, flat wrap razor wire.
Straight type razor wire: Straight from spiral razor barbed wire. It is easy to install while saving the cost.

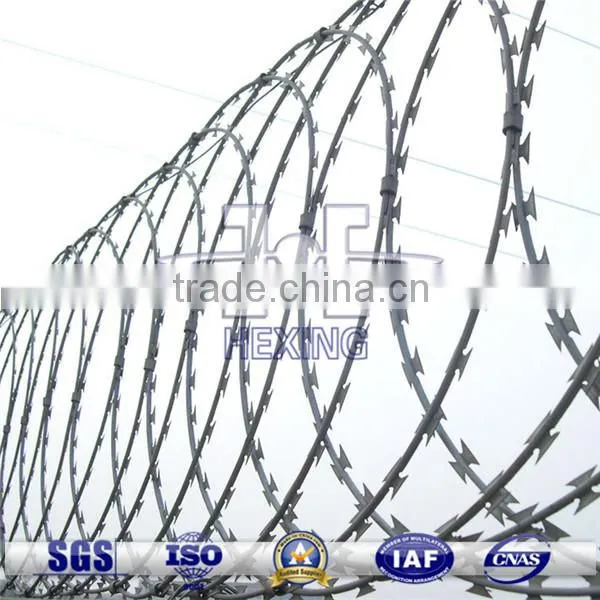

Spiral razor wire is installed without clips, it can be installed in its natural loops on walls, which looks beautiful and practical.
Crossed razor wire is made of two pieces of razor wire, which is buttoned by the heavy clips. It can be made into different crossed type in different diameter and widely used in high wall or bounding wall, it has good effect on insulating and protecting.
Flat razor wire fence is the new application for razor wire. It is practicable and beautiful. It can be used together with the straight type razor barbed wire to form protecting wall. Razor barbed wire in flat wrap type is mainly used in warehouse, stock farm, farm, mine, prison, national defense, etc.
Razor Blade Specification | ||||||
Reference Number | Blade Style | Thickness | Wire Dia | Barb | Barb | Barb |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 12±1 | 13±1 | 26±1 | |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 34±1 | |
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 34±1 | |
CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 96±2 | |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 | |
Razor Wire Specification | ||||
Loop Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
450mm | 33 | 7-8M | CBT-60.65 | Single coil |
500mm | 56 | 12-13M | CBT-60.65 | Single coil |
700mm | 56 | 13-14M | CBT-60.65 | Single coil |
960mm | 56 | 14-15M | CBT-60.65 | Single coil |
450mm | 56 | 8-9m(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 10-11M(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
