Coil Diam 450mm, 600mm Galvanized CBT-65 Concertina Razor Wire

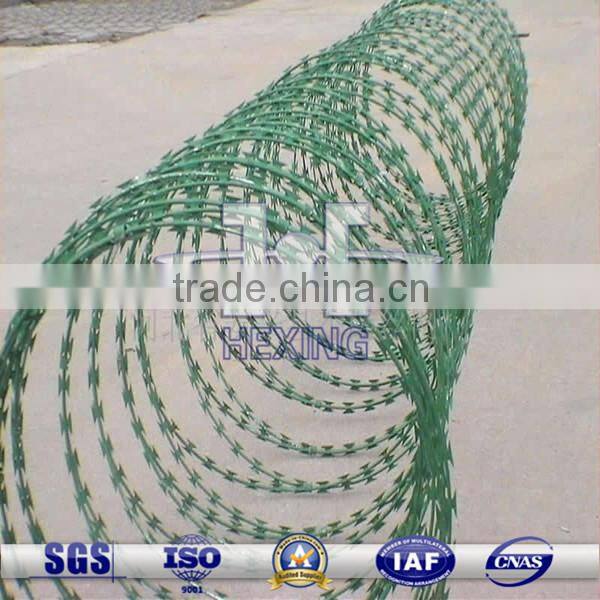

Coil Diam 450mm, 600mm Galvanized CBT-65 Concertina Razor Wire photo-1
US$ 750 - 850 MOQ: 5 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Hexing
Model Number:
HX1310182
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Hexing
Model Number HX1310182
Material Iron Wire
Surface Treatment Galvanized
Type Barbed Wire Coil
Razor Type Cross Razor

Specifications

Concertina razor barbed wire
1.Type: CBT-65
2.Treatment: hot dip galvanized
3.Use: on the top of fence mesh
I4.SO9001

coil diam 450mm, 600mm galvanized CBT-65 concertina razor wire



Razor wire is the most popular high security fencing for military and high grade residence safety.
Razor Blade type: Long blades, short blades and medium sized blades.
Razor barbed wire supplied in material: electro galvanized, hot dipped galvanized or stainless steel.
Razor barbed wire in the form of straight line, crossed coil razor wire, single coil concertina razor wire, flat wrap razor wire.
Straight type razor barbed wire is straightened from spiral razor barbed wire. It is easy to be installed while saving the cost.
Spiral razor barbed wire is installed without clips, it can be installed in its natural loops on walls, which looks beautiful and practical.
Crossed razor barbed wire is made of two pieces of razor wire, which is buttoned by the heavy clips. It can be made into different crossed type in different diameter and widely used in high wall or bounding wall, it has good effect on insulating and protecting.

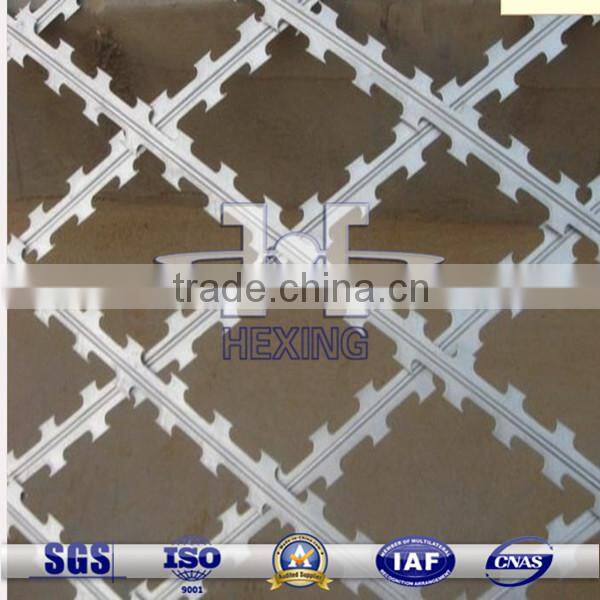

Flat razor barbed wire coil is the new application for razor wire. It is practicable and beautiful. It can be used together with the straight type razor barbed wire to form protecting wall. Razor barbed wire in flat wrap type is mainly used in warehouse, stock farm, farm, mine, prison, national defense, etc.



Razor Blade Specification

Reference Number

Blade Style

Thickness

Wire Dia

Barb
Length

Barb
Width

Barb
spacing

BTO-10

coil diam 450mm, 600mm galvanized CBT-65 concertina razor wire

0.5±0.05

2.5±0.1

12±1

13±1

26±1

BTO-12

coil diam 450mm, 600mm galvanized CBT-65 concertina razor wire

0.5±0.05

2.5±0.1

12±1

15±1

26±1

BTO-18

coil diam 450mm, 600mm galvanized CBT-65 concertina razor wire

0.5±0.05

2.5±0.1

18±1

15±1

33±1

BTO-22

coil diam 450mm, 600mm galvanized CBT-65 concertina razor wire

0.5±0.05

2.5±0.1

22±1

15±1

34±1

BTO-28

coil diam 450mm, 600mm galvanized CBT-65 concertina razor wire

0.5±0.05

2.5±0.1

28±1

15±1

34±1

BTO-30

coil diam 450mm, 600mm galvanized CBT-65 concertina razor wire

0.5±0.05

2.5±0.1

30±1

18±1

34±1

CBT-60

coil diam 450mm, 600mm galvanized CBT-65 concertina razor wire

0.6±0.05

2.5±0.1

60±2

32±1

96±2

CBT-65

coil diam 450mm, 600mm galvanized CBT-65 concertina razor wire

0.6±0.05

2.5±0.1

65±2

21±1

100±2

Barbed Tape Wire Specification

Loop Outside Diameter

No. of Loops

Standard Length per Coil

Type

Notes

450mm

33

7-8M

CBT-60.65

Single coil

500mm

56

12-13M

CBT-60.65

Single coil

700mm

56

13-14M

CBT-60.65

Single coil

960mm

56

14-15M

CBT-60.65

Single coil

450mm

56

8-9m(3 CLIPS)

BTO-10.12.18.22.28.30

Cross type

500mm

56

9-10M (3 CLIPS)

BTO-10.12.18.22.28.30

Cross type

600mm

56

10-11M(3 CLIPS)

BTO-10.12.18.22.28.30

Cross type

600mm

56

8-10M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

700mm

56

10-12M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

800mm

56

11-13M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

900mm

56

12-14M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

960mm

56

13-15M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

980mm

56

14-16M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type



coil diam 450mm, 600mm galvanized CBT-65 concertina razor wirecoil diam 450mm, 600mm galvanized CBT-65 concertina razor wirecoil diam 450mm, 600mm galvanized CBT-65 concertina razor wirecoil diam 450mm, 600mm galvanized CBT-65 concertina razor wire
