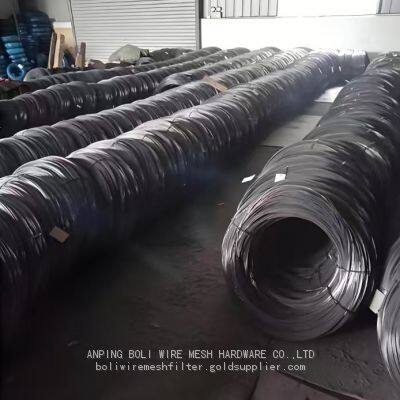

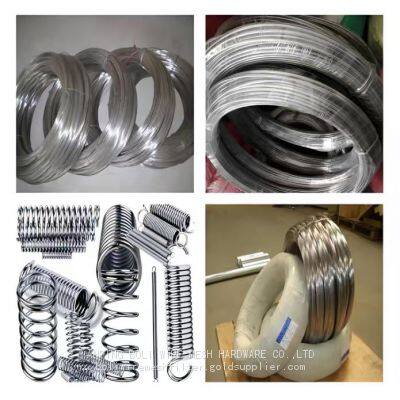

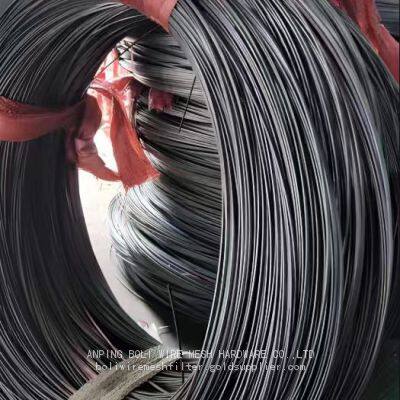

SWOSC-V Oil Tempered Wire Spring Steel Wire Stainless Steel Spring Wire High Fatigue-Resistant Spring Steel BOLI
Detailed Specifications
Outside Diameter:7mm
Free Length:20mm
Inside Diameter:3.5mm
color:bro
Service Life:1 ,000,000 times
Type: Super Heavy Load Spring
Features
1. It is especially designed for the stamping mold / plastic mold ;
2. It can have a powerful motivation in a small space to compare with the round wire coil spring .
3. It has the type of lightest load spring , light load spring, medium load spring , heavy load spring , super heavy load spring , hyper heavy load spring , and the hight deflection spring .
4. They are easy for choosing because they are coating by their own different color.The SWOSC-V material has the performance of high stress , high amplitude and the excellent heat resistance , the durability is improved compare with the shot peening process.
Choosing Method
Take the exactly 4 data for Working Load, Spring Outside Diameter, Using Time, and the Deflection before choose our BOLI Spring Steel.
For example:
1. Working Load 100kgf
2. Spring Outside Diameter 25mm
3. Using Time 1,000,000-time Use
4. Deflection 25mm
Outer Diameter | Inner Diameter | Freedom Length | load | Squareness | Direction of Wind | |
≤50mm | ≥55mm | |||||
+0 mm | +0.7 mm | ±0.5mm | ±1% | ±10% | ≤2° | Right Hand Coil |
-0.7mm | +0.1 mm |
free length | Outer Diameter | ||||||||||||||||||||
6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 18 | 20 | 22 | 25 | 27 | 30 | 35 | 40 | 50 | 60 | |
10 | 119.50 | 162.00 | 189.00 | 221.00 | |||||||||||||||||
15 | 58.84 | 79.67 | 110.81 | 126.00 | 147.10 | 167.00 | 189.27 | ||||||||||||||
20 | 44.13 | 59.75 | 83.06 | 94.50 | 110.32 | 125.25 | 142.20 | 161.70 | 183.87 | 212.25 | 245.17 |
