Specifications

Host Port Connector: Combo VGA
Host Ports: 16
Console Type: PS/2 or USB
Max. Distance (KVM Switch -- Host): 16 feet (5m)

Name of commodity:  16 port 3 in 1 combo free kvm switch

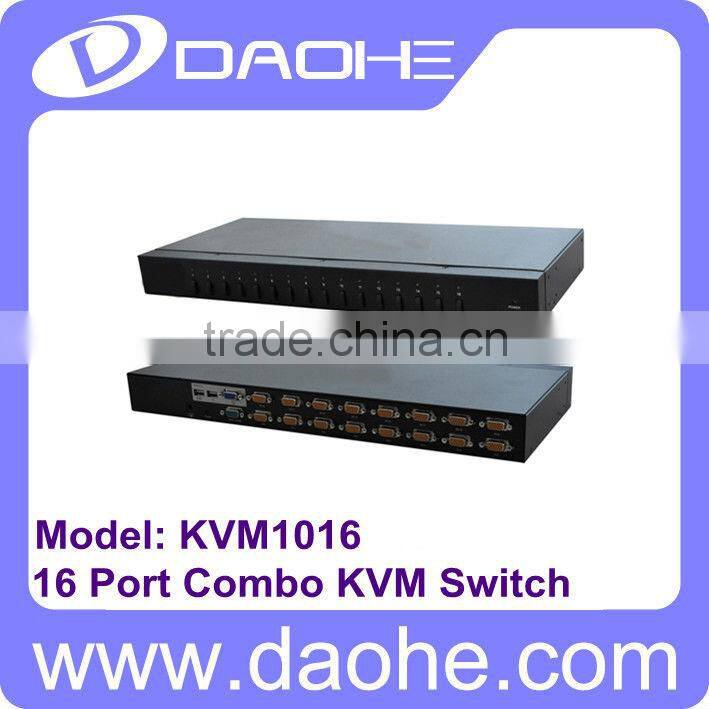

Model: KVM1016

Introduction

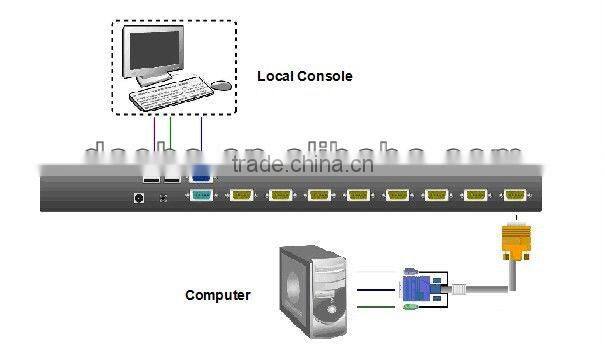

The Combo KVM Switch (hereinafter refers to as "KVM Switch"), can control attaching servers and computers from

local console. This KVM Switch is loaded with features such as one local console, daisy chain, OSD (On Screen Display) menu, password security, hotkey control, push button and auto scan control. It has complete keyboard and  mouse emulation for simultaneous computer boot-up processes.



Features



¨ 16-port combo KVM Switch



¨ Support one local console



¨ Support Microsoft Windows, Netware Unix and Linux



¨ Support iMAC, Power MAC and Sun Micro Systems with USB port



¨ No software required: easy computer selection via OSD (On Screen Display) menu, push buttons and hotkeys



¨ Provide various hotkey (Scroll-Lock/ Caps-Lock/ Num-Lock/ Alt/ Ctrl/ Win) for switching computer port and other  control functions, so Hotkey function can be used in various types of keyboards, and to avoid Hotkey duplicate  problem



¨ Support two levels of password security protections



¨ Provide ACL (Access Control List) security function, store up to 8 independent ACLs of controllable computer lists



¨ Hot Plug: add or remove connected computers without powering off the KVM Switch or computers



¨ Plug-n-Play monitor support



¨ Keyboard status restored when switching computers



¨ Support daisy chain up to 8 layers







Technical Specifications:





Host Port Connector	Combo VGA
Host Ports	16
Console Type	PS/2 or USB
Max. Distance                     (KVM Switch -- Host)	16 feet (5m)
VideoResolution                    (Local Console)	1920 x 1440

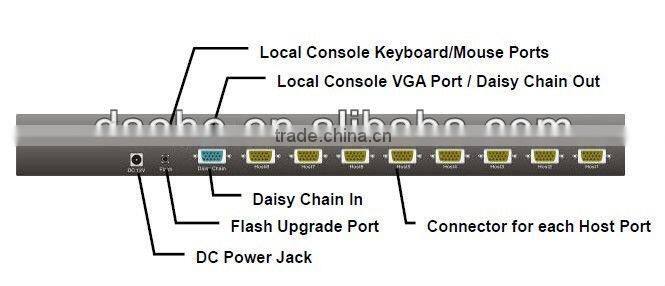

Flash Port	DC2.5F
Daisy Chain	Connector DB15 (Female Type)
	Support daisy chaining up to 8 layers
Computers Selection	On Screen Display (OSD) Menu, Hotkey, Push Button
Hotkey	Provide various Hotkey (Scroll-Lock/ Caps-Lock/ Num-Lock/ Alt/ Ctrl/ Win)
Computer Port LEDs	2 LEDs for each host port: ON LINE (Yellow), SATATION (Red)
Security	Provide ACL (Access Control List) security function, store up to 8 independent ACL’s of controllable computer lists
Multilingual OSD                   (On Screen Display)	8 languages (English, France, Germen, Spanish, Italian, Russian, Japanese, Simplified Chinese)
Auto-Scan Intervals	5 ~ 99 Sec.
Keyboard Emulation	USB
Mouse Emulation	USB
Max. Connected Computers	Up to 128 computers (16-port model * 8 layers)
Housing Material	Metal
DC Power Adapter	12V, 1A
Operation Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Humidity	0~80%, Non-Condensing
Mechanical	19” Rackmount, 1U
Dimension (mm)	444.5 x 190 x 44
