Specifications
Host Port Connector: Combo VGAHost Ports: 16
Console Type: PS/2 or USB
Max. Distance (KVM Switch -- Host): 16 feet (5m)
Name of commodity: 8 Port CAT5 PS/2+ USB modulized KVM Switch

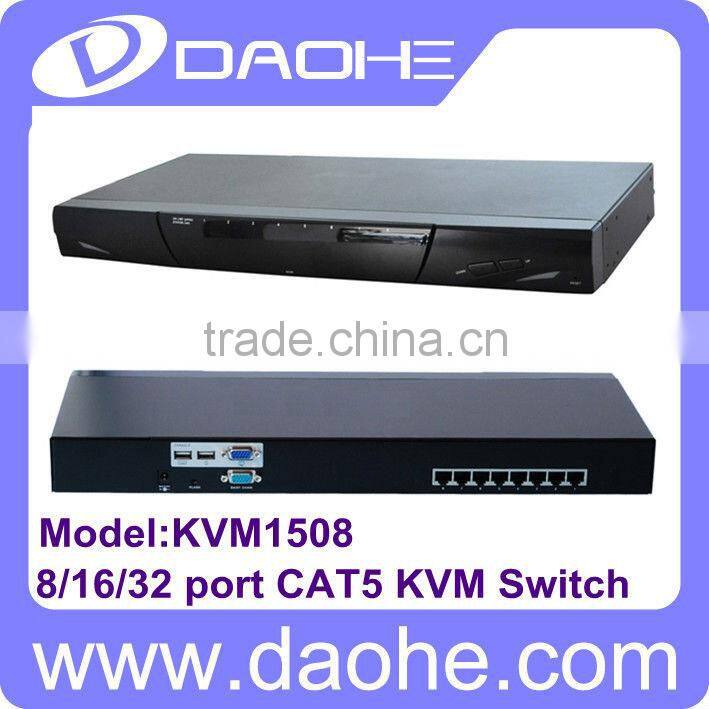

Model: KVM1508
Introduction

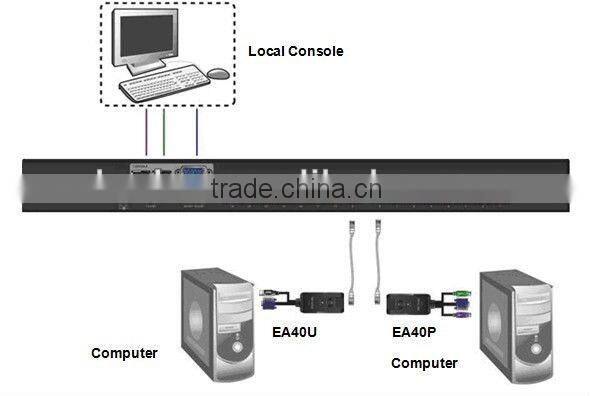

The CAT5 KVM Switch (hereinafter refers to as "KVM Switch"), can control attaching servers and computers from local console. This KVM Switch is loaded with features such as one local console, daisy chain, OSD (On Screen Display) menu, password security, hotkey control, push button and auto-scan control. It has complete keyboard and mouse emulation for simultaneous computer boot-up processes.
Features
¨ 8-port KVM Switch
¨ Support one local console
¨ Support Microsoft Windows, Netware and Linux with USB port
¨ Support iMAC, Power MAC and Sun Micro Systems with USB port
¨ No software required: easy computer selection via OSD (On Screen Display) menu, push buttons and hotkeys
¨ Provide various hotkey (Scroll-Lock/ Caps-Lock/ Num-Lock/ Alt/ Ctrl/ Win) for switching computer port and other control functions
¨ Support two levels of password security protections
¨ Provide ACL (Access Control List) security function, store up to 8 independent ACLs of controllable computer lists
¨ Hot Plug: add or remove connected computers without powering off the KVM Switch or computers
¨ Plug-n-Play monitor support
¨ Keyboard status restored when switching computers
¨ Support daisy chain up to 8 layers

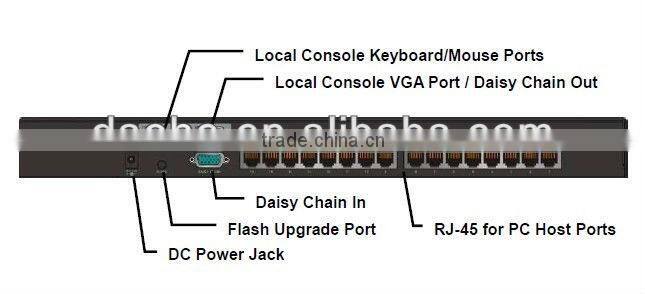

| Host Port Connector | RJ-45 |
| Host Ports | 8 |
| Local Console Type | USB |
| Console Type | PS/2 or USB |
| Max. Distance (KVM Switch -- Host) | 16 feet (5m) |
| Video Resolution (Local Console) | 1920 x 1440 |
| Flash Port | DC2.5F |
| Daisy Chain | Connector DB15 (Female Type) |
| Support daisy chaining up to 8 layers | |
| Computers Selection | On Screen Display (OSD) Menu, Hotkey, Push Button |
| Hotkey | Provide various Hotkey (Scroll-Lock/ Caps-Lock/ Num-Lock/ Alt/ Ctrl/ Win) |
| Computer Port LEDs | Bio-Color LEDs for each host port: ON LINE (Yellow), SATATION (Red) |
| 7-Segment LED | 1 for Bank display |
| Security | Provide ACL (Access Control List) security function, store up to 8 independent ACL’s of controllable computer lists |
| Multilingual OSD (On Screen Display) | 8 languages (English, France, Germen, Spanish, Italian, Russian, Japanese, Simplified Chinese) |
| Auto-Scan Intervals | 5 ~ 99 Sec. |
| Keyboard Emulation | USB |
| Mouse Emulation | USB |
| Max. Connected Computers via Daisy Chaining | Up to 256 computers (32-port model * 8 layers) |
| Housing Material | Metal |
| DC Power Adapter | 12V, 1A |
| Operation Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Humidity | 0~80%, Non-Condensing |
| Mechanical | 19” Rackmount, 1U |
| Dimension (mm) | 444.5 x 190 x 44 |
