Help Center17 Inch LCD CAT5 16 Port KVM Console
Related Products
Specifications
Number of Computers:16Daisy Chain: 8 level
Built-in Devices:KVM Switch
Display Screen:17"
Pointing Device:TouchPad
Model: KVM-1708C

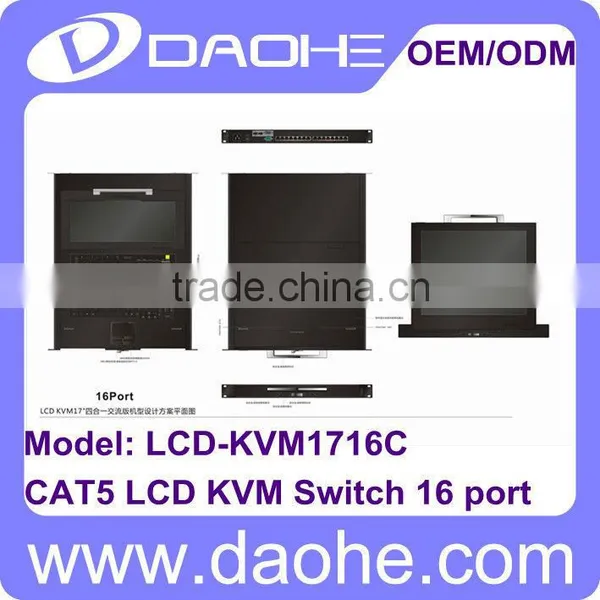

Name of Commodity: 17 inch LCD KVM Switch with CAT5 16 port
1. Introduction

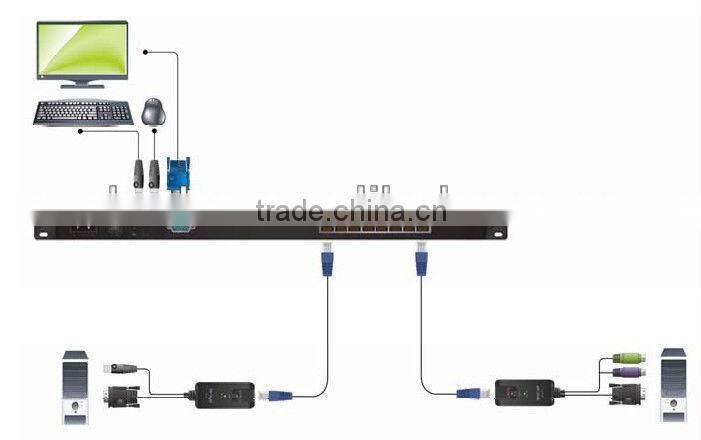

LCD-KVM1716C integrates104 keyboard, LCD display and touch pad in a drawer. A single LCD KVM 1716C can control up to 16 hosts, In addition, both have independent cascade connection port, so it can be connected in series to control 2048 hosts.All hosts connected can be accessed conveniently via OSD (On Screen Display) activated by keyboard or through hotkey combination input.
2. Functions & Features

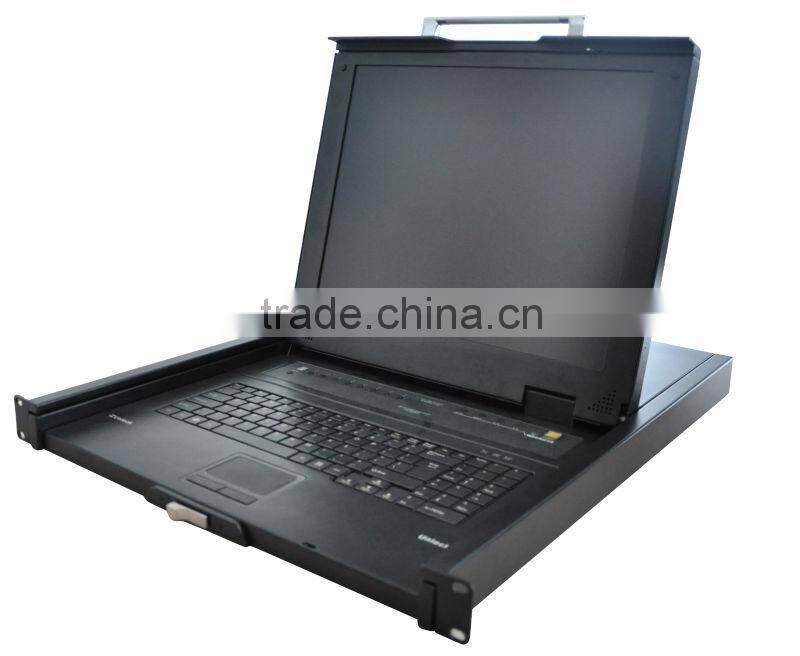

♦ A 4-in 1 console with 17" LCD display is integrated to a drawer type worktable of 1Uheight to facilitate rack installation.
Support mixed interface (PS/2 & USB) , facilitate computer port connection.
♦ Support MS windows, Netware, Unix and Linux.
♦ Support iMAC, Power MAC and Sun Micro system with USB connection.
♦ No software is needed. Select computer via OSD menu, button and hotkey.
♦ Provide multiple hotkeys(Scroll-Lock/ Cap-Lock/ Num-Lock/ Alt/ L-Ctrl/ L-Win/ R-Alt/R-Ctrl/R Win) to switch computer ports and activate OSD menu.
♦ Provide access control list function, capable of saving 8 independent user accounts.
♦ Support hot plug & play --- computer can be removed without having to shutdown the LCD console.
♦ Support two user levels, capable of searching computer/server name.
♦ Can save keyboard status information when switching computer.

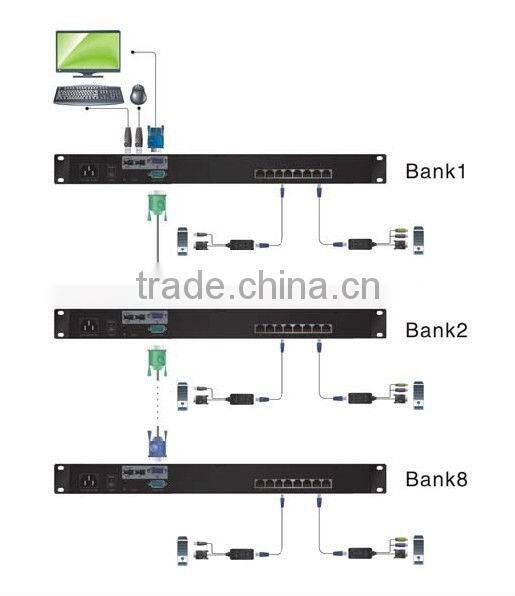

♦ Support daisy-chained serial connection (8 levels) and stacking cascade connection (2levels).
Product Specifications |
|||||
Features |
KVM1708C |
KVM1716C |
KVM1908C |
KVM1916C |
|
PC port connection |
HDB15 |
||||
PC ports |
8 |
16 |
8 |
16 |
|
Switching method |
OSD menu, hotkey and panel button |
||||
LCD control end and max distance with PC |
5m |
||||
LCD resolution |
1280 * 1024 DDC2B |
||||
Serial connection |
Support daisy-chained serial connection (8 levels) and stacking cascade connection (2 levels). |
||||
LED indicator |
Power indicator |
2 |
2 |
2 |
2 |
Selection indicator |
8 |
16 |
8 |
16 |
|
Boost on-line indicator |
8 |
16 |
8 |
16 |
|
Num Lock |
1 |
1 |
1 |
1 |
|
Caps Lock |
1 |
1 |
1 |
1 |
|
Scroll Lock |
1 |
1 |
1 |
1 |
|
Safety performance |
Provide access control list function |
||||
OSD menu supports multiple languages |
8 languages (English, France, Germen, Spanish, Italian,Russian, Japanese, Simplified Chinese) |
||||
Auto-scanning interval |
5 ~ 99 s |
||||
Keyboard/mouse simulation |
PS/2 or USB |
||||
Max PC connections |
512 |
2048 |
512 |
2048 |
|
Power supply |
AC220V |
||||
Housing |
Metal |
||||
Operating temperature |
0~50°C |
||||
Storage temperature |
-20~60°C |
||||
Humidity |
0~95%, Non-Condensing |
||||
Weight(kg) |
15.1 |
16.1 |
17.5 |
18.4kg |
|
Space |
19” rack 1U |
||||
Dimension (L x W x H) |
580 * 450* 42 (mm) |
||||

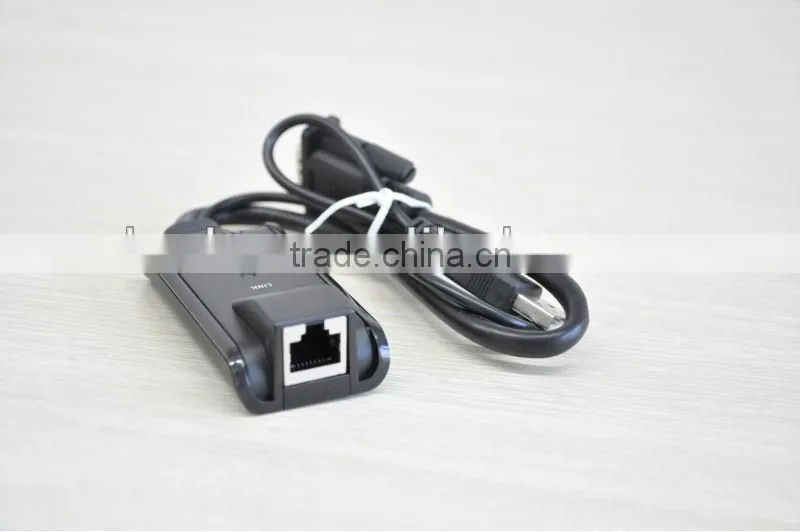

USB Cable

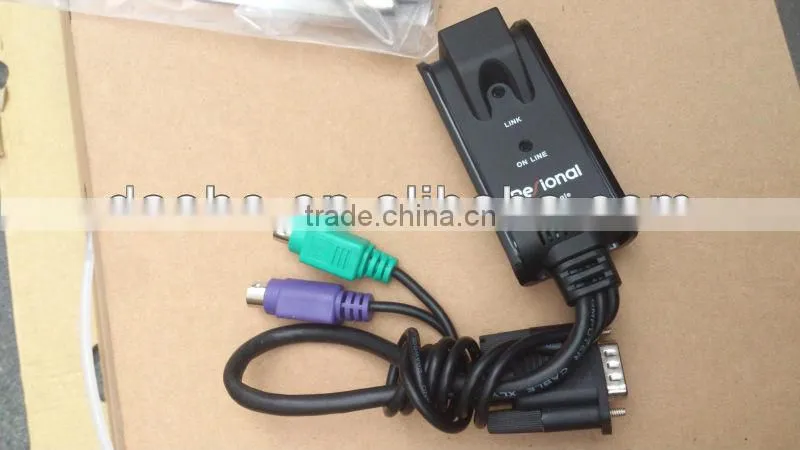

PS/2 Cable
