Made in China 2 port kvm switch
Introduction:

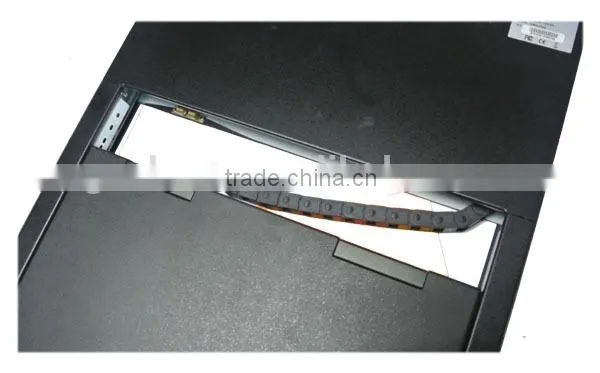

- Withdrawing installation design, the length can be adjusted to fit the rack space.
- Humanized design,can be installed and removed by only one person, which improves the efficiency of the administrator.
- To switch the host computer though the hotkey or OSD menu, which can manage up to 512 pcs
- Support Password security protection, only authorized users can view and manage on-line computer.
- Support a variety of brand industrial computer and the server: EVOC/Lenovo/IBM/DELL/HP/SUN, etc
- Support various operating system: Microsoft, Linux, Unix, etc.
Features:

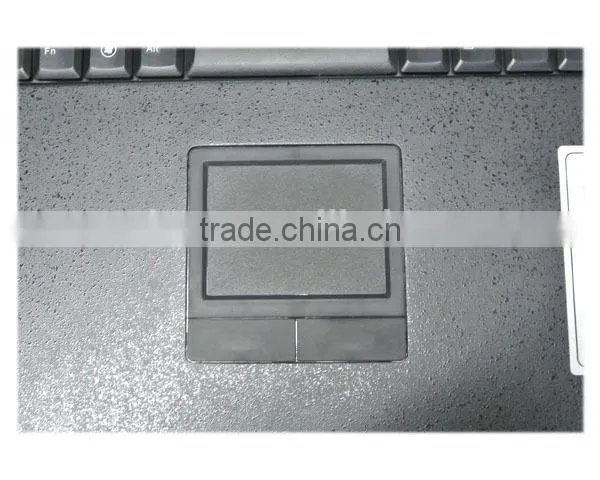

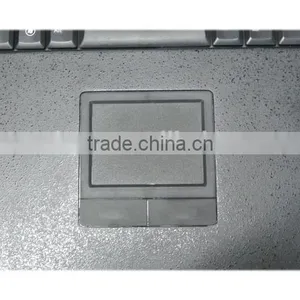

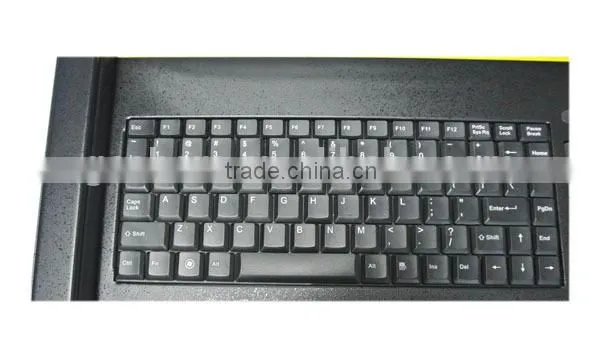

l LCD display/Touchpad mouse/104 Keyboard with Digital Zone/E-Switch.
l Excellent video effects, the best resolution is up to 1024*768 @ 75HZ.
l Support DDC2B.can detect the screen model without switching the computer.
l PS/2 keyboard and mouse are connected to control computer.
Specifications:
Model: |
KVM-GS1504M |
KVM-GS1508M |
KVM-GS1516M |
|||
Computer Connections: |
Direct 4, Max: 128 |
Direct 8, Max: 256 |
Direct 16, Max: 512 |
|||
Cable port: |

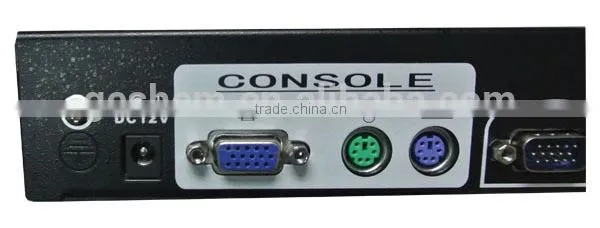

D-SUB15 (LCD, PS/2&USB keyboard, mouse).OSD switch Support. |
|||||
LEDs port |
4 |
8 |
16 |
|||
Switch mode: |
Hotkey, OSD menu |
|||||
Computer connectors |
4 |
8 |
16 |
|||
Switch Scan Time: |
1-255 second (OSD adjustable) |
|||||
LCD |
Size |
15" TFT LCD |
||||
Resolution |
1024*768 |
|||||
lor |
16.7M |
|||||
Brightness |
300 cd/m2 |
|||||
Contrast ratio |
700:1 |
|||||
Pixel Pitch |
0.297 mm x 0.297 mm |
|||||
Keyboard/Mouse |
104 Mechanical mute Keyboard Touchpad |
|||||
Power Input |
AC100-240V 47-63Hz, 35W |
|||||
Cabinet Material |
high-strength and Anti-corrosive steel plate |
|||||
Color |
Insulated black paint (optional) |
|||||
Dimension ( L x W x H ) |
546mm*480mm*44mm |
|||||
Gross Weight |
21.5-26.3KG |
|||||
For Cabinet |
800-1040mm |
|||||
Operating Temp |
-10℃~60℃ |
|||||
Storage Temp |
-30℃~70℃ |
|||||
Humidity: |
0%-80%RH |
|||||
Certificate: |
CCC, FCC, CE |
|||||
Ordering information
KVM-GS1504M |
1U Rack mount 15" TFT LCD/4 port KVM switch/ 12V power supply/ PSII&USB cable. |
KVM-GS1508M |
1U Rack mount 15" TFT LCD/ 8 port KVM switch/ 12 V power supply/ PSII&USB cable. |
KVM-GS1516M |
1U Rack mount 15" TFT LCD/16 port KVM switch/ 12V power supply/ PSII&USB cable. |
Founded in 2008, Shenzhen Geshem Technology is one of the major design and manufacturing companies in the industrial computer and embedded field. Our company has earned ISO 9001:2008 certification, and our products have passed CE, FCC, RoHs compliance testing by independent labs. We have offices in Germany, India, one agent in Iran, and three offices in China. The head office is in Shenzhen.
Android industrial panel pc: PPC-GS1091T Available size: 7"/8"/10"/12"
Industrial panel pc: PPC-GS1201T:
Available size: 8"/10"/12"/15"/17"/19" Available CPU: Intel Atom N2600, N2800, D525, Bay Trail J1900, i3/i5/i7/ Celeron 1037U
Rugged Full IP 65 industrial panel PC: PPC-GS1504TI:
fanless embedded mini pc: PC-GS3051A:
Available CPU: Haswell/i3/i5/i7/Bay Trail J1900/ N2930/ D525/N2600/ N2800
Contact information:
Shenzhen Geshem Technology Co.,Ltd
Sales representitive: Jenney song
Telephone number: 0086-755-86166629 Ext.8012
Skype: jenney_12
Website:
Address: M area, 8F, No.3011 Shahe west Road, Nanshan District, Shenzhen, Guangdong, China.
