Specifications

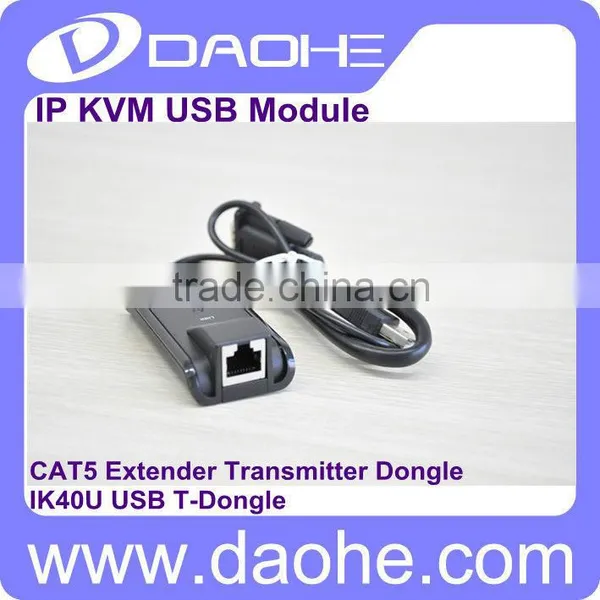

Connect your computer to IP KVM Switchaas RJ-45 Port using a PS/2 Transmitter Dongle (IK40P) or a USB Transmitter Dongle (IK40U)Name of commodity: CAT5 Extender Transmitter Dongle IK40U USB T-Dongle
Model: IK40U
Introduction

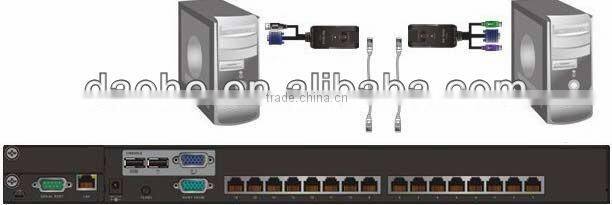

Connect your computer to IP KVM Switch’s RJ-45 Port using a PS/2 Transmitter Dongle (IK40P) or a USB Transmitter Dongle (IK40U).

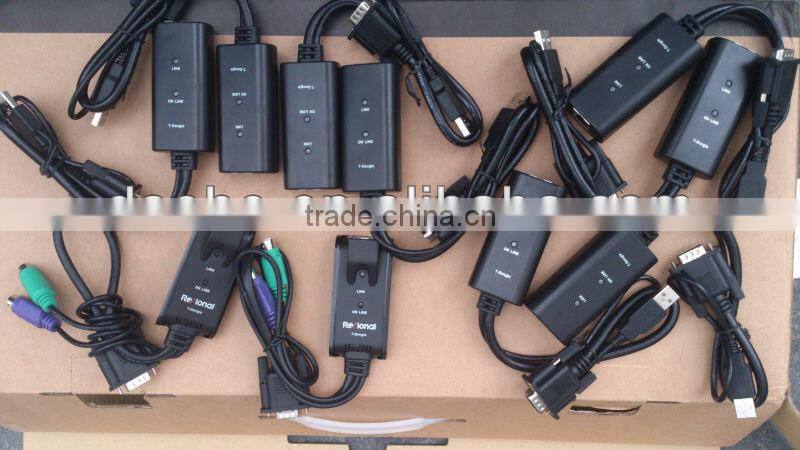

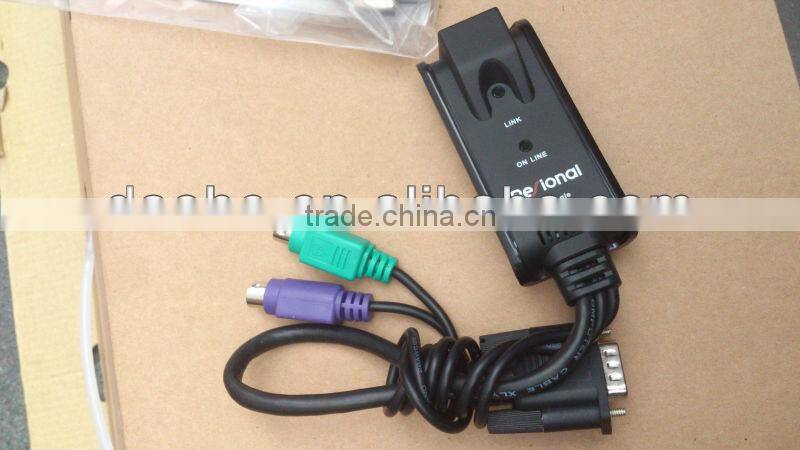

♦ PS/2 Computer (works with IK40P): Connect the DB-15 connector to the computer’s VGA Port and connect keyboard connector and mouse connector to computer’s keyboard port and mouse port respectively.

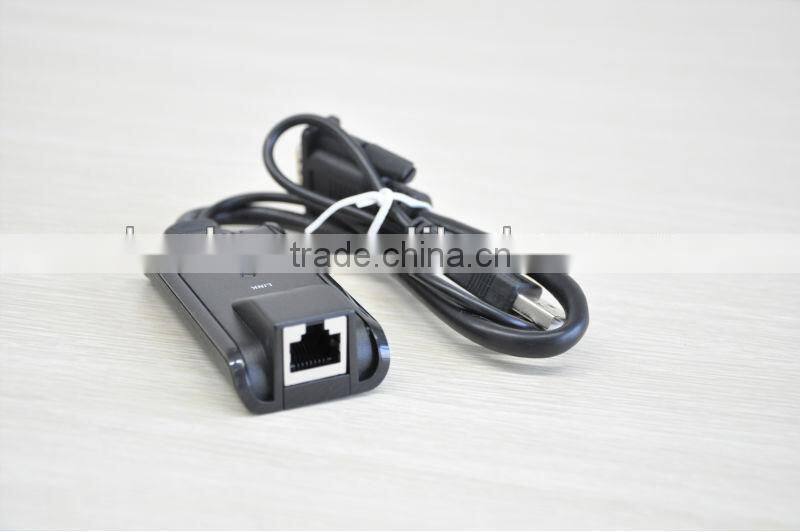

♦ USB Computer (works with IK40U): Connect the DB-15 connector to the computer’s VGA Port and connect USB connector to the computer’s USB port.
Specifications

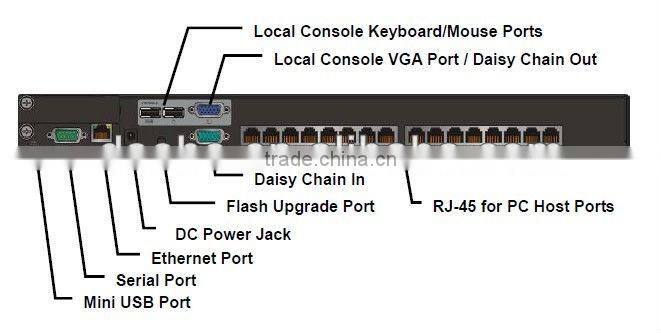

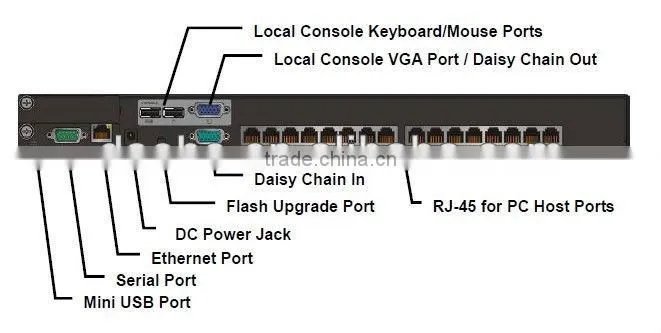

KVM Switch
Host Port Connector |
RJ-45 |
Host Ports |
32 |
Local Console Type |
USB |
Console Type |
PS/2 or USB |
|
Max. Distance (KVM Switch -- Host) |
16 feet (5m) |
|
Video Resolution (Local Console) |
1920 x 1440 |
Flash Port |
DC2.5F |
Daisy Chain |
Connector DB15 (Female Type) |
Support daisy chaining up to 8 layers | |
Computers Selection |
On Screen Display (OSD) Menu, Hotkey, Push Button |
Hotkey |
Provide various Hotkey (Scroll-Lock/ Caps-Lock/ Num-Lock/ Alt/ Ctrl/ Win) |
Computer Port LEDs |
Bio-Color LEDs for each host port: ON LINE (Yellow), SATATION (Red) |
7-Segment LED |
1 for Bank display |
Security |
Provide ACL (Access Control List) security function, store up to 8 independent ACL’s of controllable computer lists |
|
Multilingual OSD (On Screen Display) |
8 languages (English, France, Germen, Spanish, Italian, Russian, Japanese, Simplified Chinese) |
Auto-Scan Intervals |
5 ~ 99 Sec. |
Keyboard Emulation |
USB |
Mouse Emulation |
USB |
Max. Connected Computers via Daisy Chaining |
Up to 256 computers (32-port model * 8 layers) |
Housing Material |
Metal |
DC Power Adapter |
12V, 1A |
Operation Temperature |
0 ~ 50 °C |
Storage Temperature |
-20 ~ 60 °C |
Humidity |
0~80%, Non-Condensing |
Mechanical |
19” Rackmount, 1U |
Dimension (mm) |
444.5 x 190 x 44 |
