Help CenterW24S-45 Portable Stainless Pipe Bending Machine
Related Products
-
W24S-45 Electrical Pipe Bender MachinesUS$ 17,800 - 20,000MOQ: 1 Set -
W24S-45 H Beam Rolling MachineUS$ 17,800 - 20,000MOQ: 1 Set
-
W24s Series Tube Bending MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
W24s Series Bending Machine for Square PipeUS$ 20,000 - 80,000MOQ: 1 Set
-
W24S-45 Pipes Bending MachineUS$ 20,000 - 30,000MOQ: 1 Set
Specifications
portable stainless pipe bending machine1.channel steel
2. joist steel
3.flat steel
4.square steel and round steel etc
| Place of Origin: | Jiangsu China (Mainland) | Brand Name: | Haiwei | Model Number: | W24s |
| Machine Type: | Section bendng machine | Raw Material: | Sections /Rolling | Material / Metal Processed: | Carbon Steel/S.S/M.s |
| Power: | Hydraulic | Automation: | Automatic | Certification: | ISO 9001:2000.SGS.BV |
| Extra Services: | End Forming | Exported to Countries: | Russia,Agentina,india and soon | Color: | on request |
| Control system: | CNC/NC/PLC | Electric: | SIEMENS | Bearing: | NOK |
| USE1: | pre-bending | USE2: | arc-rolling | USE3: | record process |
| PLC: | Ormon | Touch Screem: | Delta |

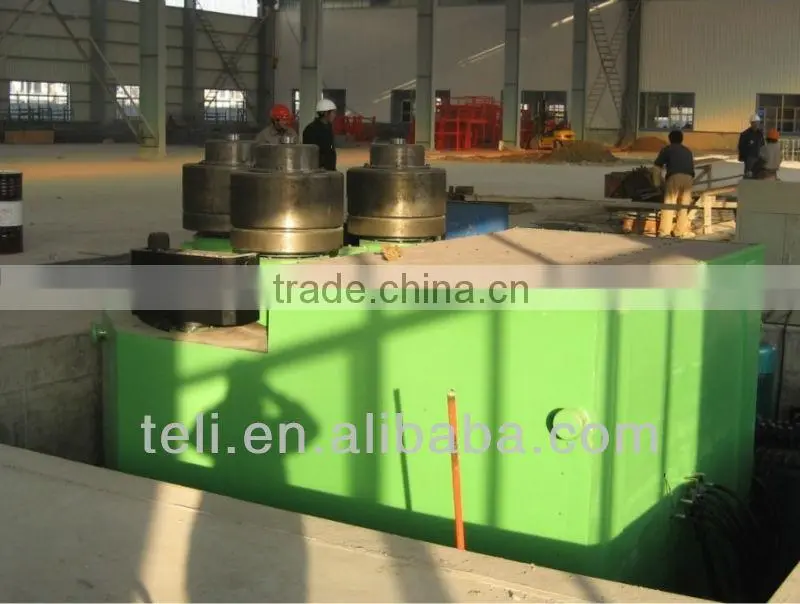

W24S-45 portable stainless pipe bending machine
model |
W24S-75 Section Bending Machine |
|
Max. ant-bending section modulus of profile |
45cm3 |
|
yield limit of profile |
σs=250MPa |
|
Angel steel internal |
Max section |
75*75*10mm |
Minimum bending diameter |
1200mm |
|
Minimum section |
35*35*3mm |
|
Minimum bending diameter |
560mm |
|
Angel steel external |
Max section |
100*100*10mm |
Minimum bending diameter |
1100mm |
|
Minimum section |
35*35*3mm |
|
Minimum bending diameter |
800mm |
|
|
Channel steel external
|
Channel steel type |
16mm |
Minimum bending diameter |
1000mm |
|
|
Channel steel internal
|
Channel steel type |
16 |
Minimum bending diameter |
1000mm |
|
|
Flat steel vertical bending
|
Max section |
180*25mm |
Minimum bending diameter |
900mm |
|
Flat steel plane-bending |
Max section |
90*20mm |
Minimum bending diameter |
900mm |
|
|

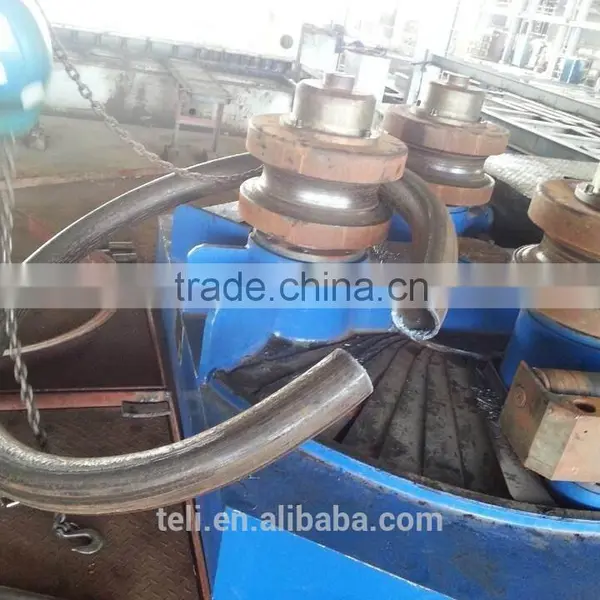

Steel pipe bending
|
Max section |
Φ89*5mm |
Minimum bending diameter |
700mm |
|
Bending speed |
4 m/min |
|
Climb and Fall velocity of side roll |
180-200 mm/min |
|
Operating pressure of hydraulic system |
16MPa |
|
Profile bending machine is a new kind of bending equipment which is introduced from Italy technology by our company, by changing different mould, this machine can bend various kind of steel profile such as angel steel, channel steel, joist steel, flat steel, square steel and round steel. This machine can complete circle-rolling and circle-checking procedures at one time which are widely used in oil industry, chemical industry, hydropower, shipbuilding industry and machinery manufacture industry.
Three work roll are major pinch roll, two side roll can make arc vertical movement around fixed center of gyration, There are roll-lift device on the both sides of work roll which can assure the quality of asymmetry section bending profile. This machine is advanced profile equipment currently at home and abroad with advance structure and reliable operation. Advance structural general or special mold can be configured by the machine, this machine is with convenient operation, high efficiency and great popularity.
