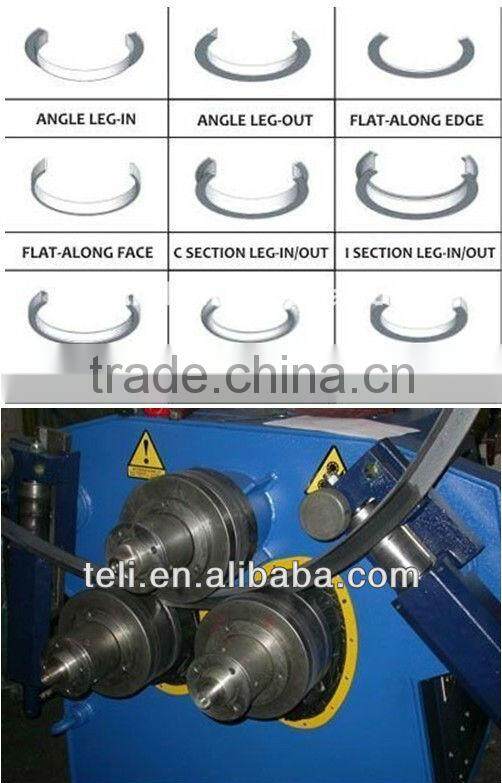

W24s series tube bending machine1.channel steel
2. joist steel
3.flat steel
4.square steel and round steel etc
| Place of Origin: | Jiangsu China (Mainland) | Brand Name: | Haiwei | Model Number: | W24s |
| Machine Type: | Section bendng machine | Raw Material: | Sections /Rolling | Material / Metal Processed: | Carbon Steel/S.S/M.s |
| Power: | Hydraulic | Automation: | Automatic | Certification: | ISO 9001:2000.SGS.BV |
| Extra Services: | End Forming | Exported to Countries: | Russia,Agentina,india and soon | Color: | on request |
| Control system: | CNC/NC/PLC | Electric: | SIEMENS | Bearing: | NOK |
| USE1: | pre-bending | USE2: | arc-rolling | USE3: | record process |
| PLC: | Ormon | Touch Screem: | Delta |

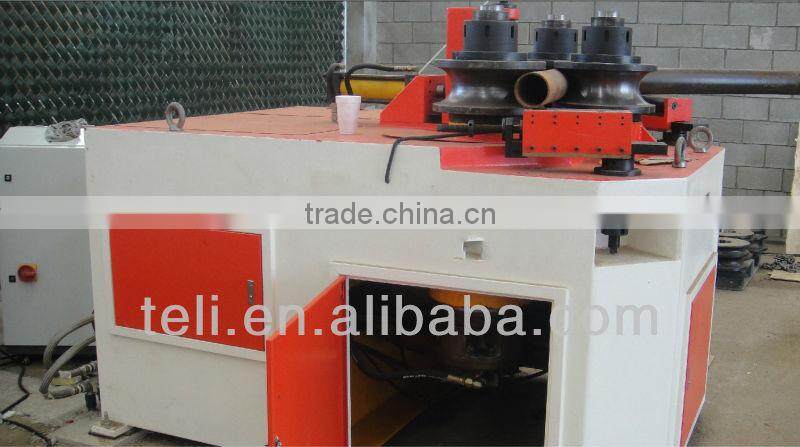

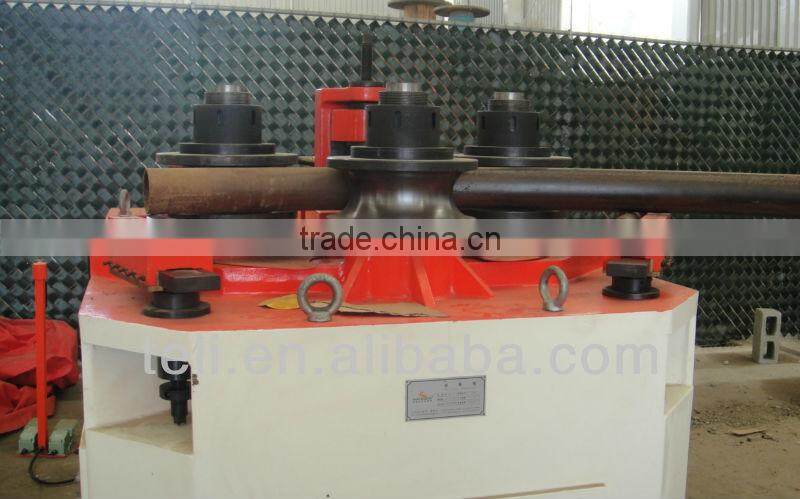

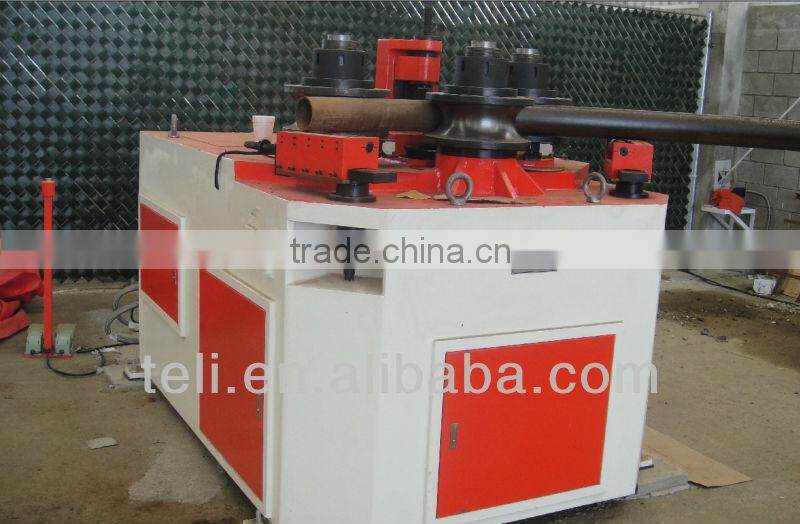

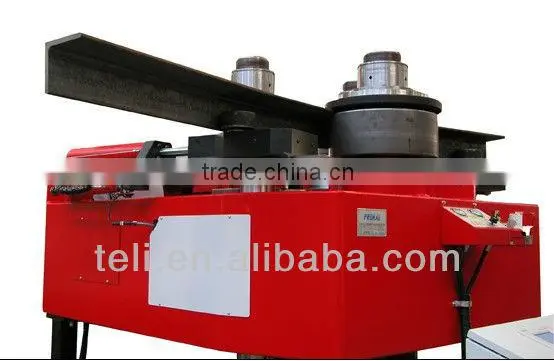

W24s series tube bending machine

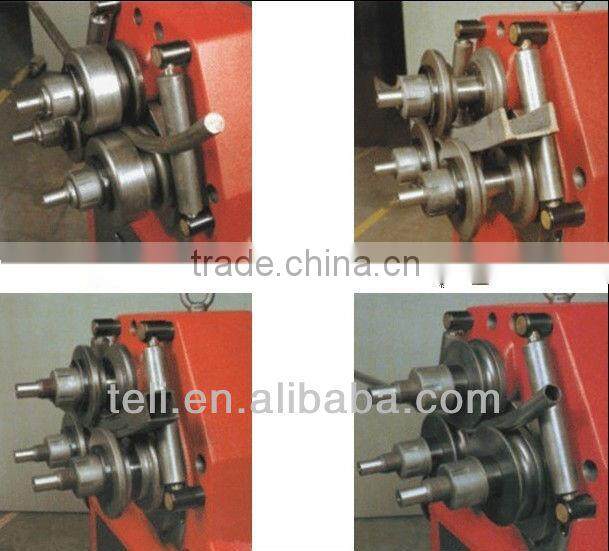

Profile bending machine is a new kind of bending equipment which is introduced from Italy technology by our company, by changing different mould, this machine can bend various kind of steel profile such as angel steel, channel steel, joist steel, flat steel, square steel and round steel. This machine can complete circle-rolling and circle-checking procedures at one time which are widely used in oil industry, chemical industry, hydropower, shipbuilding industry and machinery manufacture industry.

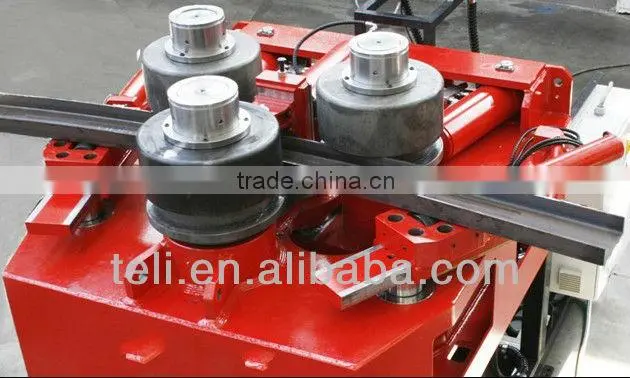

Three work roll are major pinch roll, two side roll can make arc vertical movement around fixed center of gyration, There are roll-lift device on the both sides of work roll which can assure the quality of asymmetry section bending profile. This machine is advanced profile equipment currently at home and abroad with advance structure and reliable operation. Advance structural general or special mold can be configured by the machine, this machine is with convenient operation, high efficiency and great popularity.
| Technical parameters | W24S | |||||
| 6 | 16 | 30 | 45 | 75 | 100 | |
| Flexural modulus of the largest cross-section profiles | 6 | 16 | 30 | 45 | 75 | 100 |
| Coiling speed(m/min) | 6 | 5 | ||||
| Yielding Limit of Sheet Metal(mpa) | S=250 | |||||
| Maximum cross section(mm) | 40×5 | 70×8 | 80×8 | 90×10 | 100×10 | 120×12 |
| Minimum bending diameter(mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2500 |
| Minimum cross section(mm) | 20×3 | 30×3 | 35×3 | 36×5 | 38×4 | 40×5 |
| Minimum bending diameter(mm) | 400 | 550 | 560 | 600 | 600 | 720 |
| Maximum cross section(mm) | 50×5 | 80×8 | 90×10 | 100×10 | 120×12 | 140×16 |
| Minimum bending diameter(mm) | 800 | 1000 | 1100 | 1300 | 1600 | 1800 |
| Minimum cross section(mm) | 20×3 | 30×3 | 35×3 | 36×5 | 38×4 | 45×5 |
| Minimum bending diameter(mm) | 400 | 550 | 500 | 600 | 700 | 760 |
| Channel model | 8 | 12 | 16 | 20 | 25 | 28 |
| Minimum bending diameter(mm) | 600 | 800 | 800 | 1000 | 1100 | 1700 |
| Channel model | 8 | 12 | 16 | 20 | 25 | 28 |
| Minimum bending diameter(mm) | 700 | 900 | 1000 | 1150 | 1600 | 1700 |
| Maximum cross section(mm) | 100×18 | 150×25 | 180×25 | 200×30 | 220×40 | 250×40 |
| Minimum bending diameter(mm) | 600 | 700 | 800 | 900 | 1000 | 1200 |
| Maximum cross section(mm) | 50×12 | 75×16 | 90×20 | 100×25 | 110×40 | 120×40 |
| Minimum bending diameter(mm) | 500 | 760 | 800 | 1000 | 1100 | 1300 |
| Maximum cross section(mm) | 42×4 | 76×4.5 | 89×5 | 89×8 | 114×5 | 159×5 |
| Minimum bending diameter(mm) | 500 | 750 | 900 | 900 | 1200 | 2000 |
| Maximum cross section(mm) | 38 | 52 | 62 | 75 | 85 | 90 |
| Minimum bending diameter(mm) | 450 | 600 | 600 | 800 | 1000 | 1100 |
| Maximum cross section(mm) | 45×3 | 60×4 | 70×4 | 80×6 | 90×8 | 100×10 |
| Minimum bending diameter(mm) | 750 | 900 | 1000 | 1200 | 1600 | 2000 |
