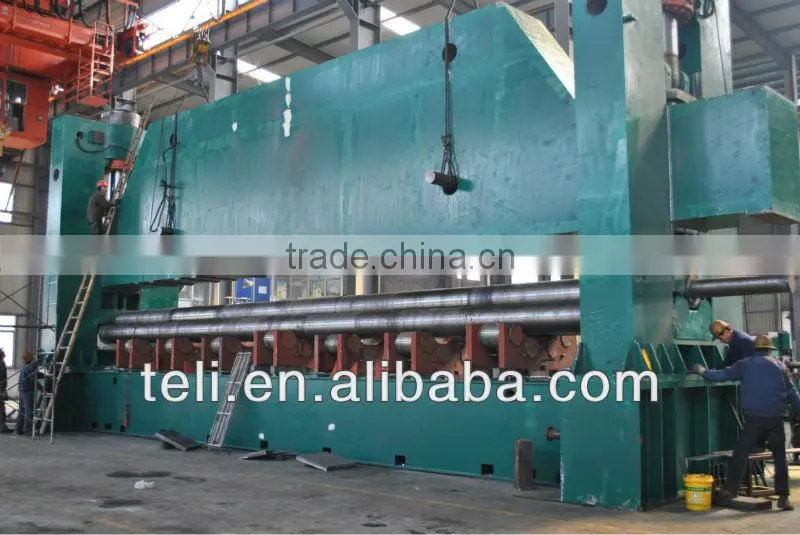

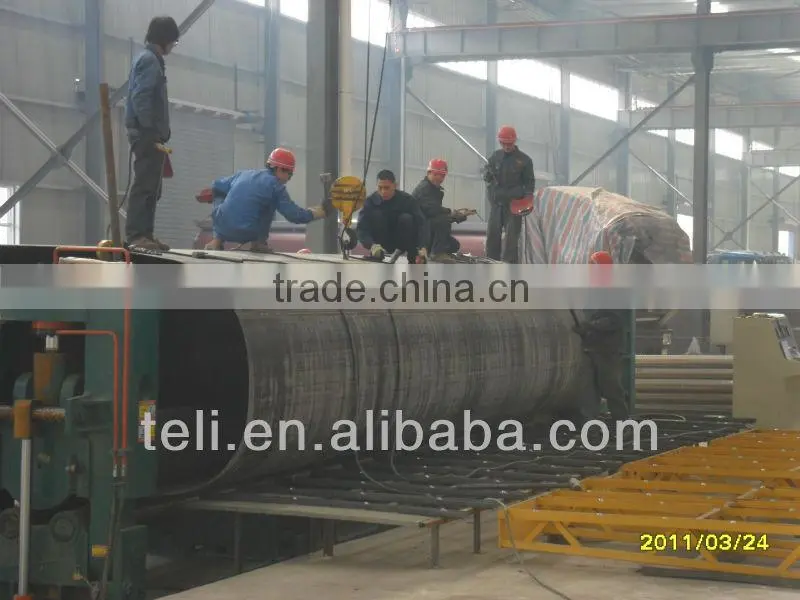

plate rolling machine for ships.1, fit with Japan advanced hydraulic system.
2,the machine is fit for bending the work-piece
Machine model | W11-30×12500 |
Max pressure applied on top roller | 1100Tons |
Diameter of top roll | Φ460mm(42CrMo) |
Diameter of bottom roll | Φ420mm(42CrMo) |
Distance between two bottom rolls | 650mm |
Diameter of upper support rolls | Φ360mm |
Diameter of nether support rolls | Φ320mm |
Number of support rolls | 7 groups |
plate bending speed | About 3.5m/min |
Max width of coiled plate | 12500mm |
Working length of rolls | 126000mm |
Pressing speed of top roll | 150mm/min |
Max stroke of top roll | 410mm |
Capacity of bending plate | T30*B12000*R1000mm (σS≤345MPa) |
working pressure of hydraulic system | 19.5MPa(Max) |
Main motor | 110KW |
Hydraulic motor | 45KW |
Power supply | 380V/50Hz |
This machine mainly composed by machine frame, top roll part, bottom roll part, nether support roll device, main transmission device, chassis, feeding and correcting device ,hydraulic system, electrical system and other components.
3-1 ,
3-1 machine frame
Machine frame is steel welded box-shaped structure, with good bending rigidity.
3-2 top roll device
Top roll part mainly composed of main cylinder, beam, bearing base, top roll, upper support roll and so on. 1100Tons ,
Two main cylinders provide pressure 1100Tons to bend plate. Cylinders’ working pressure is 19.5MPa. Box-shaped beam structure welded with steel plate, good bending stiffness. 5 groups upper support rolls arranged under the beam prevent top roll having a big deflection in the load condition. The installation of double-row roller bearing double row self-aligning bearings to reduce friction resistance, the position on the roller by the roller bearing mounted on the side of
