Home > Electrical & Electronics > Breaker & Protector > Fuse Block & Holder > 35KV Fuse Cutout

35KV Fuse Cutout

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

GEM

Model Number:

GEM

Contact Supplier Request Quote Chat Now

Liaoning Mec Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name GEM

Model Number GEM

Type Fuse Cutout

Specifications

35KV Fuse Cutout has good flexibility, the application of the characteristics, easy installation, long service life.

Product Description

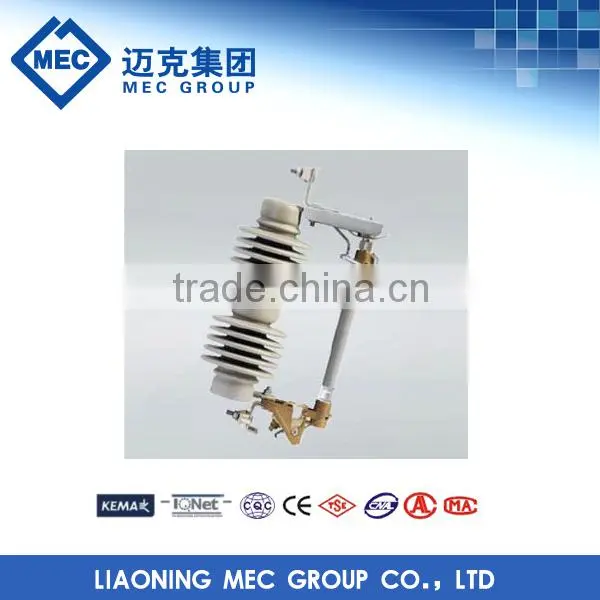

35KV Fuse Cutout

RW20-15 type provides safe and reliable industrial over-current protection of long history. It may be due to the design of system load or malfunction caused damage condition of current protection equipment.

Besides, RW20-15 type has good flexibility, the application of the characteristics, easy installation, long service life and trouble-free operation etc.

Technology parameter

Rated voltage (KV)	BIL (KV)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F^R(mm)	Leakage distance (mm)	Weight (kg)
12(15)	125	331.4	169.3	202.4	462.8	124.9	412.8	325.1	6.58
24(27)	125	341.4	179.3	202.4	462.8	134.9	412.8	325.1	6.58
24(27)	150	341.4	179.3	202.4	462.8	134.9	412.8	457.2	9.08
27(33)	200	435.1	187.5	261.1	548.4	165.1	522.2	665.5	10.1
27(36)	200*	435.1	187.5	261.1	548.4	165.1	522.2	769.6	10.4
