13.2 KV Distribution Transformer

13.2 KV Distribution Transformer thumbnail-1
13.2 KV Distribution Transformer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GEM
Model Number:
S9
Contact Supplier Request Quote Chat Now
Liaoning Mec Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GEM
Model Number S9
Usage Power
Phase Three
Coil Structure Toroidal
Coil Number Other

Specifications

13.2 KV Distribution transformer are suitable for 10KV class, 50HZ and 60HZ distribution system.

13.2KV Distribution Transformer information

Summarization:

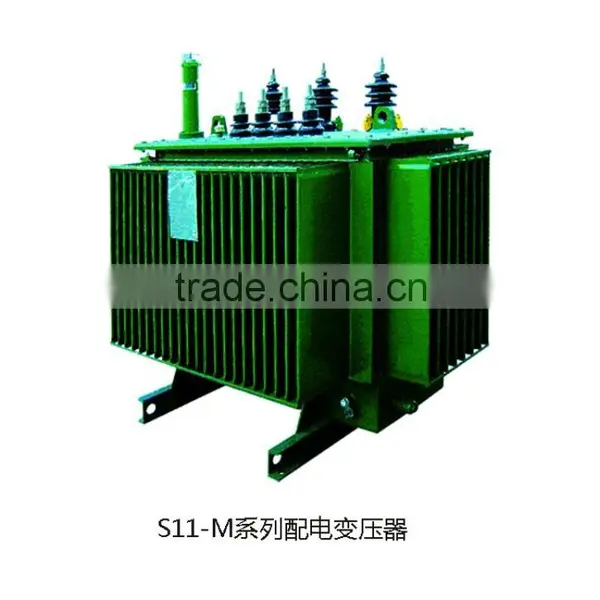

S9 series three phase oil immersed distribution transformer has hermetically sealed type and conservator type. This series (range from 6.3KVA to 2500KVA) are suitable for 10KV class, 50HZ and 60HZ distribution system. It can be widely used in residence, street, factory, countryside lighting and power use.

Technical data for 10KV class S9 series distribution transformers



No

Type

Rated (KVA)

Voltage combination

Vector group

Loss (KW)

No-load current (%)

IMP.VOL (%)

HV (KV)

Tapping range (%)

LV (KV)

No-load loss

Full-load loss

1

S9-6.3

6.3

6

6.3

6.6

10

10.5

11

13.2

±2 X 2.5% or ±3 X 2.5% or ±5%

0.4 or 0.415 or others

Y, yn0 or D, yn11

0.036

0.219

4.0

4.0

2

S9-10

10

0.045

0.306

3.3

4.0

3

S9-15

15

0.060

0.360

2.2

4.0

4

S9-20

20

0.084

0.521

2.2

4.0

5

S9-25

25

0.10

0.577

2.1

4.0

6

S9-30

30

0.13

0.60

2.1

4.0

7

S9-50

50

0.17

0.87

2

4.0

8

S9-63

63

0.20

1.04

1.9

4.0

9

S9-80

80

0.25

1.25

1.8

4.0

10

S9-100

100

0.29

1.50

1.6

4.0

11

S9-125

125

0.34

1.80

1.5

4.0

12

S9-160

160

0.40

2.2

1.4

4.0

13

S9-200

200

0.48

2.6

1.3

4.0

14

S9-250

250

0.56

3.06

1.2

4.0

15

S9-315

315

0.67

3.65

1.1

4.0

16

S9-400

400

0.80

4.3

1

4.0

17

S9-500

500

0.96

5.1

1

4.0

18

S9-630

630

1.15

6.2

0.9

4.5

19

S9-800

800

1.40

7.5

0.8

4.5

20

S9-1000

1000

1.65

10.3

0.7

4.5

21

S9-1250

1250

1.95

12.0

0.6

4.5

22

S9-1600

1600

2.35

14.5

0.6

4.5

23

S9-2000

2000

2.8

17.8

0.6

4.5

24

S9-2500

2500

3.3

20.7

0.5

5.5

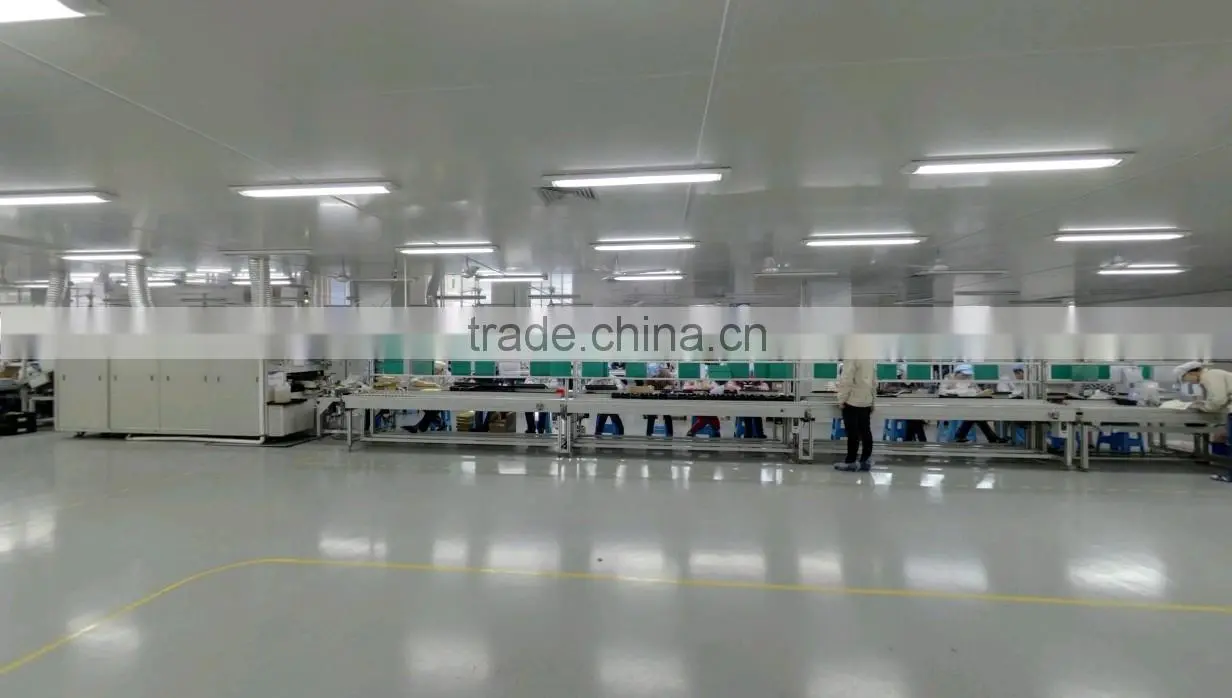

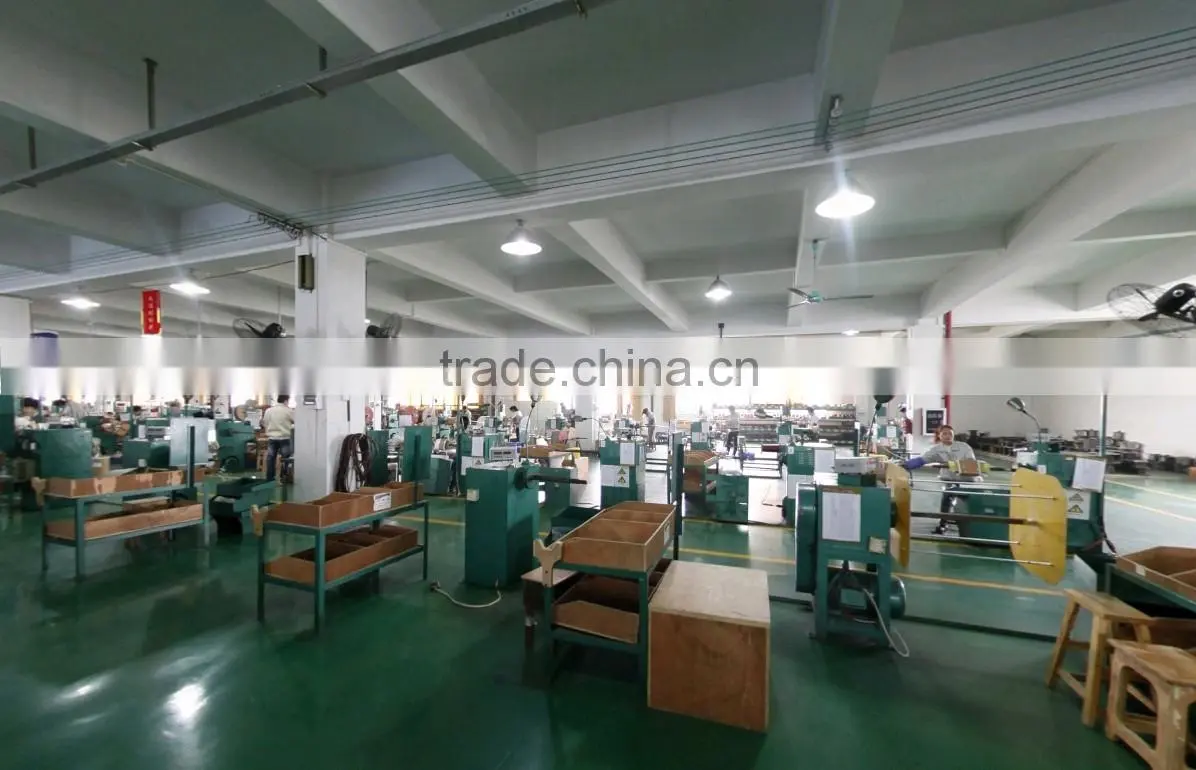

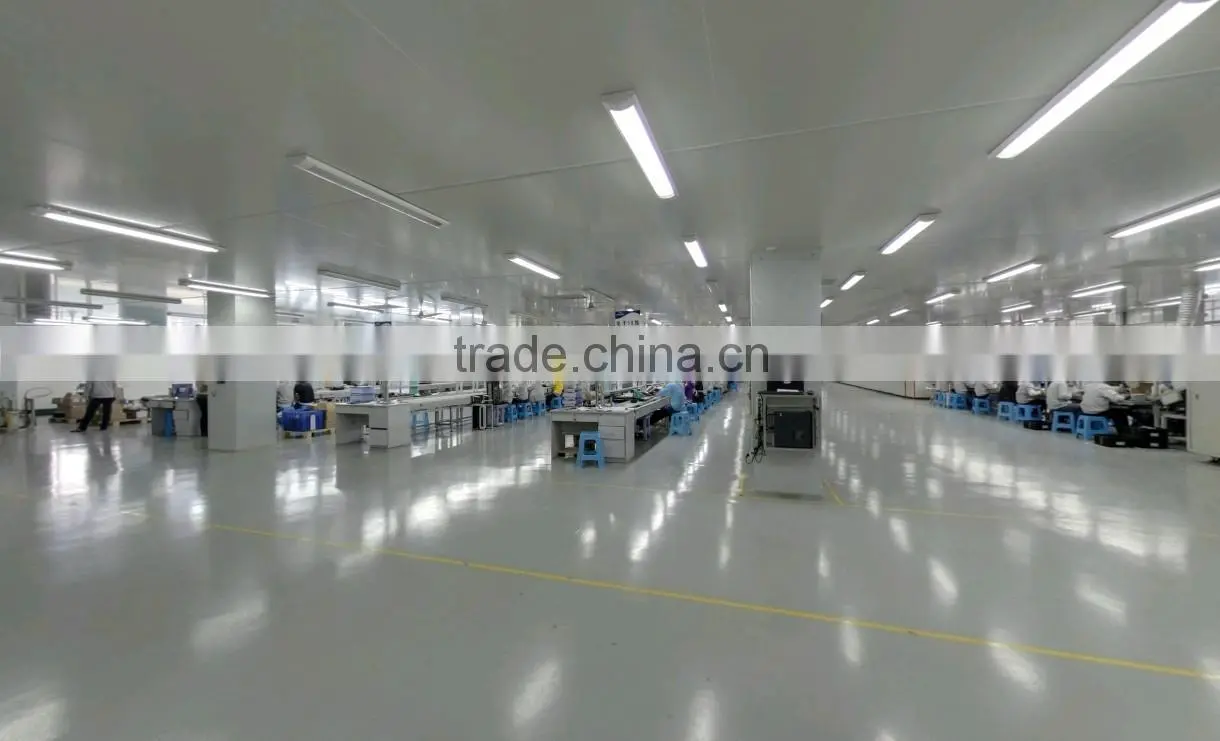

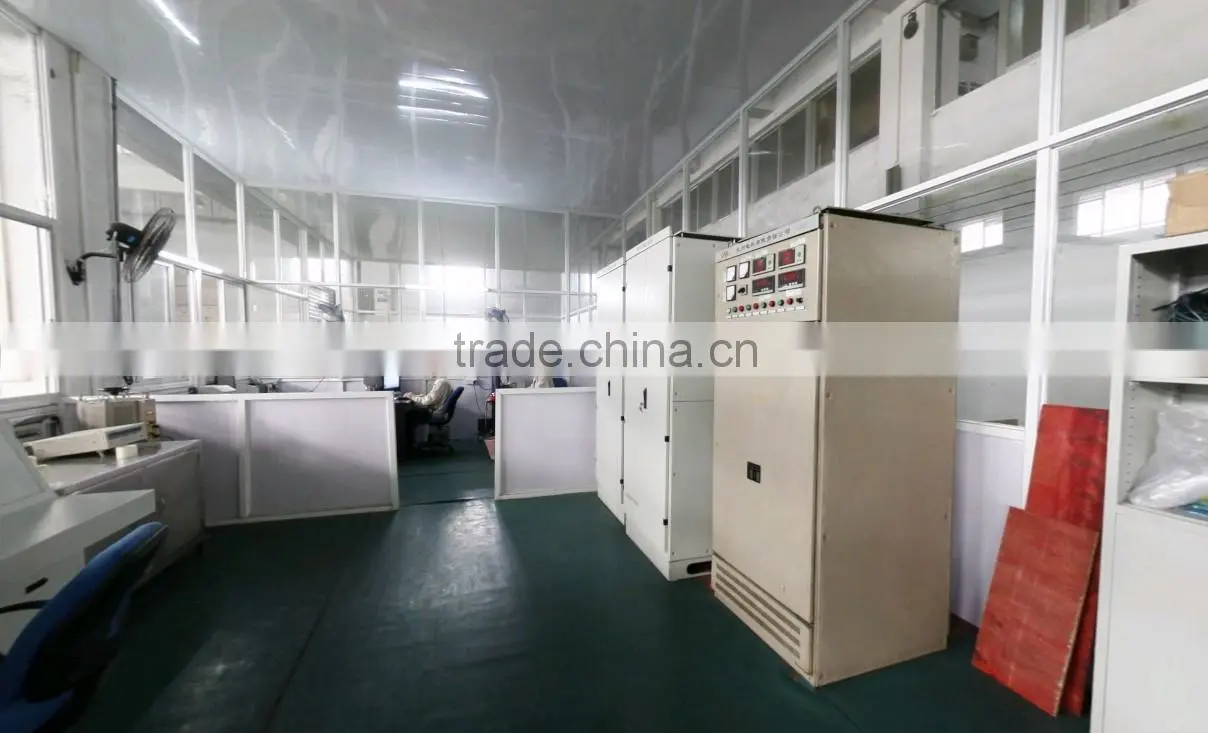

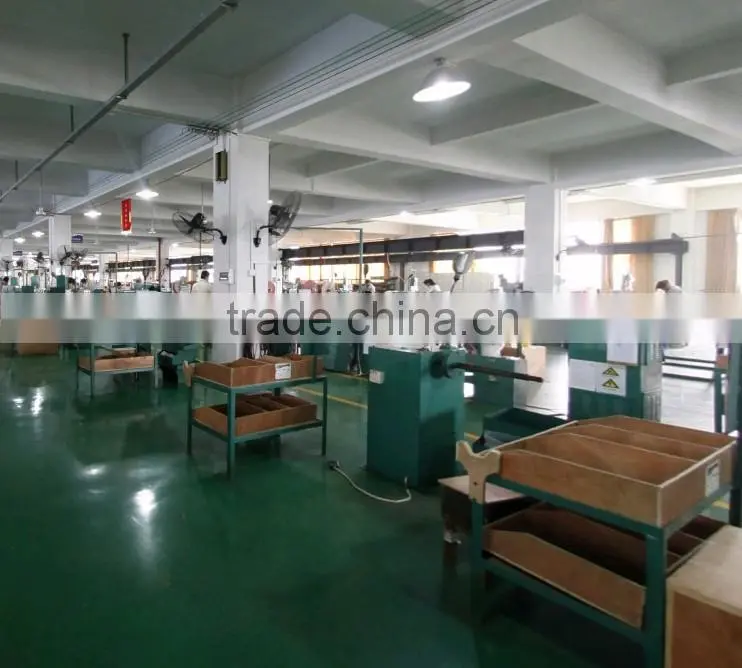

Plant

13.2 KV Distribution transformer13.2 KV Distribution transformer13.2 KV Distribution transformer13.2 KV Distribution transformer13.2 KV Distribution transformer
