220KV Composite Cross- Arm Used Insulators Are Applicable to Urban Power Network Reconstruction wh
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
GEM
Model Number:
GEM
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
GEM
Model Number
GEM
Specifications

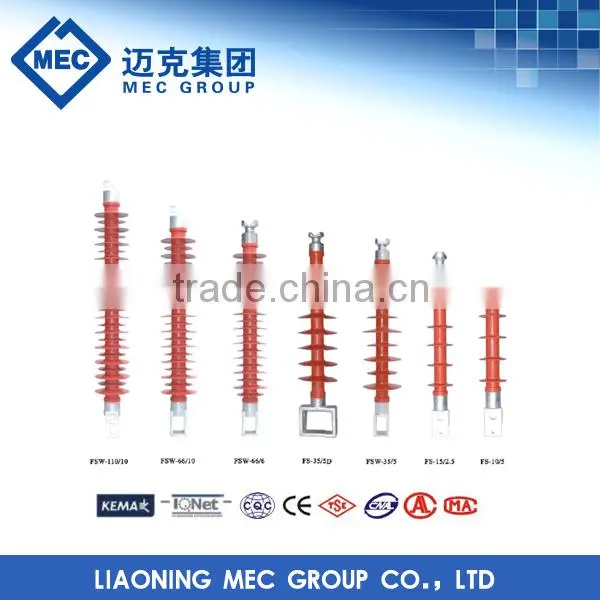

220KV Composite cross- arm used insulators are applicable to urban power network reconstruction where streets are narrow.
220KV Composite cross- arm used insulators are applicable to urban power network reconstruction where streets are narrow. It can take advantage of urban narrow power distribution corridor, lower the necessary height of the pole or tower. With high bending strength, they can avoid rupture accident taken place for porcelain insulators. moreover, they are all good pollution resistance.
| Size and technical data of pin insulators | |||||||
| Type | Central distance between channel and installation hole (mm) | Min. electric arc distance (mm) | Min norminal creepage distance (mm) | Installation hole dismeter (mm) | Rated bent withstand load (KN) | 1 min power frequency wet withstand voltage (KV) | Full wave lightning impulse withstand voltage (peak value) (KV) |
| FSW-10/2.5 | 390 | 274 | 362 | 18 | 2.5 | 45 | 165 |
| FSW-10/5 | 400 | 280 | 410 | 18 | 5 | 50 | 185 |
| FSW-35/5 | 620 | 490 | 1060 | 22 | 5 | 100 | 265 |
| FSW-66/10 | 890 | 735 | 1815 | 23 | 6 | 185 | 410 |
| FSW-100/10 | 1240 | 1070 | 3180 | 24 | 10 | 230 | 550 |
