Home > Products > Power Machines and Equipments > 10/36KV dropout fuse cutout

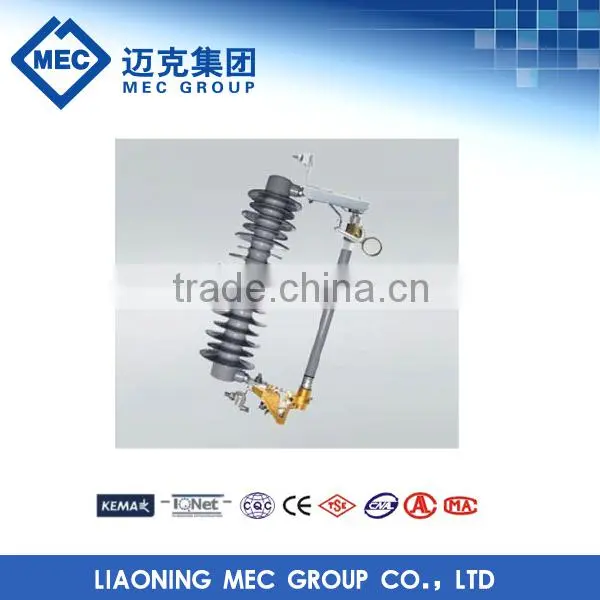

10/36KV dropout fuse cutout
- 60000 Piece / Pieces per Month
- shanghai
- T/T
Product Details
| Place of Origin: | China | Brand Name: | GEM | Model Number: | GEM |
| Type: | Fuse Cutout |
Product Description
Specifications
10/36KV dropout fuse cutout with good flexibility, the application of the characteristics, easy installation, long service life.Dropout Fuse Cutout Information:
10/36KV dropout fuse cutout
RW20-15 type provides safe and reliable industrial over-current protection of long history. It may be due to the design of system load or malfunction caused damage condition of current protection equipment.
Besides, RW20-15 type has good flexibility, the application of the characteristics, easy installation, long service life and trouble-free operation etc.
Technology parameter
Rated voltage (KV) | BIL (KV) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | FR (mm) | Leakage distance (mm) | Weight (kg) |
12(15) | 125 | 331.4 | 169.3 | 202.4 | 462.8 | 124.9 | 412.8 | 325.1 | 6.58 |
24(27) | 125 | 341.4 | 179.3 | 202.4 | 462.8 | 134.9 | 412.8 | 325.1 | 6.58 |
24(27) | 150 | 341.4 | 179.3 | 202.4 | 462.8 | 134.9 | 412.8 | 457.2 | 9.08 |
27(33) | 200 | 435.1 | 187.5 | 261.1 | 548.4 | 165.1 | 522.2 | 665.5 | 10.1 |
27(36) | 200* | 435.1 | 187.5 | 261.1 | 548.4 | 165.1 | 522.2 | 769.6 | 10.4 |
Type | Rated voltage (KV) | Rated current (A) | Breaking current (A) | Impulse voltage (A) | Power-frequency withstand voltage (KV) | Creepage distance (cm) | Weight (kg) | Dimensions (cm) |
GEM1 | 10-15 | 100 | 10000 | 110 | 42 | 250 | 7.0 | 38.5*34.5*10.5 |
GEM1 | 10-15 | 200 | 10000 | 110 | 42 | 250 | 7.0 | 38.5*34.5*10.5 |
GEM2 | 10-15 | 100 | 10000 | 110 | 40 | 250 | 7.0 | 38.5*34.5*10.5 |
GEM2 | 10-15 | 200 | 10000 | 110 | 40 | 250 | 7.0 | 38.5*34.5*10.5 |
GEM3 | 10-15 | 100 | 10000 | 110 | 40 | 260 | 7.5 | 48.5*44*13.5 |
GEM3 | 10-15 | 200 | 12000 | 110 | 40 | 260 | 7.5 | 48.5*44*13.5 |
GEM4 | 15-27 | 100 | 10000 | 125 | 45 | 355 | 8.8 | 51.5*34*12 |
GEM4 | 15-27 | 200 | 12000 | 125 | 45 | 355 | 8.8 | 51.5*34*12 |
GEM5 | 15-27 | 100 | 10000 | 125 | 45 | 350 | 8.5 | 48*35*10.5 |
GEM5 | 15-27 | 200 | 12000 | 125 | 45 | 350 | 8.5 | 48*35*10.5 |
GEM6 | 15 | 100 | 10000 | 110 | 45 | 245 | 3.8 | 45*34*11.5 |
GEM6 | 15 | 200 | 12000 | 110 | 45 | 245 | 3.8 | 45*34*11.5 |
GEM7 | 15-27 | 100 | 10000 | 250 | 45 | 350 | 8.5 | 45*34.5*12 |
GEM7 | 15-27 | 200 | 12000 | 125 | 45 | 350 | 8.5 | 45*34.5*12 |
GEM8 | 10-15 | 100 | 10000 | 110 | 42 | 250 | 7.3 | 38.5*34.5*10.5 |
GEM8 | 10-15 | 200 | 12000 | 110 | 42 | 250 | 7.3 | 38.5*34.5*10.5 |
GEM9 | 24-27 | 100 | 8000 | 150 | 65 | 505 | 12 | 48*34.5*14 |
GEM9 | 24-27 | 150 | 10000 | 150 | 65 | 505 | 12 | 48*34.5*14 |
GEM10 | 24-27 | 100 | 8000 | 150 | 65 | 540 | 12 | 49*35*14 |
GEM10 | 24-27 | 100 | 8000 | 150 | 65 | 540 | 12 | 49*35*14 |
GEM11 | 24 | 100 | 10000 | 150 | 65 | 540 | 4.5 | 51*34*11.5 |
GEM11 | 24 | 200 | 12000 | 150 | 65 | 540 | 4.5 | 51*34*11.5 |
GEM12 | 33 | 100 | 6000 | 170 | 70 | 660 | 15 | 56*38*14.5 |
GEM12 | 33 | 200 | 8000 | 170 | 70 | 660 | 15 | 56*38*14.5 |
GEM13 | 36 | 100 | 10000 | 170 | 70 | 720 | 15.5 | 63*38*14.5 |
GEM13 | 36 | 200 | 12000 | 170 | 70 | 720 | 15.5 | 63*38*14.5 |
GEM14 | 33 | 100 | 8000 | 170 | 70 | 820 | 27.5 | 68*17*15 |
GEM14 | 33 | 100 | 10000 | 170 | 70 | 820 | 27.5 | 68*17*15 |
GEM15 | 36 | 100 | 10000 | 170 | 70 | 720 | 5 | 61*34*11.5 |
GEM15 | 36 | 200 | 12000 | 170 | 70 | 720 | 5 | 61*34*11.5 |
Carton or Wooden case.
